8 Gauge Marine Primary Wire - Tinned Copper

Primary Wire for Marine Boat Automotive and Electronic Projects.

Gauge - 8 Gauge AWG

Outside Diamater - .265"

Stranding - 168 x .010"

Meterial - 100% Tinned Copper

Colors Available - Black, Blue, Red, Yellow & White

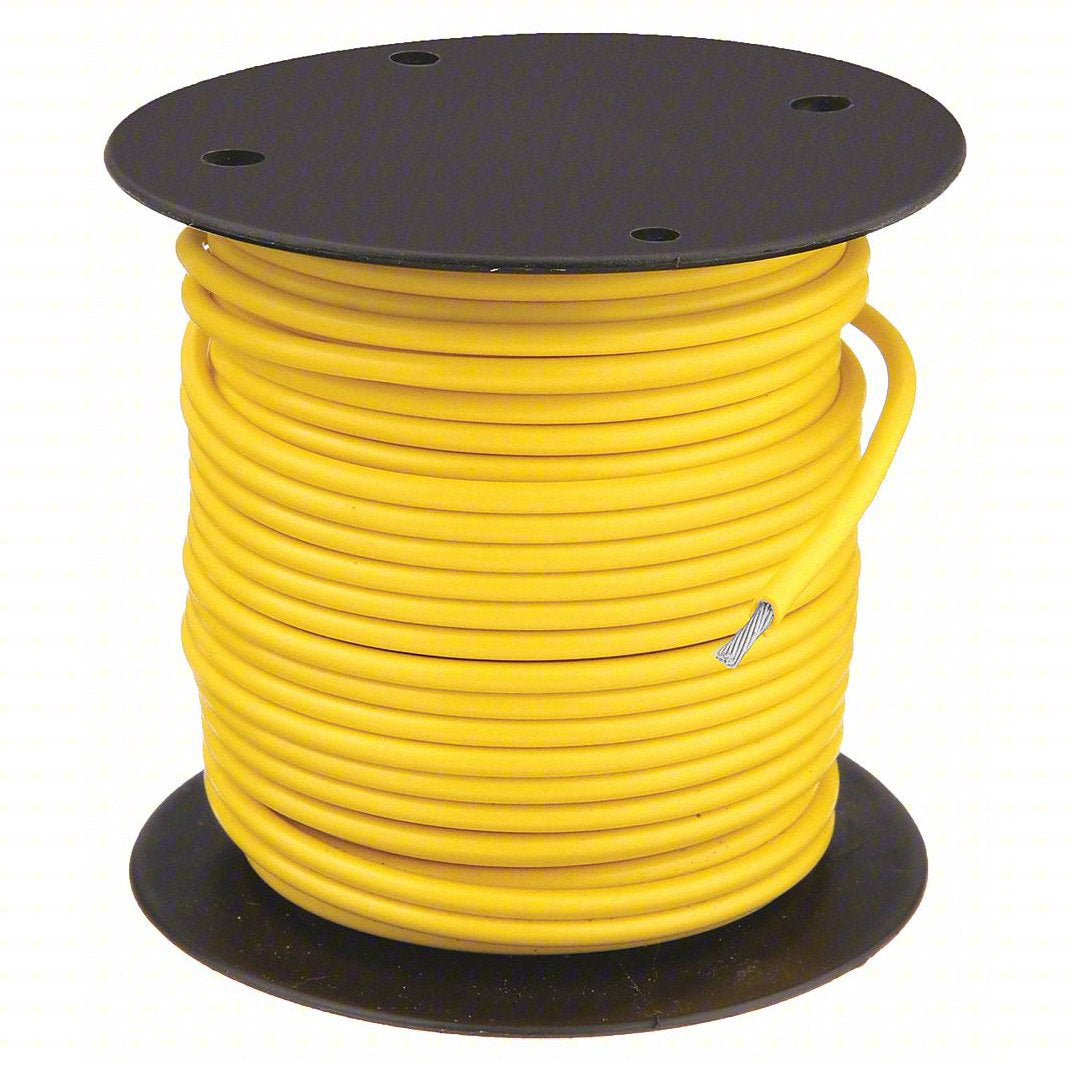

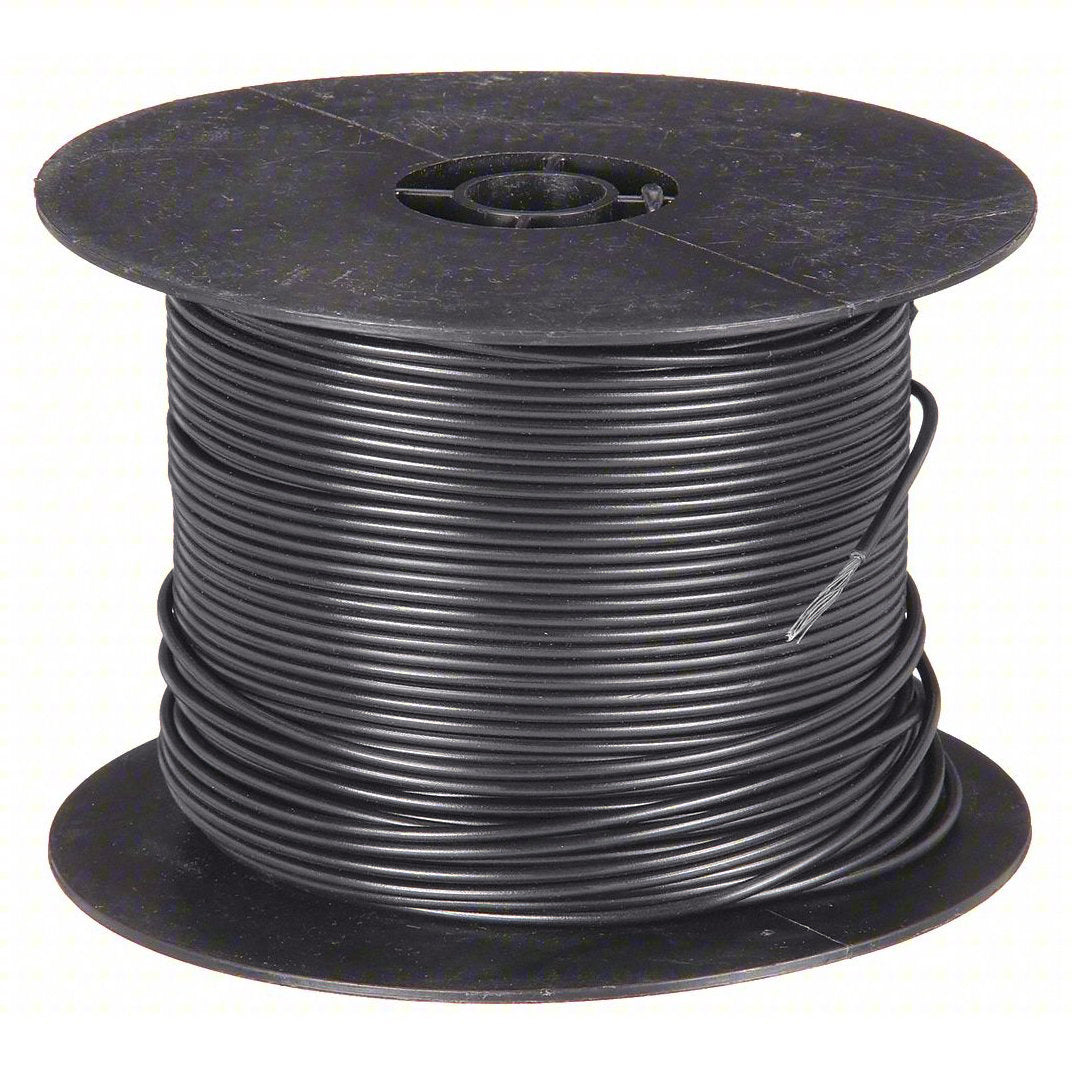

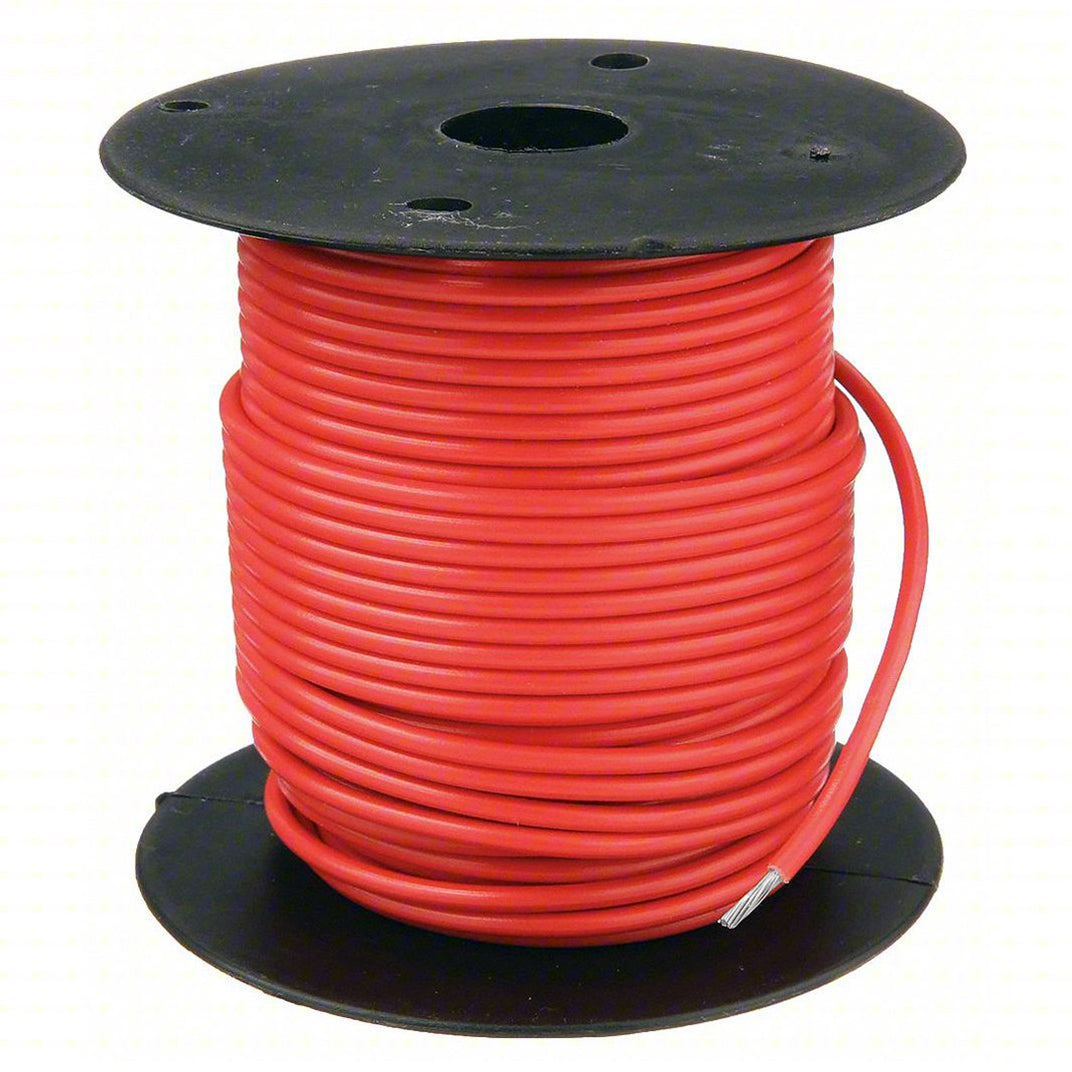

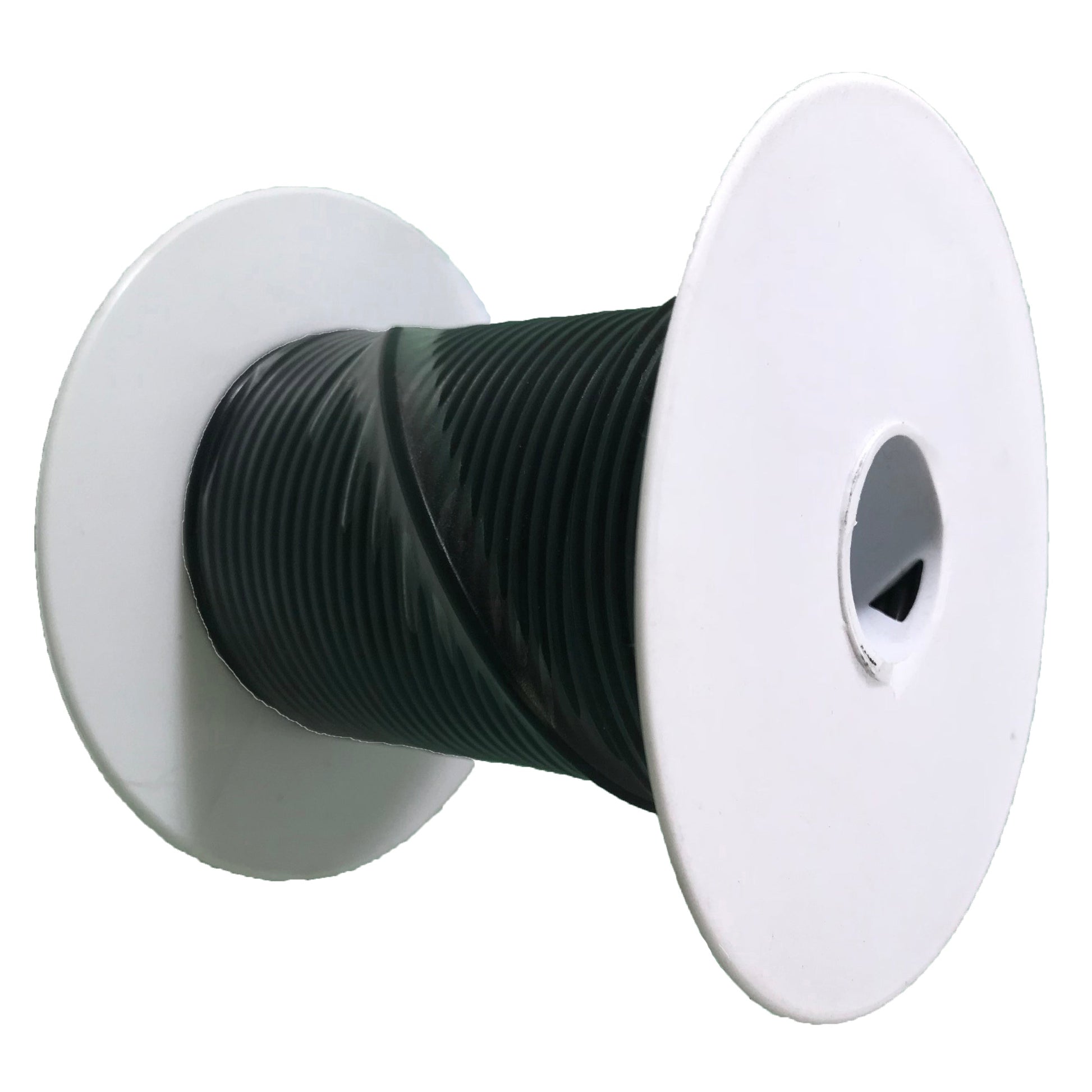

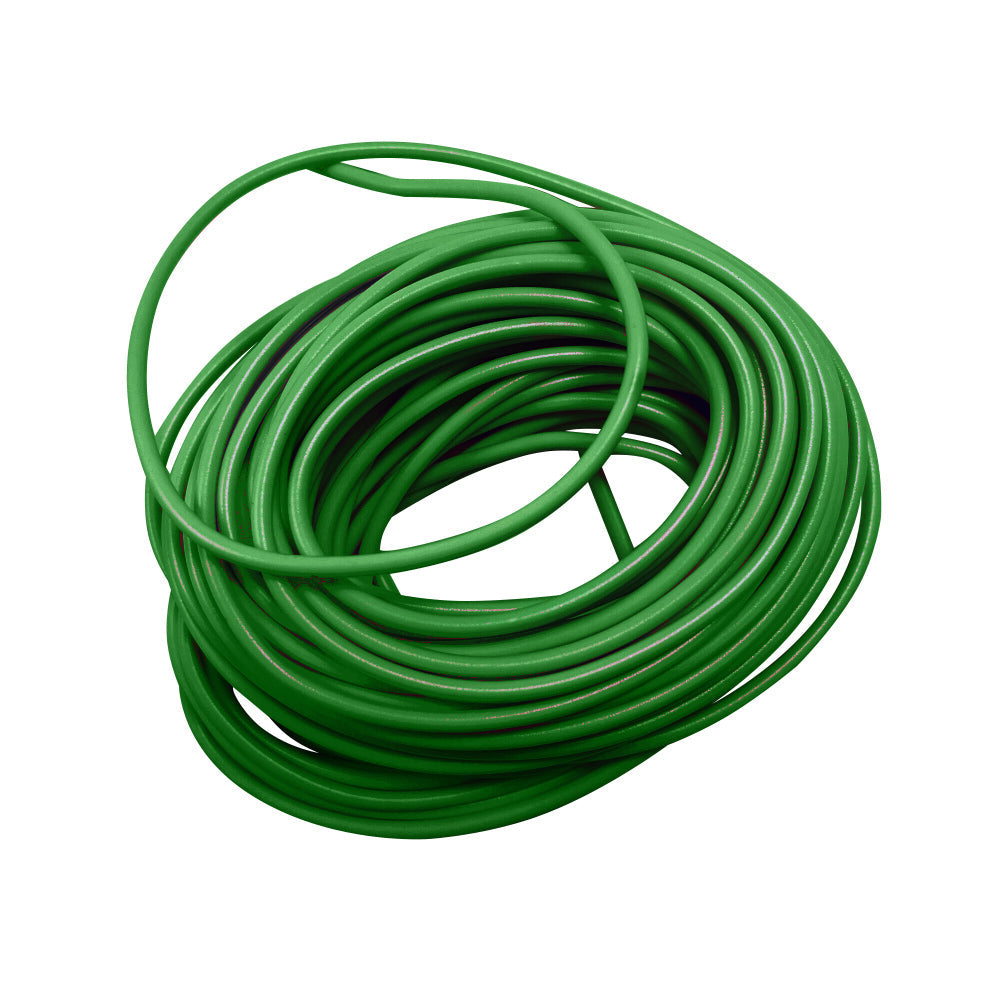

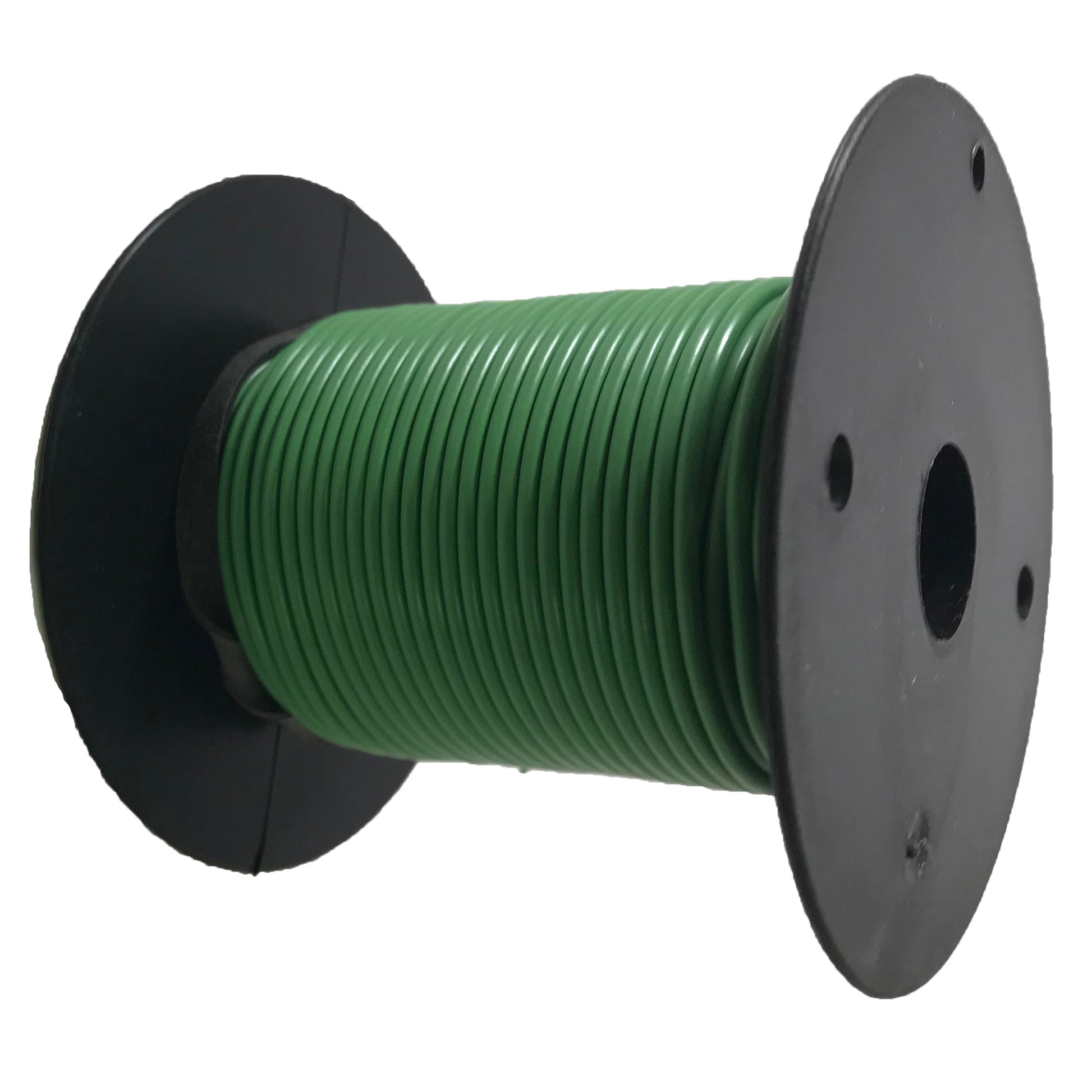

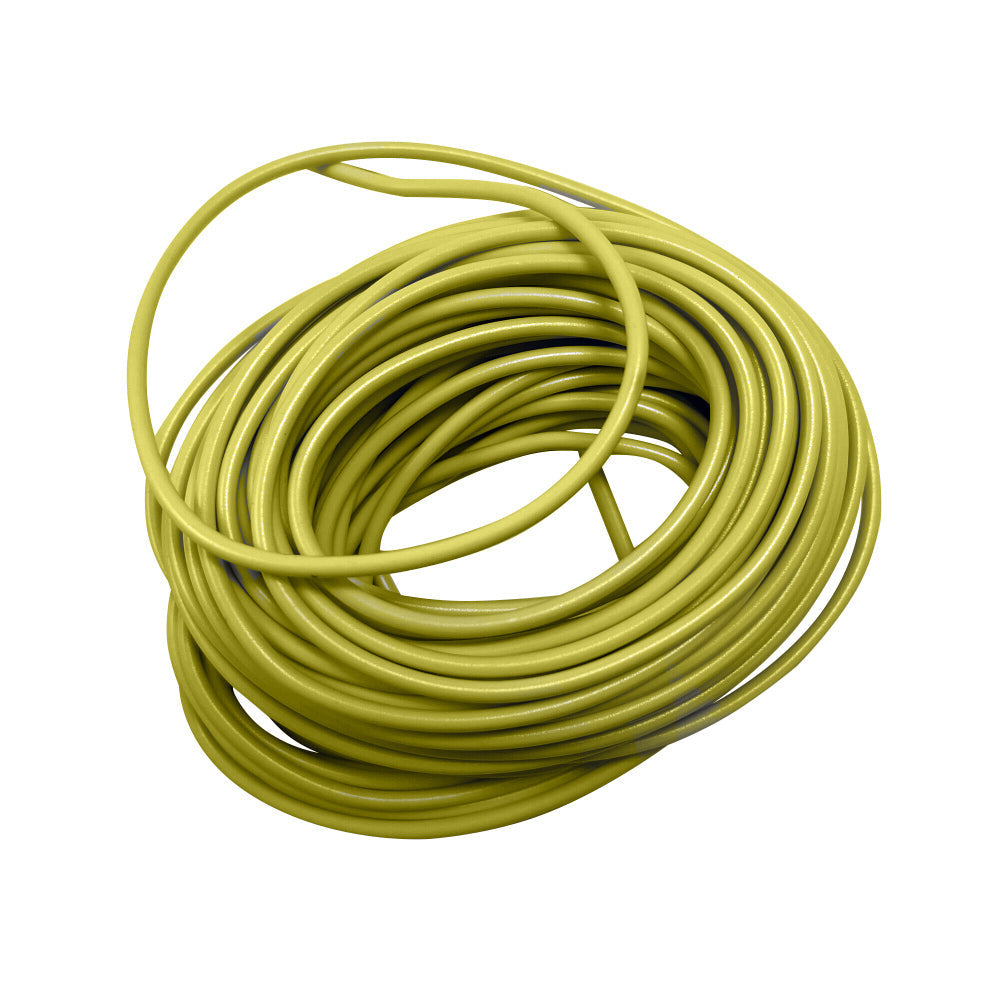

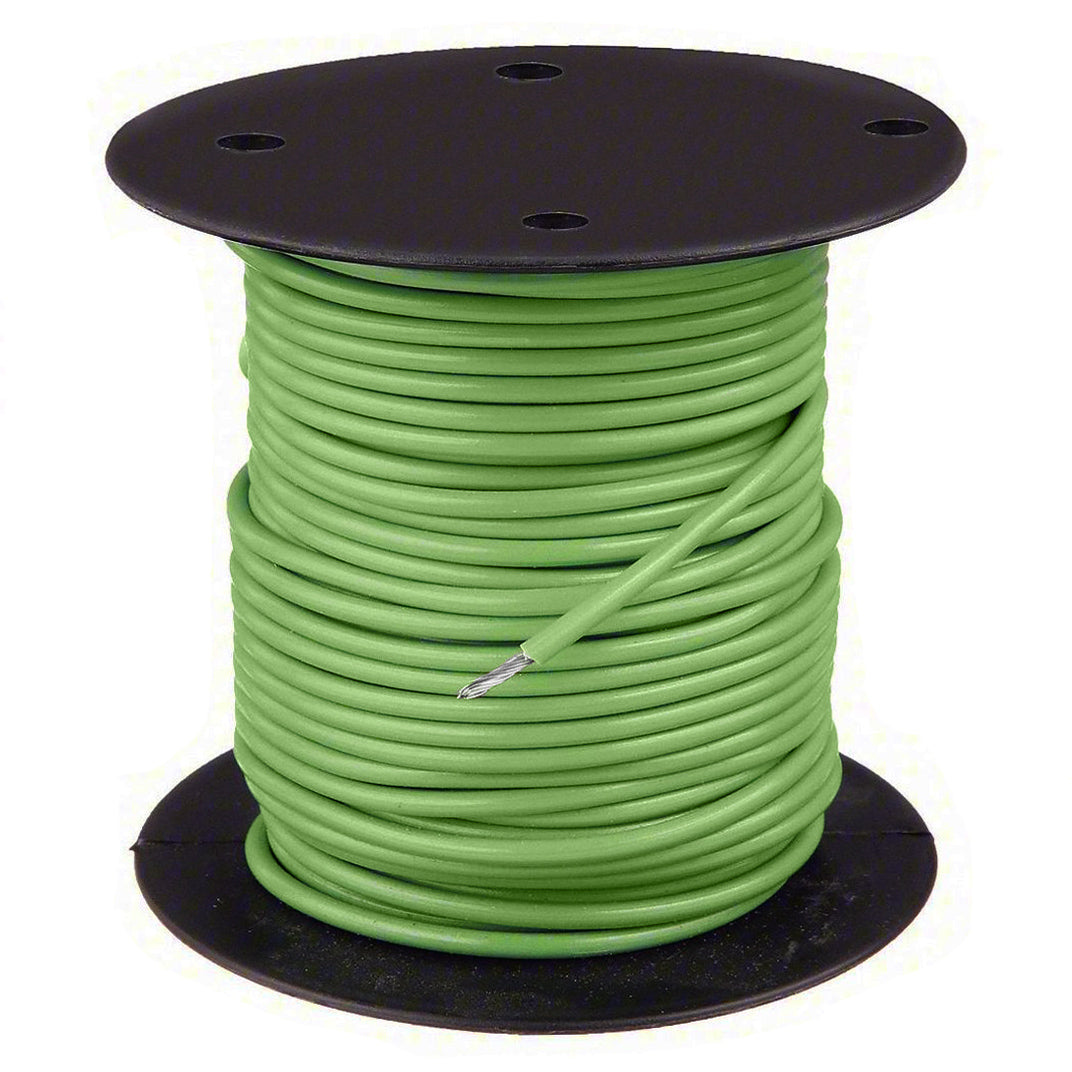

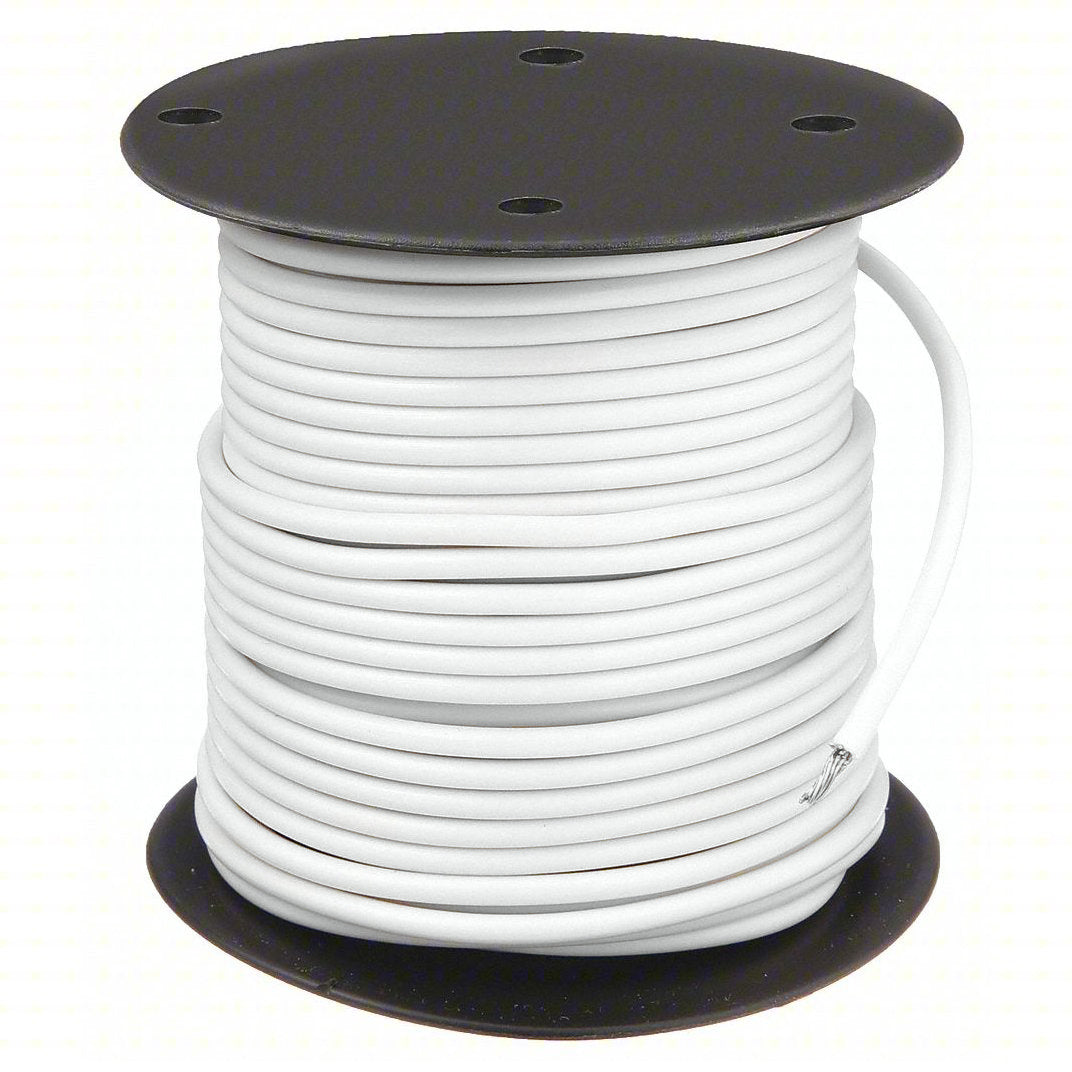

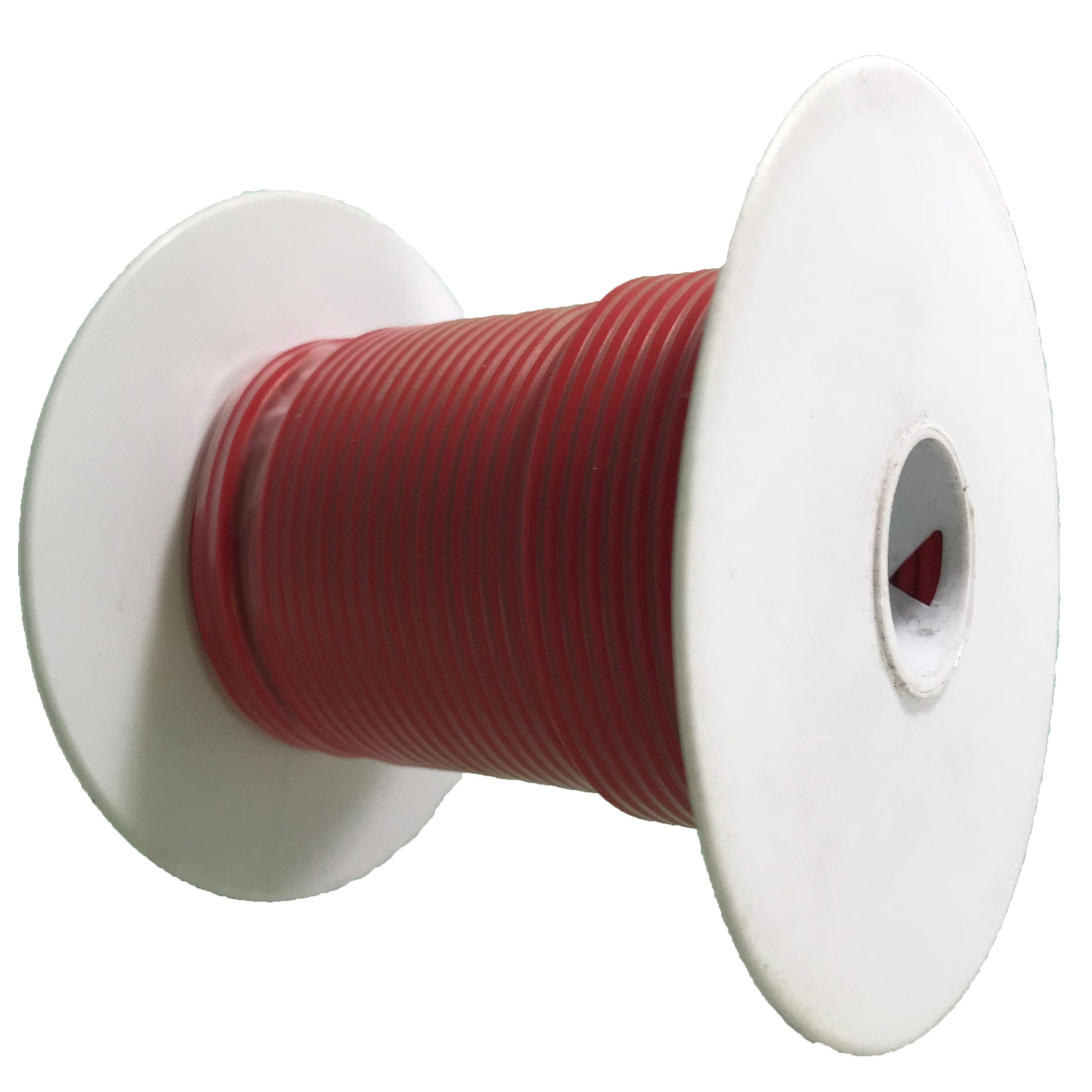

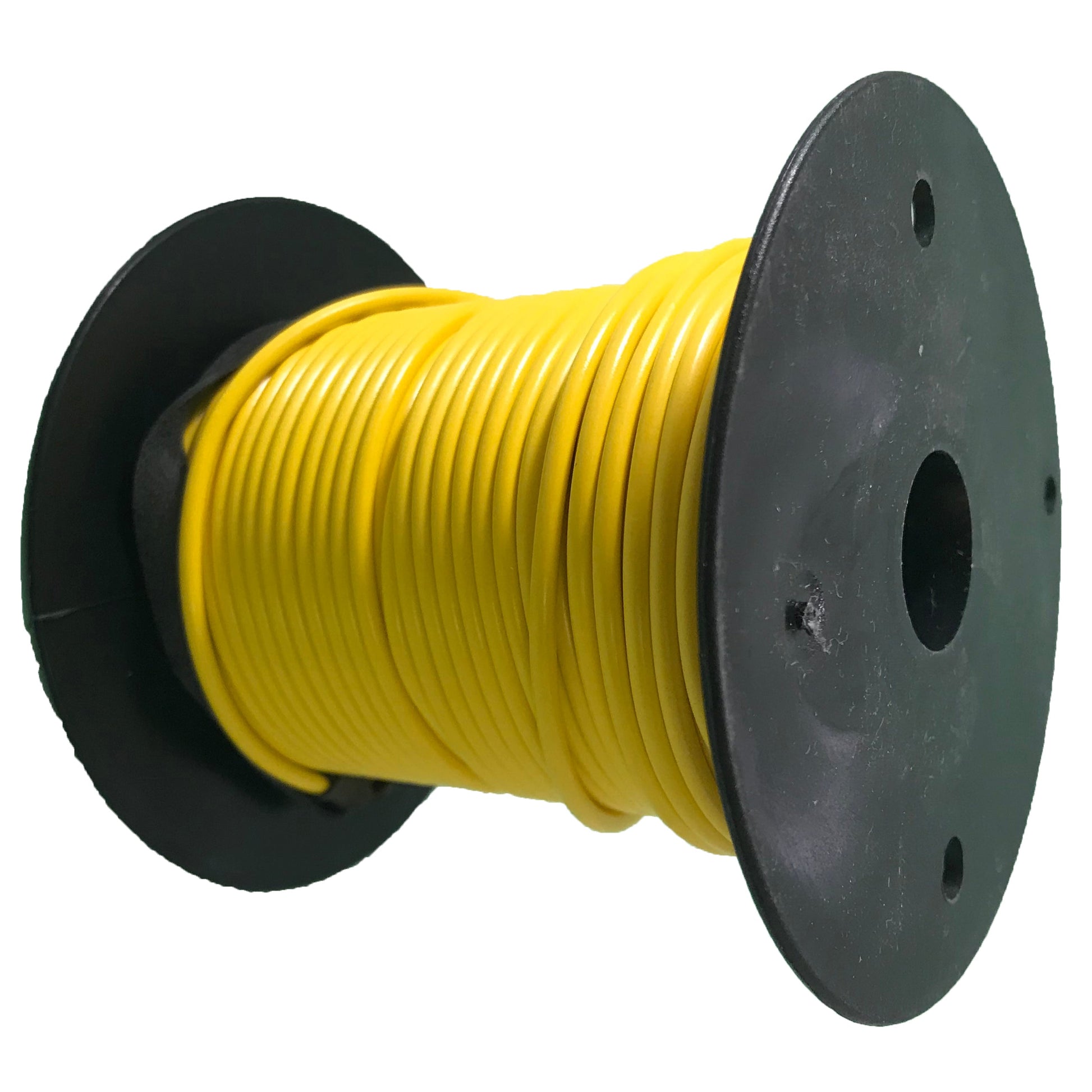

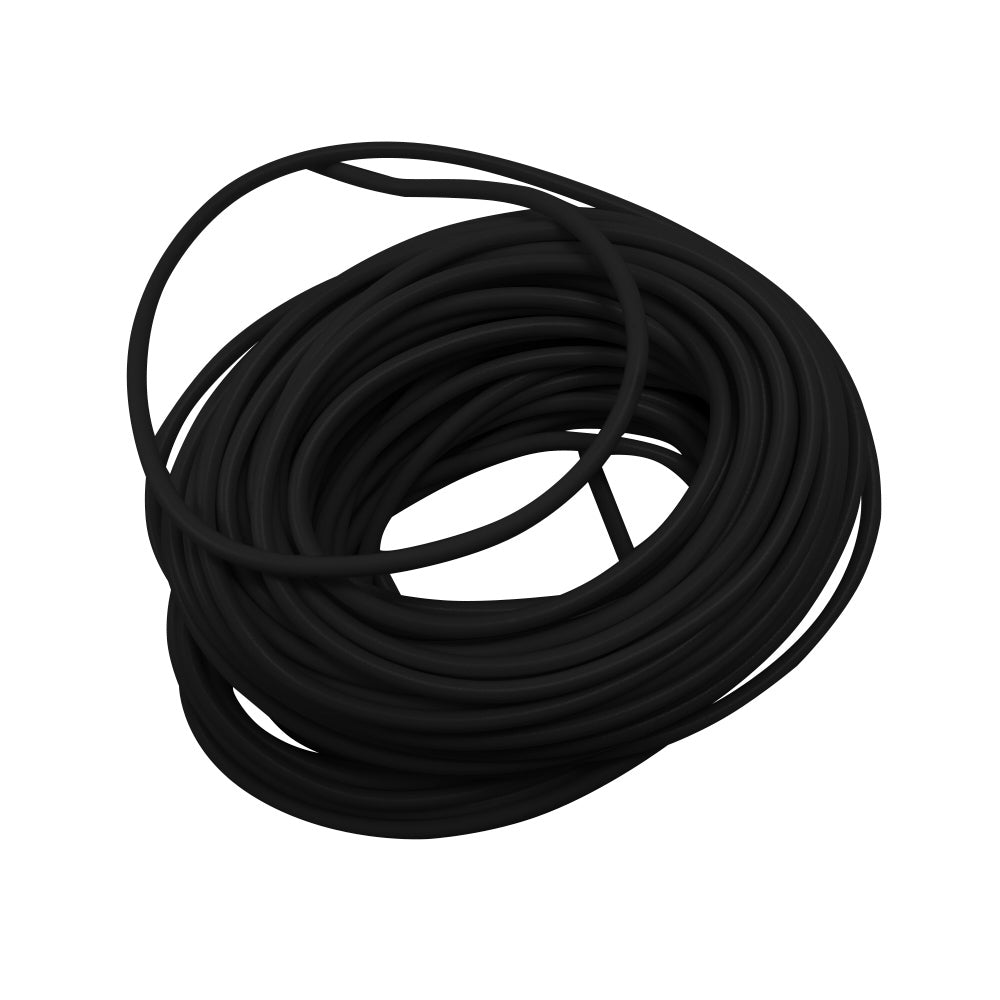

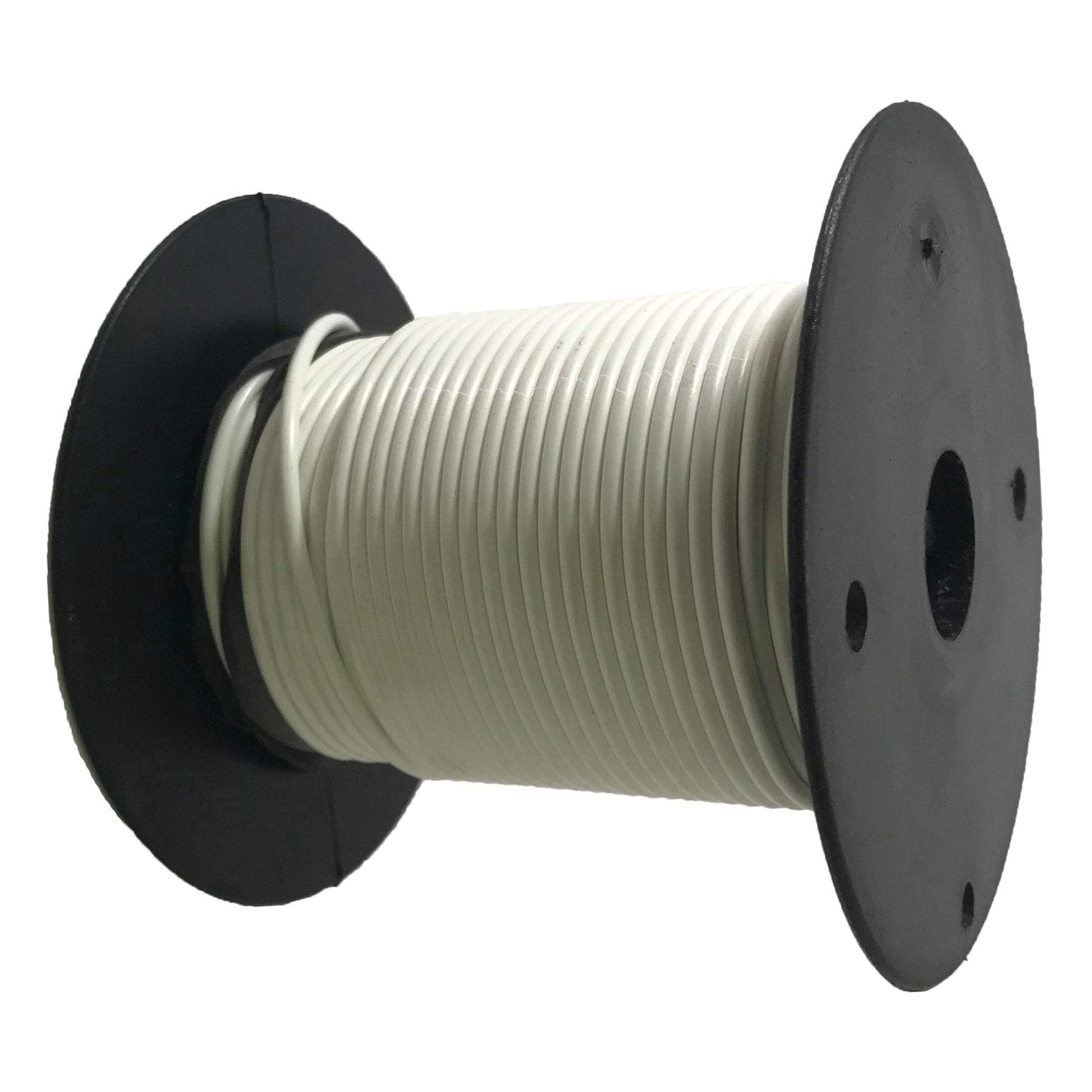

Choose from 3 Different Lengths - 25 FT Coil, 100 FT Spool, 500 FT Spool

Made in USA

COMPLIANCES:

UL Standard 1426 BC-5W2

ABYC: E-11.14

UL: MTW

Coast Guard: 33 CFR 183.401 Subpart 1-Electrical Systems

Temperature Rating: 105 °C Dry, 75 °C Wet

CHARACTERISTICS:

Conductor: Type III annealed finely stranded tinned copper ASTM B172 Class K

Insulation: -20 °C to 105 °C Flexible, Color Coded PVC

Voltage Rating: 600-V

Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Our marine wire is designed to handle the harshest marine environments. It is manufactured to meet and exceed the most stringent specifications. This marine Primary wire is constructed to achieve the highest level of quality. Built from Type III class K tinned copper, this wire offers excellent flexibility. The tinned copper also resists corrosion adding to the life of the wire.

What about the insulation? After the copper is tinned it is then insulated with a durable and flexible PVC jacket. The jacket makes this marine wire resistant to alkali, abrasion, acid, gas, oil, flame and moisture. What standards and compliances does this wire meet? Our marine wire exceeds the requirements and standards of UL, ABYC and NMMA.

FEATURES:

Stranded, tinned copper conductors

Highly flexible color coded insulation

PRINT:

E157097 (UL) 8 AWG 600V BC-5W2 105°C DRY, 75° WET OR MTW OR AWM 1015/1230 (1028/1231 -8AWG ONLY) VW-1 OIL RESISTANT I

APPLICATIONS:

Point to point wiring

Internal wiring of panels and motors
