SKU: 771025N0N02
Sale
Sold out

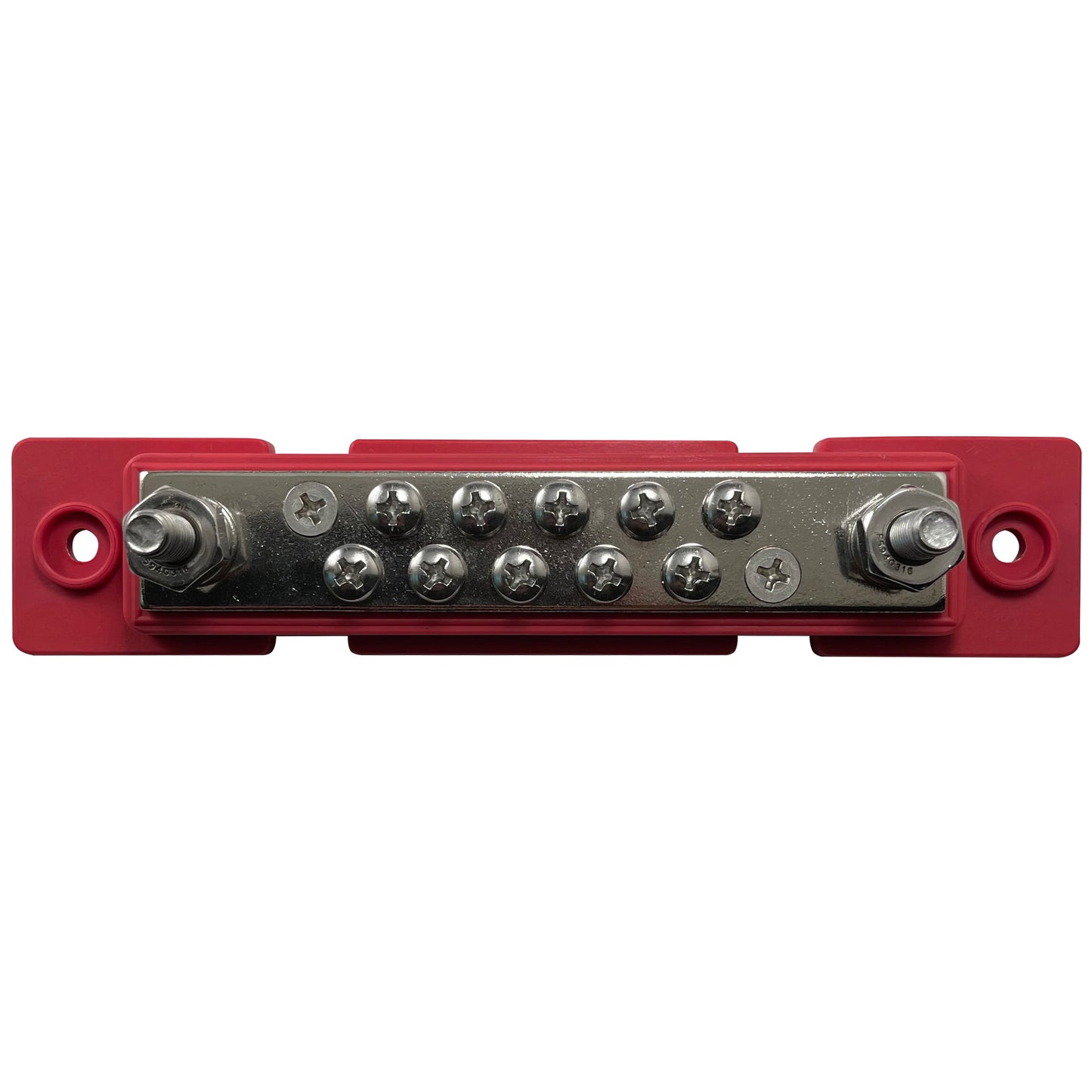

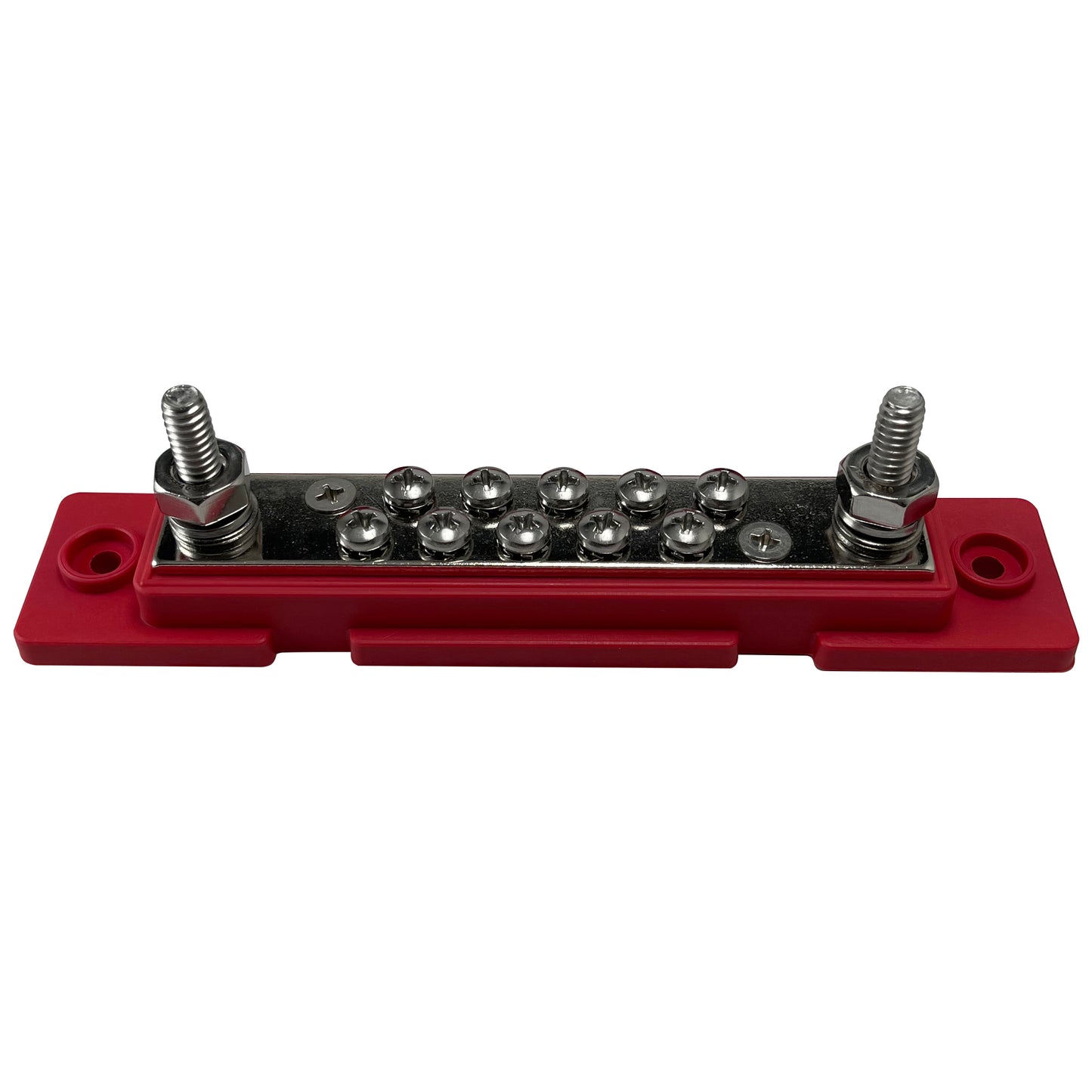

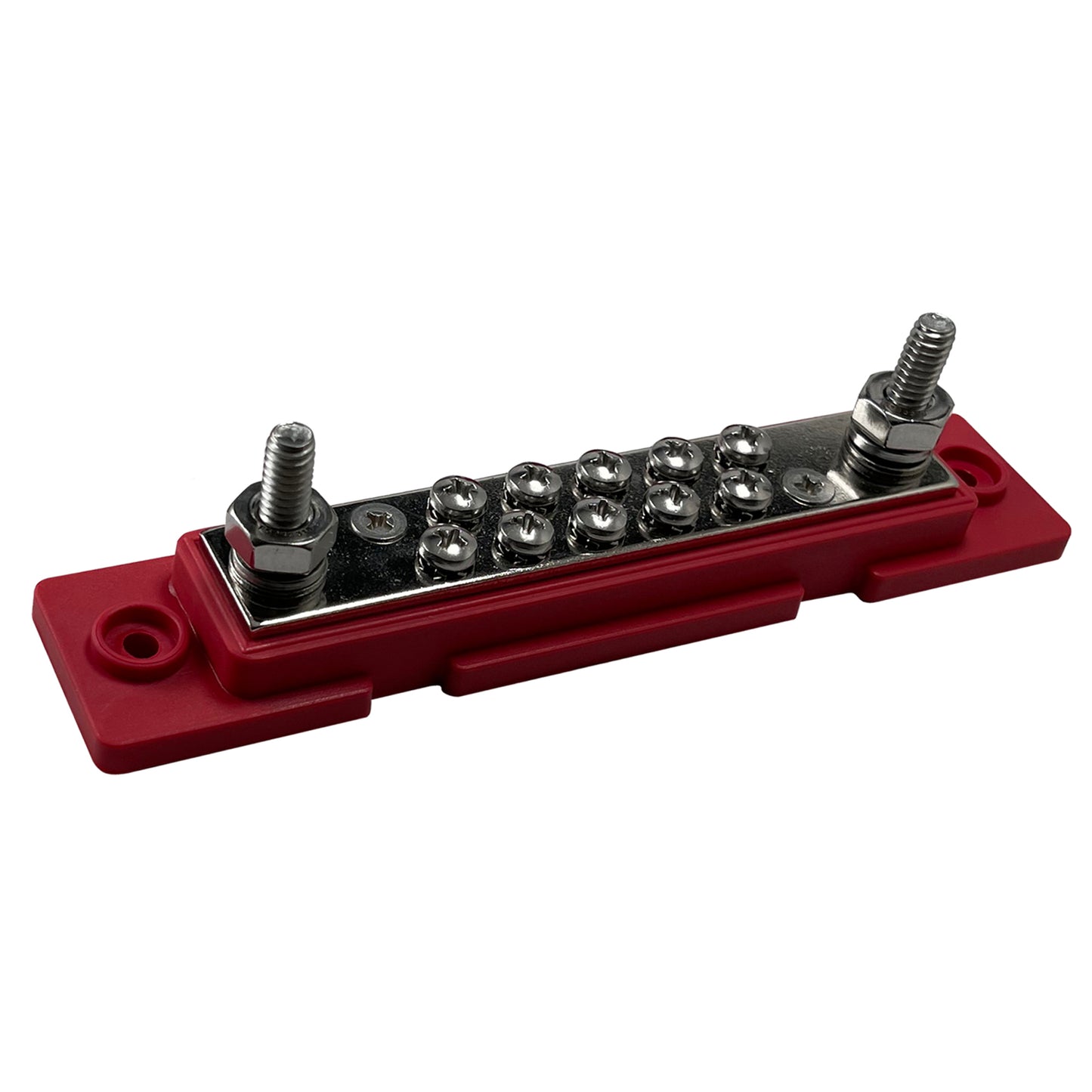

10 Point Terminal Busbar - (2) 1/4" Posts
Regular price
$16.25 USD
Sale price
$16.25 USD
Regular price
Unit price
/
per
Shipping calculated at checkout.
Your item is successfully added to the Cart!!
Couldn't load pickup availability
Product Description
10 Point Power Distribution Block. This system allows for up to 10 electrical connections, each running up to 15 amps continuous. With the optional terminal cover, the assembly complies with USCG, ISO and ABYC standards requirements.
- 10 connection points, #8-32 stainless steel screws
- Amperage:
- Max continuous: 150 amps @ 12 vdc - 15 amps per connection
- Max intermittent: 20 amps per connection (less than 1 minute)
- Max Voltage: 48 vdc
- (2) 1/4" stainless steel terminal posts
- Stainless steel hex nuts and lock washer
- Base Material: Glass-Filled Nylon (Red & Black)
- Mounting screws: #10 (not included)
- Mounting center: 4.66 in
- When used with insulators, meets USCG 33 CFR Subpart I, SAE J2120 8.5 & ABYC E-9.4 H
- Color - Red

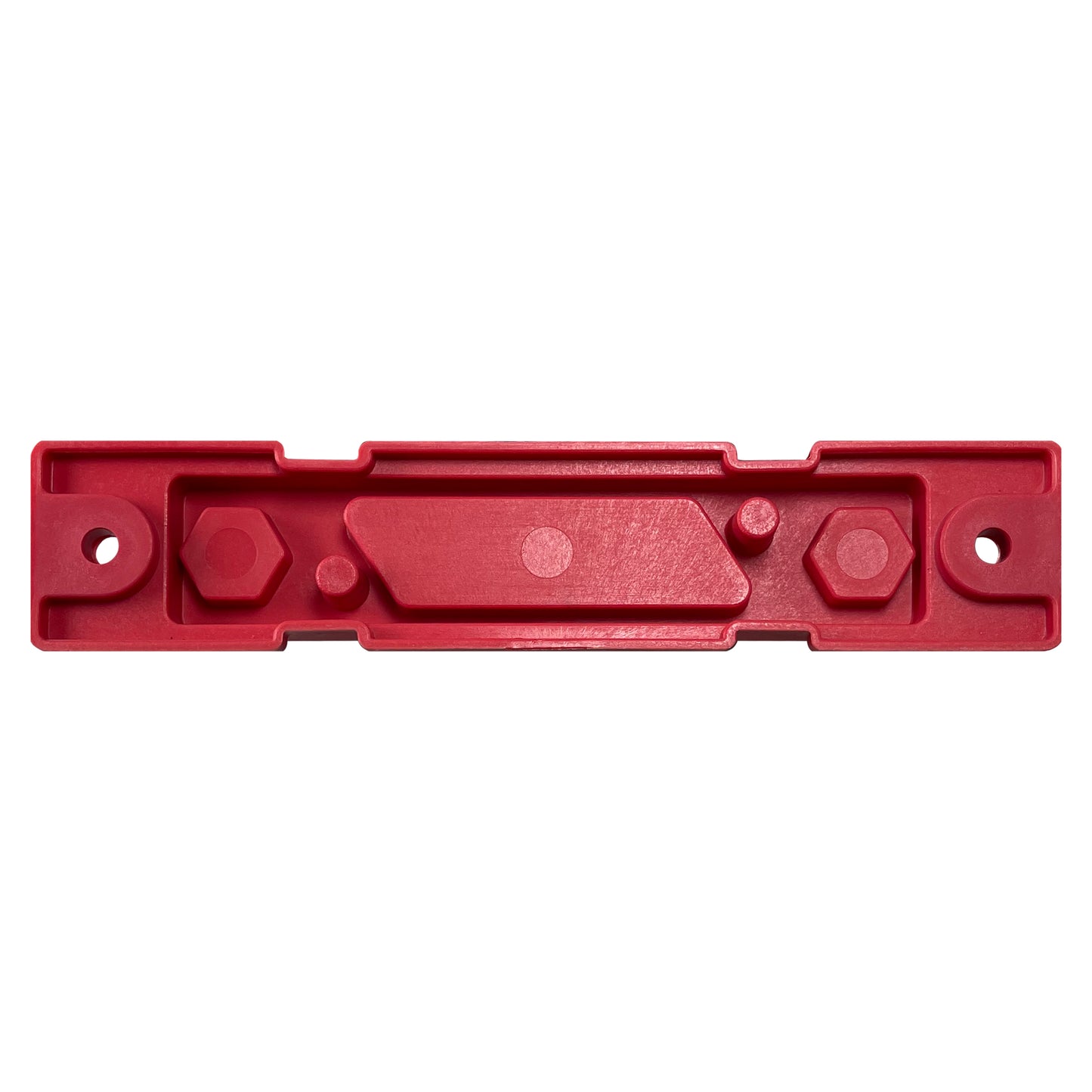

Optional: 724N3P02 Insulating Cover
