Collection: Hydralink Sealed Multiple Wire Connectors



Our Hydralink heat shrink In-line & Closed-End Butt Connectors provide durable long lasting electrical connections. Each wire terminal is lined with a polyolefin adhesive glue so that when crimped onto the wire ends and heated the terminal is completely sealed against air and water. In addition to providing a waterproof connection and protecting against corrosion heat shrink crimp connectors form more durable connections providing greater pull strength than vinyl or nylon wire connectors. Our Sealed Multiple Wire Connectors product line is the finest line of “Multi-Wire” connectors on the market today. New design features, the use of only the finest components, and an expanded product selection place Sealed Crimp Connectors squarely at the top of the class.

Made in USA


Features & Benefits:
- Unique Heat Shrink Tubing Connector
- Active adhesive flows and seals between multiple wires
- Clear tubing allows for visual inspection
- Color dash wire size indicator
- Color stripe die indicator





Hydralink In-Line Butt Connectors Information
Part # - Description - Tubing Color - Color Stripe on Connector - Crimp Die (Insulated)
HL57-20 - 24-22 AWG - Clear/White Dash - Side 1: White - White (24-22 AWG) - Side 2: Red - Red (22-18 AWG)

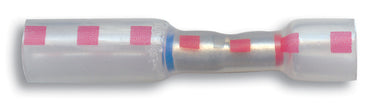

HL57-16 - 22-18 AWG - Clear/Red Dash - Side 1: Red - Red (22-18 AWG) - Side 2: Blue - Blue (16-14 AWG)
HL57-14 - 16-14 AWG - Clear/Blue Dash - Side 1: Blue - Blue (16-14 AWG) - Side 2: Yellow - Yellow (12-10 AWG)

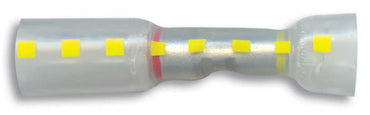

HL57-10 - 12-10 AWG - Clear/Yellow Dash - Side 1: Yellow - Yellow (12-10 AWG) - Side 2: Red - Red (8 AWG)



The in-line butt connector is the solution for problems that may result from the use of these





Hydralink Closed End Connectors Information
Part # - Description - Tubing Color

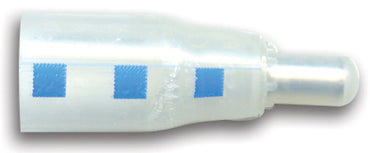

HL8-22-14 - 22-14 AWG - Clear/Blue Dash

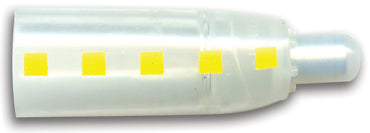

HL8-18-10 - 18-10 AWG - Clear/Yellow Dash




These heat shrink crimp connectors are all industry standard color coded and imprinted for quick and easy identification. All our heat shrink connectors are made with translucent tubing allowing for visual inspection of connections.
