SKU: SBA38

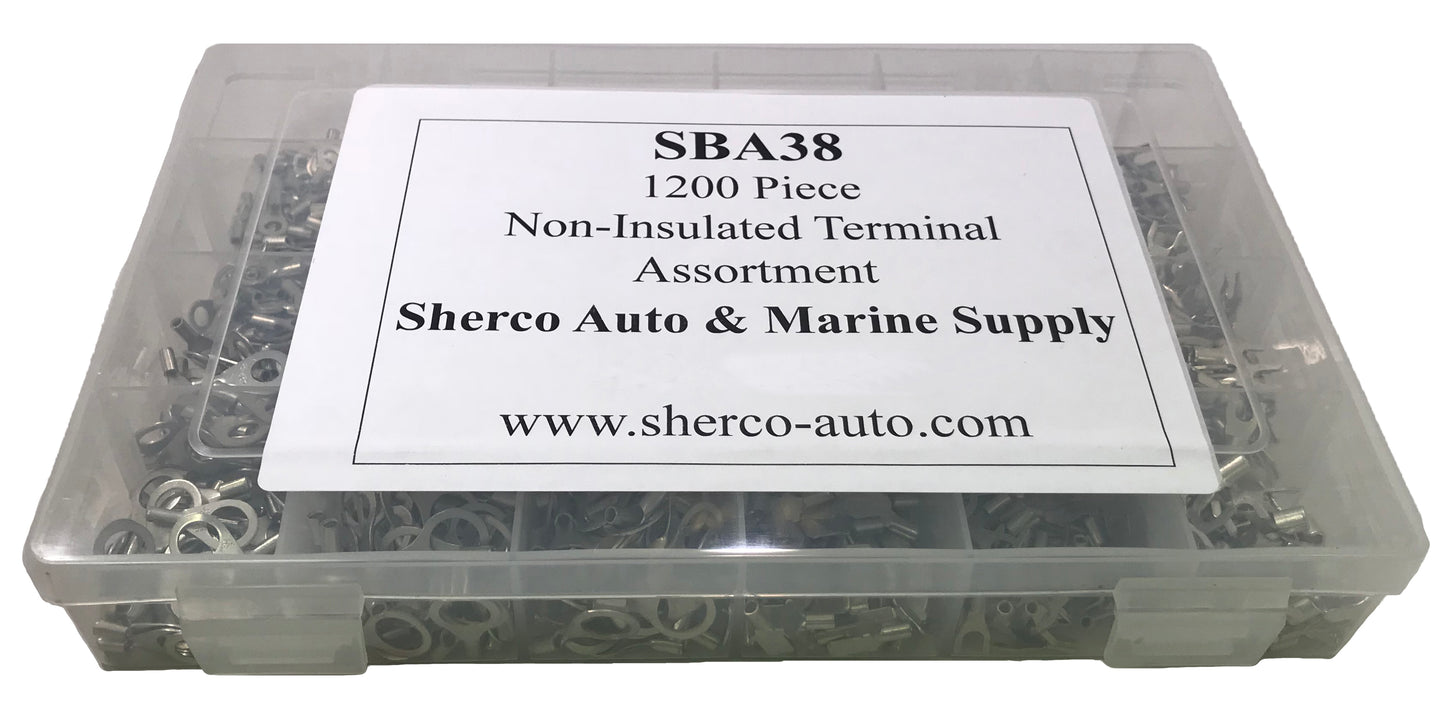

Non-Insulated Wire Terminal Connector Assortment Kit - 1200 Pieces

$89.99 USD
$89.99 USD
Sale Sold out

Product Description

Our Non-Insulated Wire terminals are constructed from pure copper (Alloy 110), annealed & electro tin plated for Exceptional Corrosion Resistance. All terminals have "V" groove serrations To provide maximum contact and tensile strength after crimping.
  • All terminals constructed from pure copper (Alloy 110) annealed & electro tin plated for exceptional corrosion resistance.
  • Terminals have "V" groove serrations to provide maximum contact and tensile strength after crimping.
  • Terminals and connectors are clearly marked with size.
  • Brazed Barrel Seams.
  • Mil Specs: MIL-T-10727C Type 1 ASTM B 545 B. .0001-.00025 Thick
  • Made in USA.

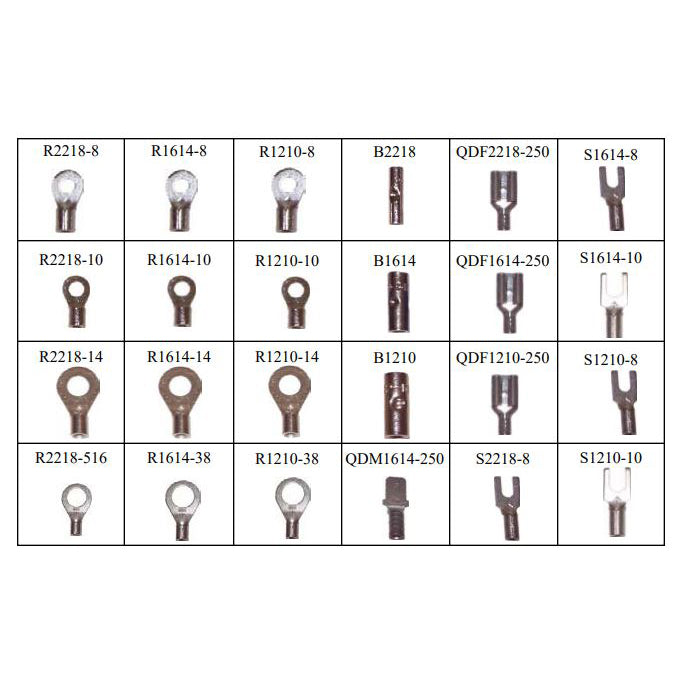

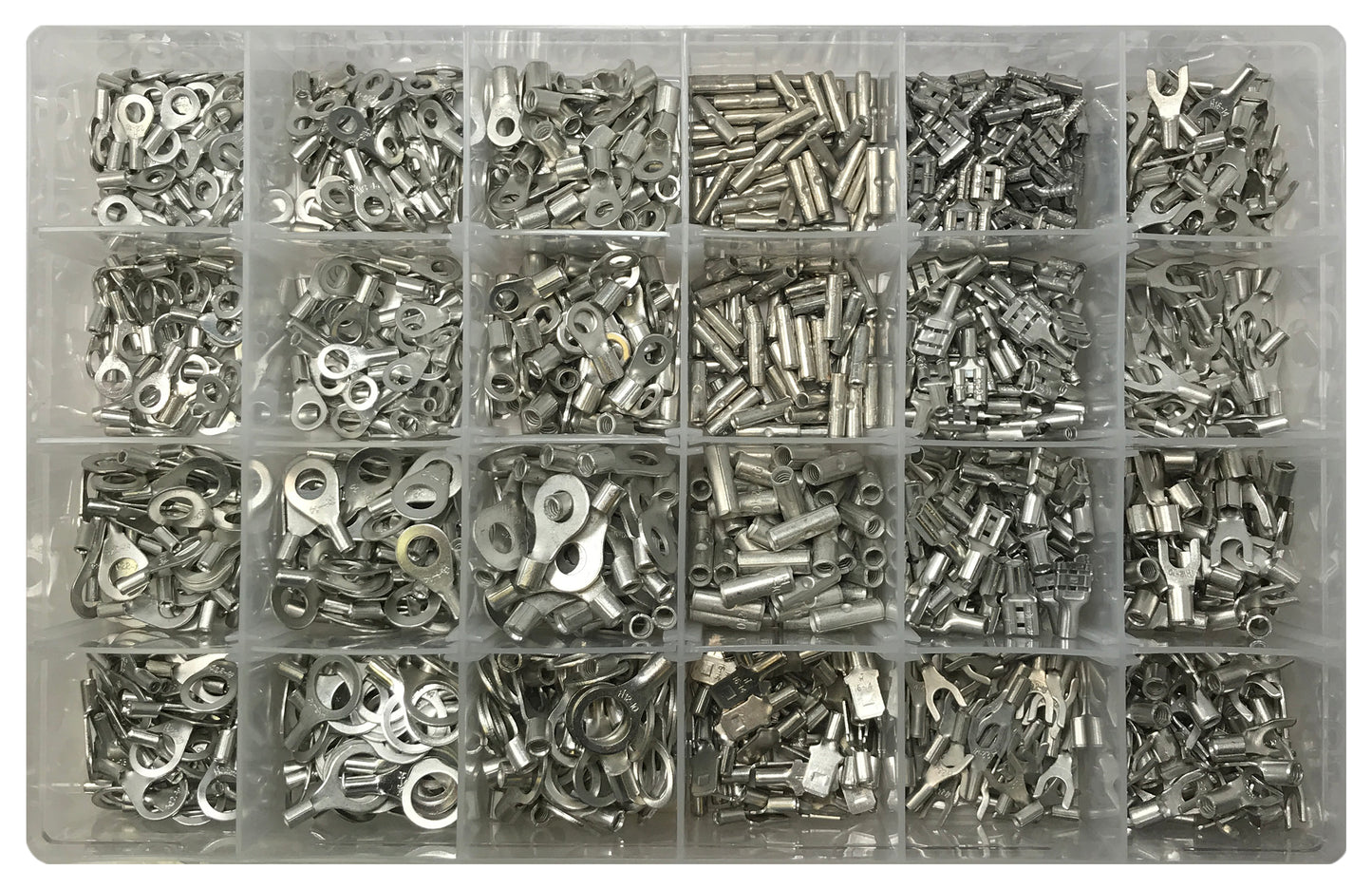

Kit Includes:

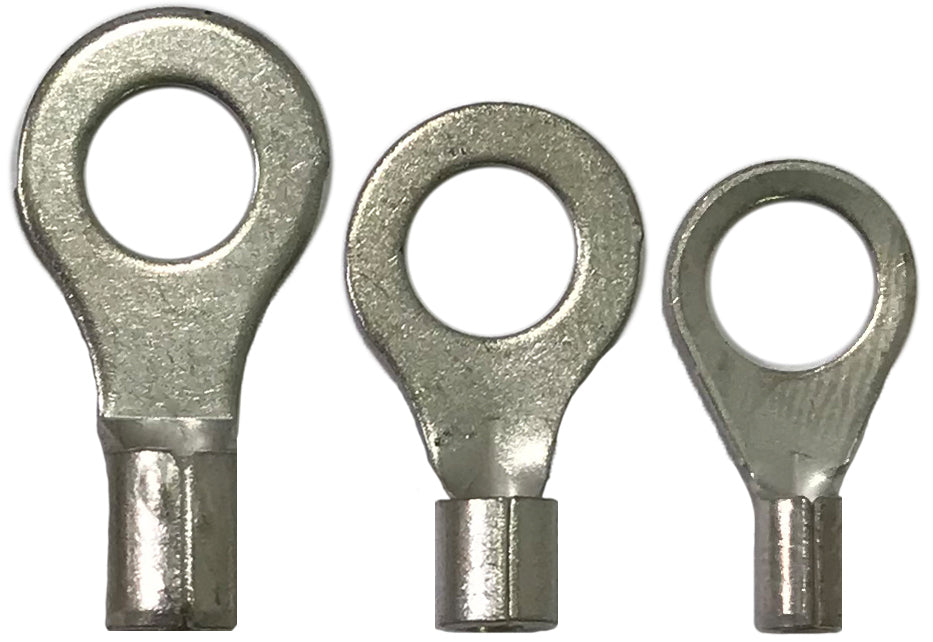

  • 50 - R2218-8 - Non-Insulated Ring Terminal 22-18 Gauge #8 Stud
  • 50 - R2218-10 - Non-Insulated Ring Terminal 22-18 Gauge #10 Stud
  • 50 - R2218-14 - Non-Insulated Ring Terminal 22-18 Gauge 1/4" Stud
  • 50 - R2218-516 - Non-Insulated Ring Terminal 22-18 Gauge 5/16" Stud
  • 50 - R1614-8 - Non-Insulated Ring Terminal 16-14 Gauge #8 Stud
  • 50 - R1614-10 - Non-Insulated Ring Terminal 16-14 Gauge #10 Stud
  • 50 - R1614-14 - Non-Insulated Ring Terminal 16-14 Gauge 1/4" Stud
  • 50 - R1614-38 - Non-Insulated Ring Terminal 16-14 Gauge 3/8" Stud
  • 50 - R1210-8 - Non-Insulated Ring Terminal 12-10 Gauge #8 Stud
  • 50 - R1210-10 - Non-Insulated Ring Terminal 12-10 Gauge #10 Stud
  • 50 - R1210-14 - Non-Insulated Ring Terminal 12-10 Gauge 1/4" Stud
  • 50 - R1210-38 - Non-Insulated Ring Terminal 12-10 Gauge 3/8" Stud

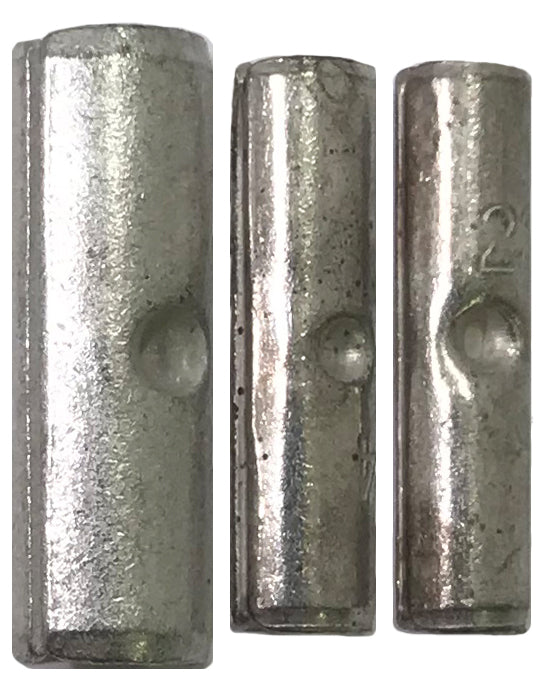

  • 50 - B1210 - Non-Insulated Butt Connector 12-10 Gauge
  • 50 - B1614 - Non-Insulated Butt Connector 16-14 Gauge
  • 50 - B2218 - Non-Insulated Butt Connector 22-18 Gauge

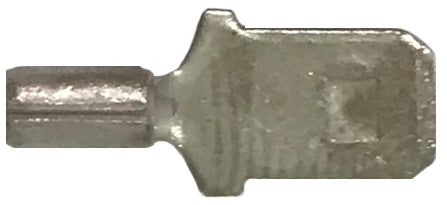

  • 50 - QDM1614-250 - Non-Insulated Male Quick Disconnect 16-14 Gauge 0.250" Tab

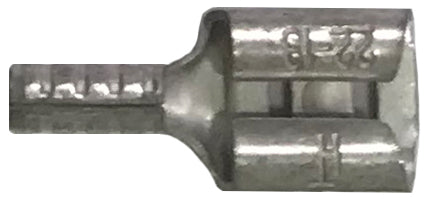

  • 50 - QDF2218-250 - Non-Insulated Female Quick Disconnect 22-18 Gauge 0.250" Tab
  • 50 - QDF1614-250 - Non-Insulated Female Quick Disconnect 16-14 Gauge 0.250" Tab
  • 50 - QDF1210-250 - Non-Insulated Female Quick Disconnect 12-10 Gauge 0.250" Tab

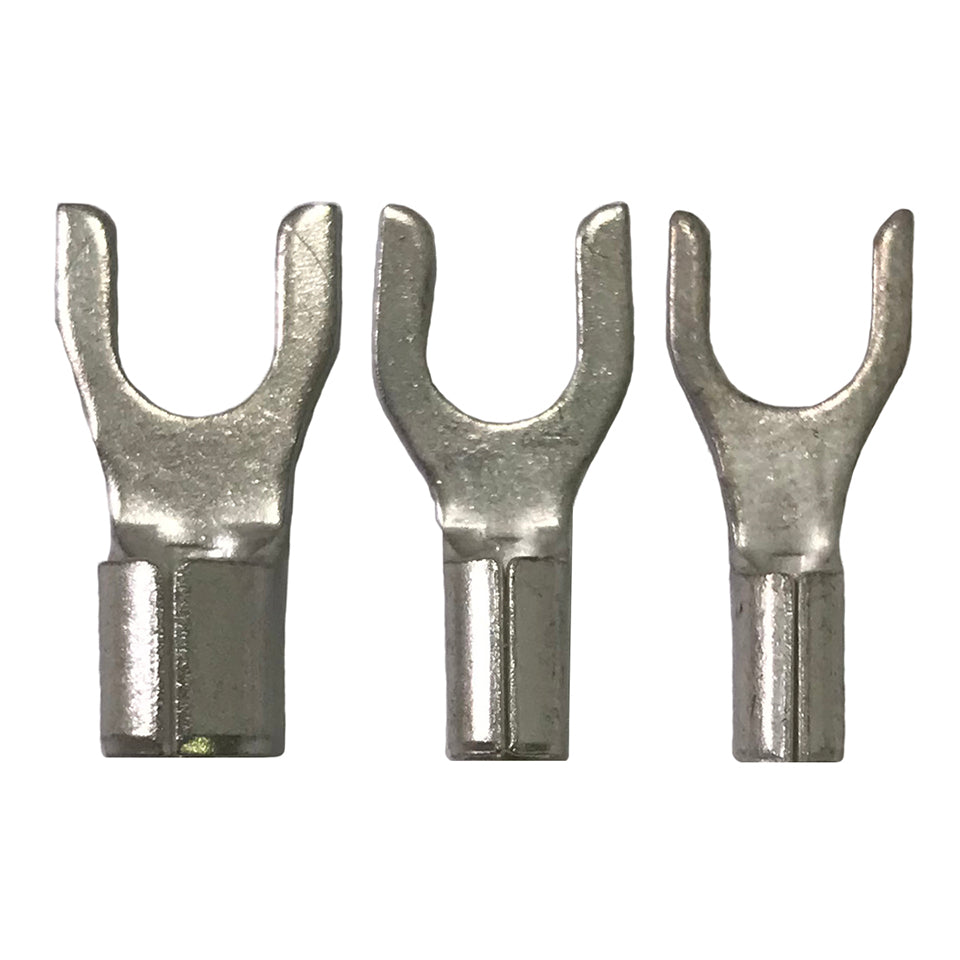

  • 50 - S2218-8 - Non-Insulated Spade Terminal 22-18 Gauge #8 Stud
  • 50 - S1614-8 - Non-Insulated Spade Terminal 16-14 Gauge #8 Stud
  • 50 - S1614-10 - Non-Insulated Spade Terminal 16-14 Gauge #10 Stud
  • 50 - S1210-8 - Non-Insulated Spade Terminal 12-10 Gauge #8 Stud
  • 50 - S1210-10 - Non-Insulated Spade Terminal 12-10 Gauge #10 Stud

                                              Additional Information:
                                              • Insulation Material: Non-Insulated
                                              • Material: Copper
                                              • Material Plating: Electro Tin-Plated
                                              • Certifcations: cULus
                                              • Temperature Range: 230 F
                                              • Termination Type: Crimp
                                              • Voltage Rating: 600 Volts
                                              • Country of Origin: United States
