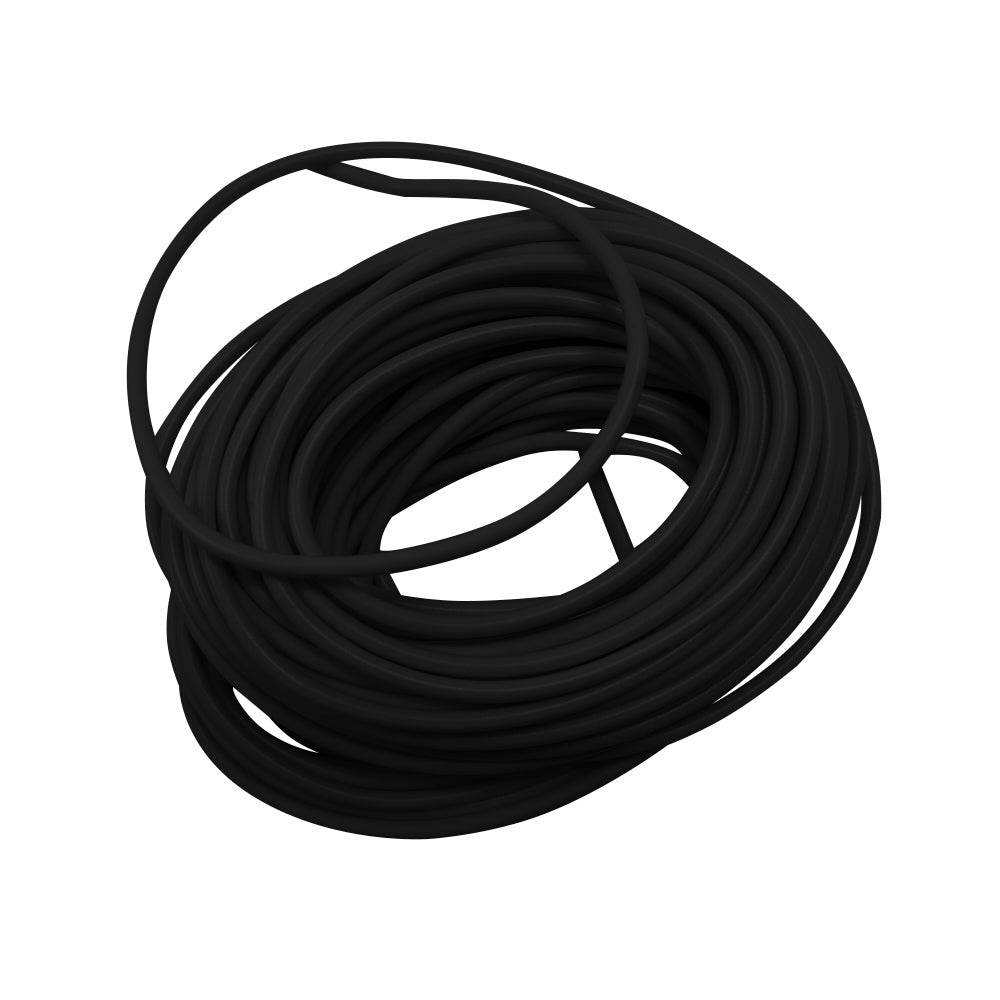

• 16 Gauge Black Marine Tinned Copper Primary Wire - 25 FT
  • 16 Gauge Yellow Marine Tinned Copper Primary Wire - 25 FT
  • 16 Gauge White Marine Tinned Copper Primary Wire - 25 FT
  • 16 Gauge Tan Marine Tinned Copper Primary Wire - 25 FT
  • 16 Gauge Red Marine Tinned Copper Primary Wire - 25 FT

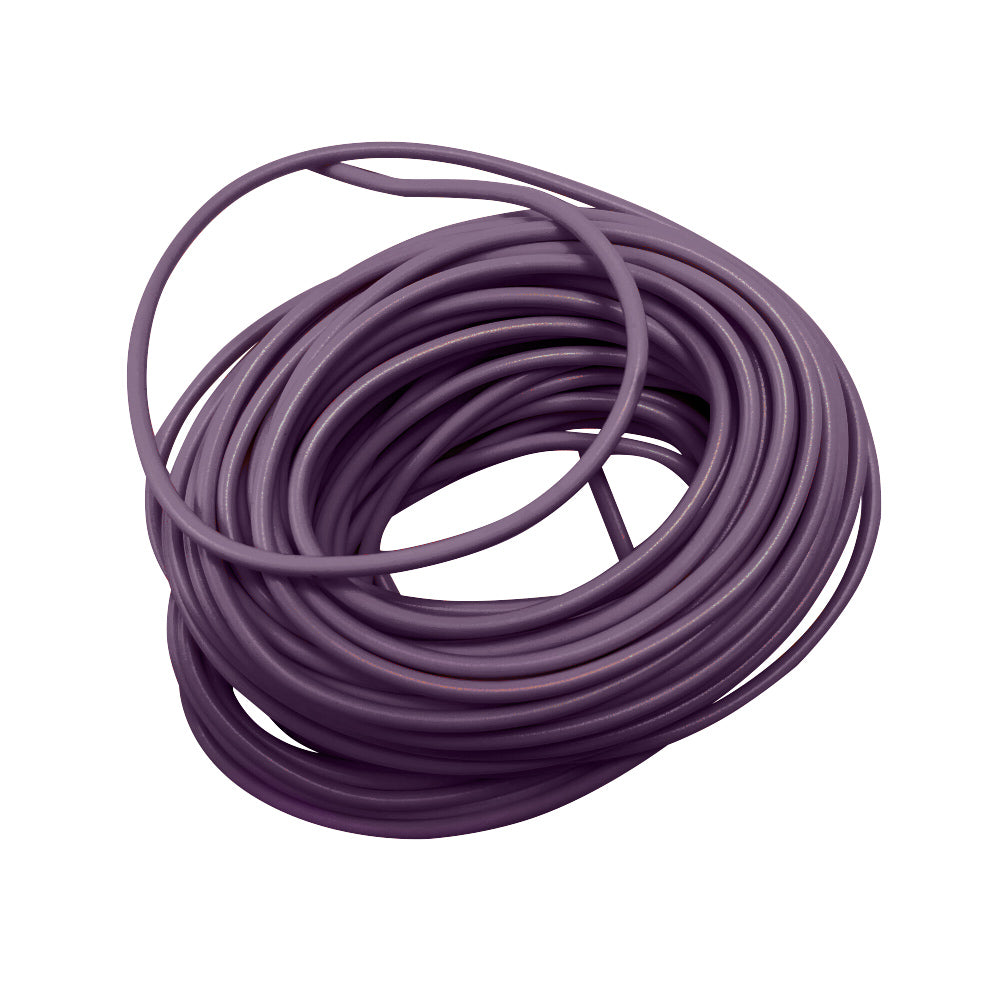

  • 16 Gauge Purple Marine Tinned Copper Primary Wire - 25 FT
  • 16 Gauge Pink Marine Tinned Copper Primary Wire - 25 FT
  • 16 Gauge Orange Marine Tinned Copper Primary Wire - 25 FT
  • 16 Gauge Light Green Marine Tinned Copper Primary Wire - 25 FT
  • 16 Gauge Light Blue Marine Tinned Copper Primary Wire - 25 FT
  • 16 Gauge Gray Marine Tinned Copper Primary Wire - 25 FT
  • 16 Gauge Green Marine Tinned Copper Primary Wire - 25 FT

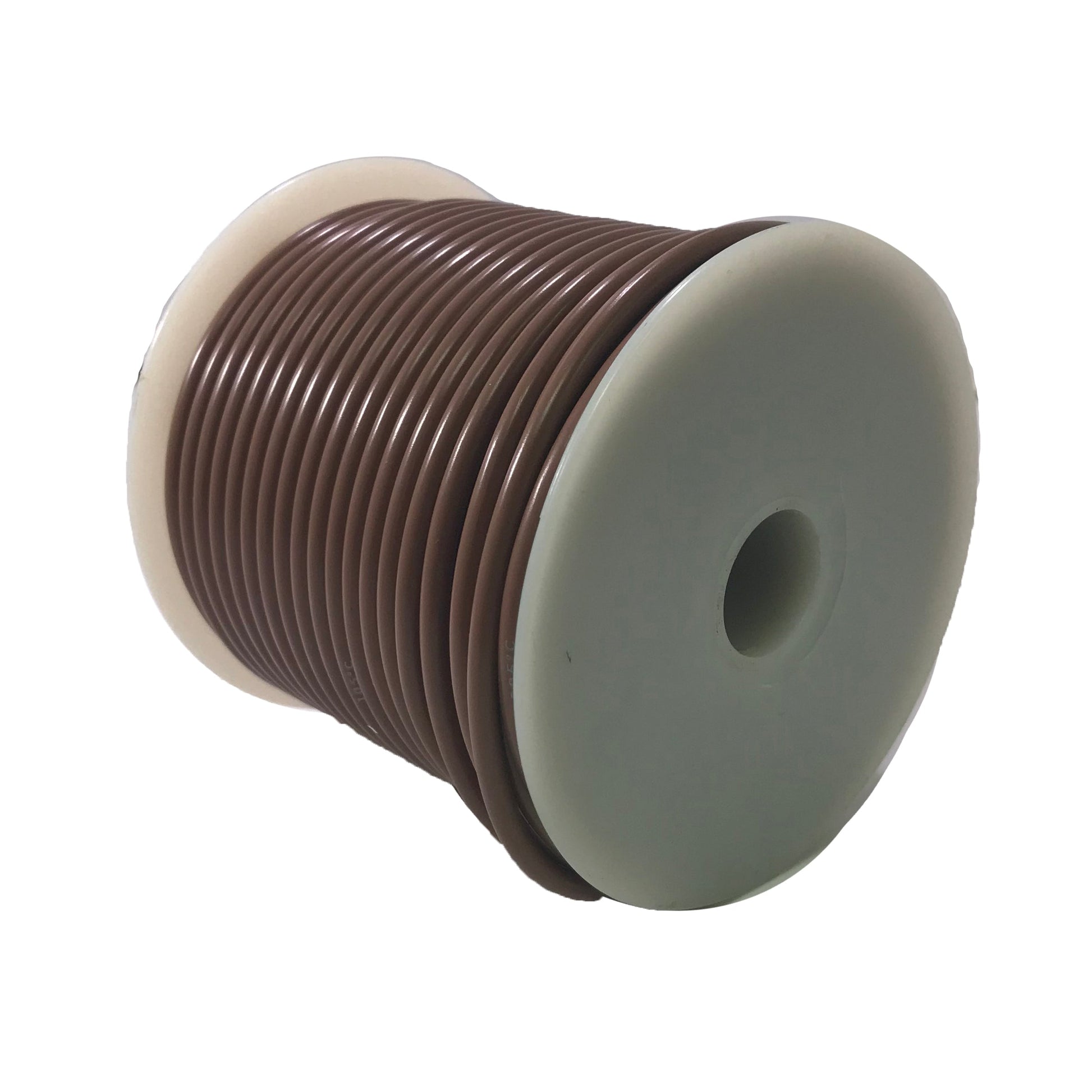

  • 16 Gauge Brown Marine Tinned Copper Primary Wire - 25 FT
  • 16 Gauge Blue Marine Tinned Copper Primary Wire - 25 FT
  • 16 Gauge Yellow Marine Tinned Copper Primary Wire - 100 FT
  • 16 Gauge White Marine Tinned Copper Primary Wire - 100 FT
  • 16 Gauge Tan Marine Tinned Copper Primary Wire - 100 FT
  • 16 Gauge Red Marine Tinned Copper Primary Wire - 100 FT

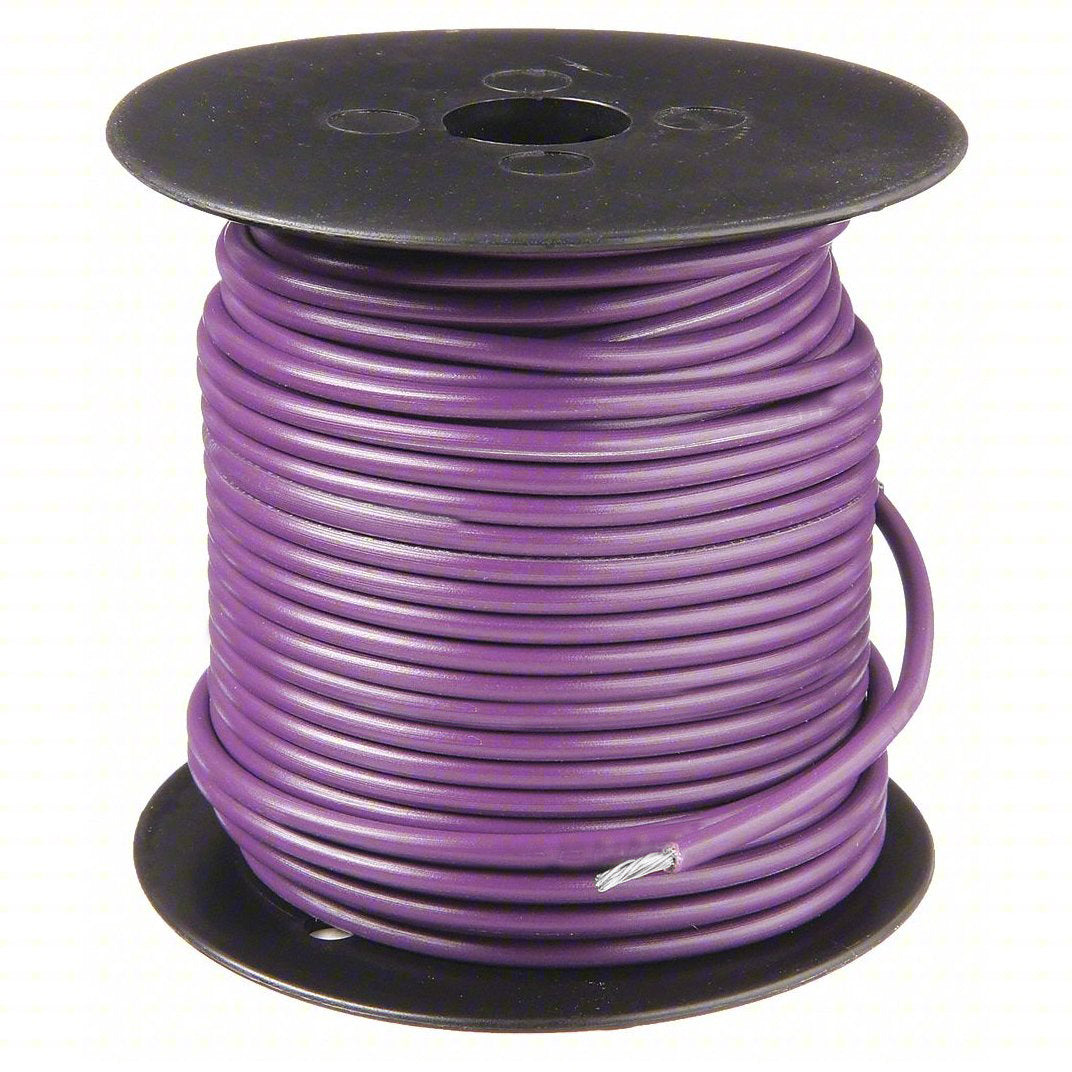

  • 16 Gauge Purple Marine Tinned Copper Primary Wire - 100 FT
  • 16 Gauge Pink Marine Tinned Copper Primary Wire - 100 FT
  • 16 Gauge Orange Marine Tinned Copper Primary Wire - 100 FT
  • 16 Gauge Light Green Marine Tinned Copper Primary Wire - 100 FT
  • 16 Gauge Light Blue Marine Tinned Copper Primary Wire - 100 FT
  • 16 Gauge Gray Marine Tinned Copper Primary Wire - 100 FT
  • 16 Gauge Green Marine Tinned Copper Primary Wire - 100 FT
  • 16 Gauge Brown Marine Tinned Copper Primary Wire - 100 FT
  • 16 Gauge Blue Marine Tinned Copper Primary Wire - 100 FT
  • 16 Gauge Black Marine Tinned Copper Primary Wire - 100 FT

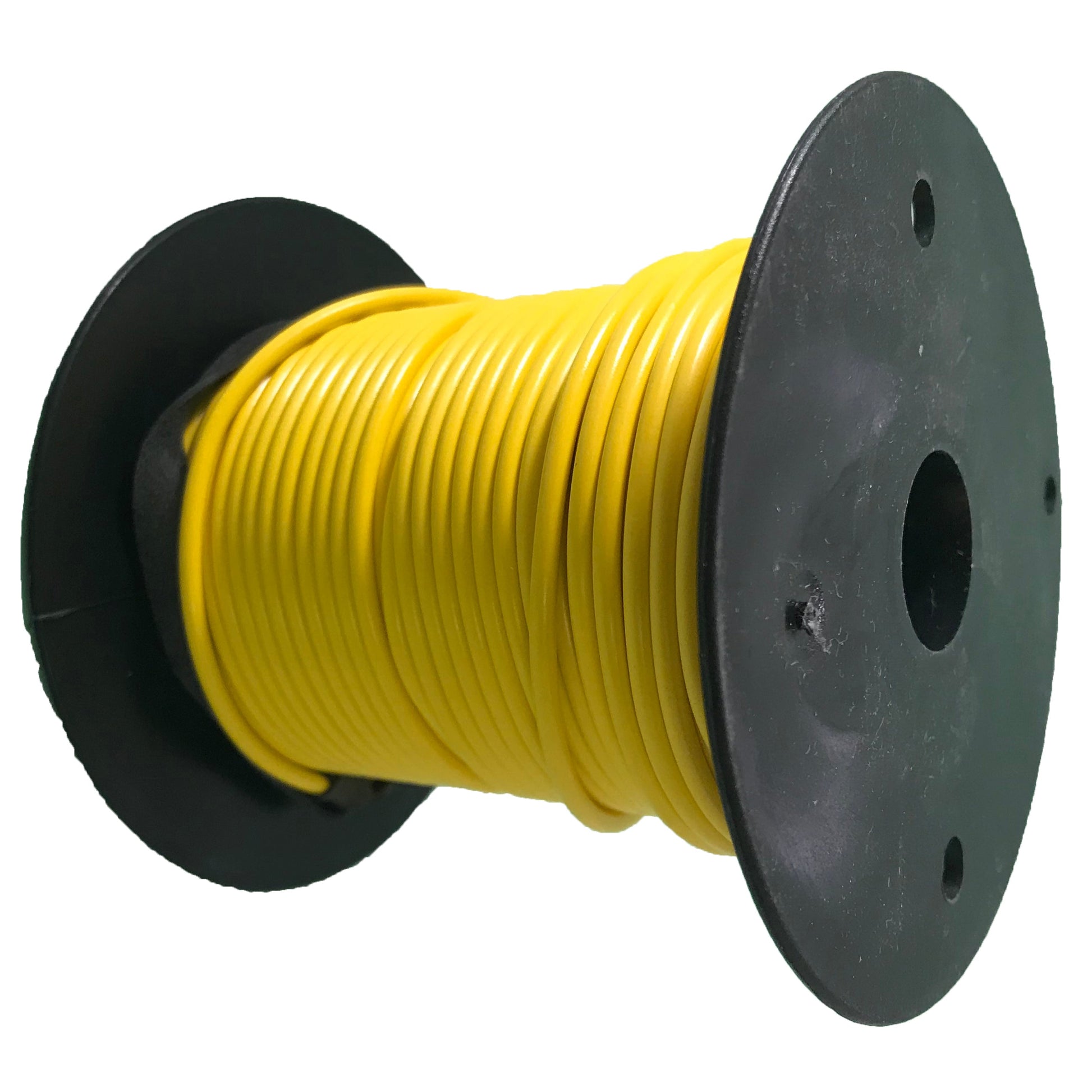

  • 16 Gauge Yellow Marine Tinned Copper Primary Wire - 500 FT
  • 16 Gauge White Marine Tinned Copper Primary Wire - 500 FT
  • 16 Gauge Tan Marine Tinned Copper Primary Wire - 500 FT
  • 16 Gauge Red Marine Tinned Copper Primary Wire - 500 FT
  • 16 Gauge Purple Marine Tinned Copper Primary Wire - 500 FT

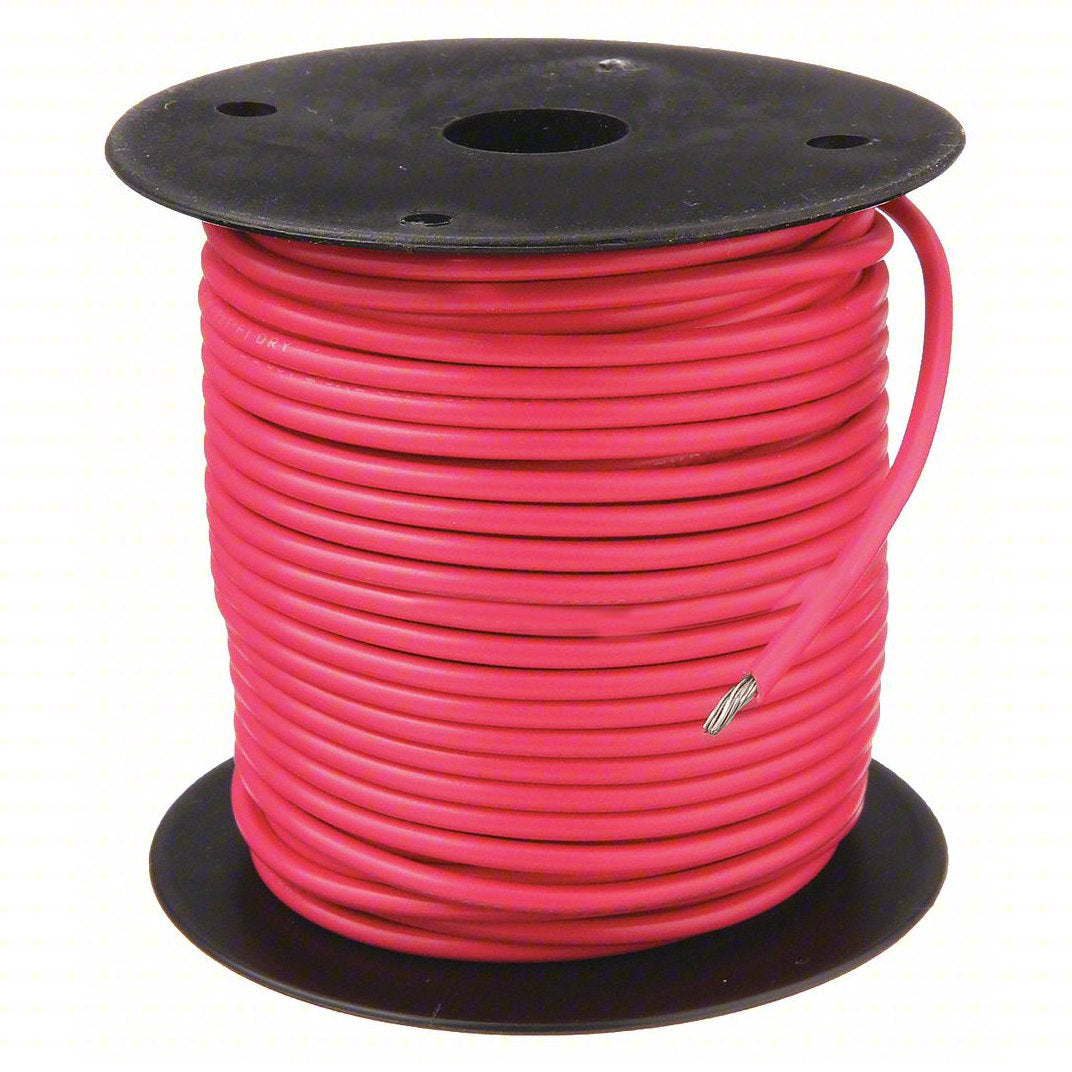

  • 16 Gauge Pink Marine Tinned Copper Primary Wire - 500 FT
  • 16 Gauge Orange Marine Tinned Copper Primary Wire - 500 FT

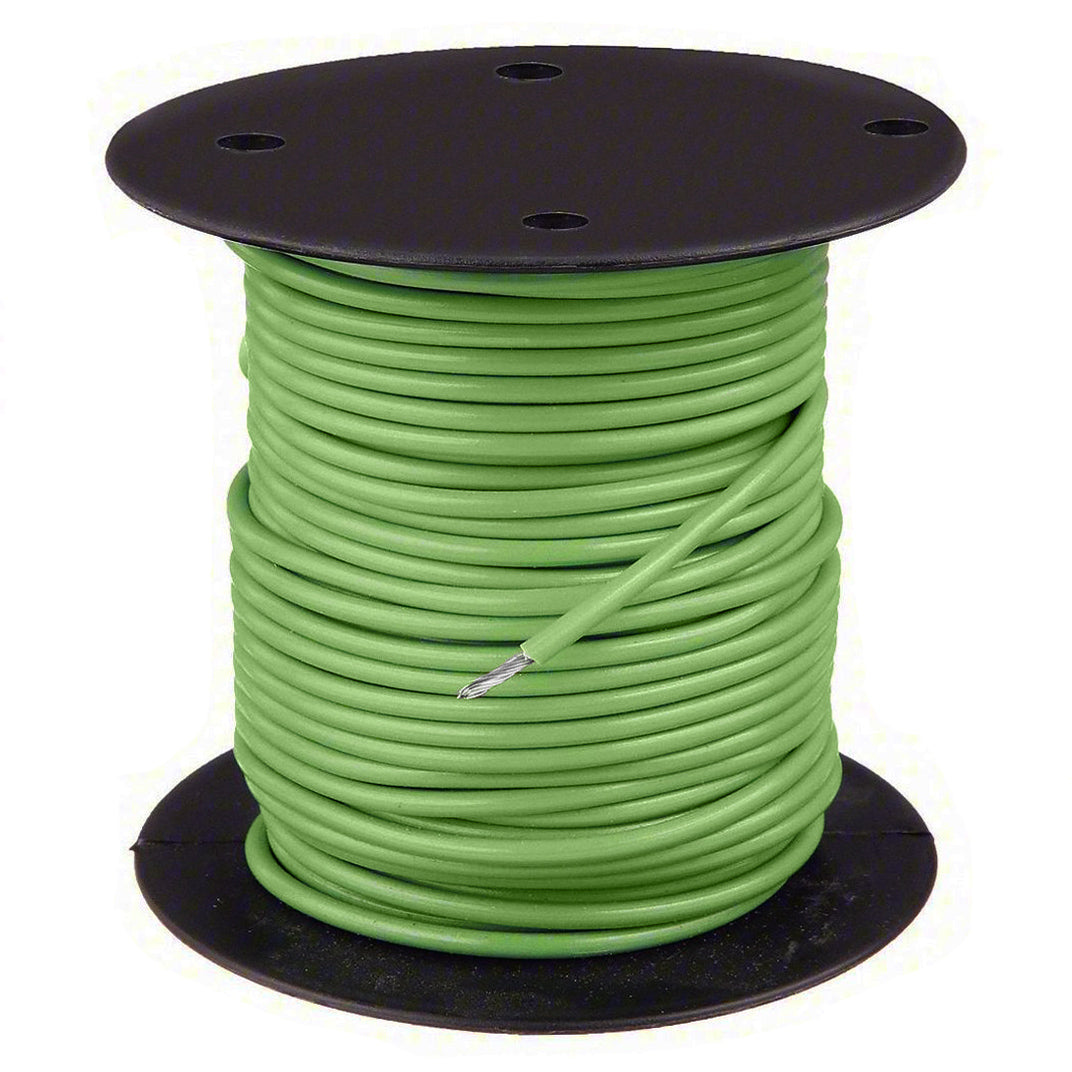

  • 16 Gauge Light Green Marine Tinned Copper Primary Wire - 500 FT

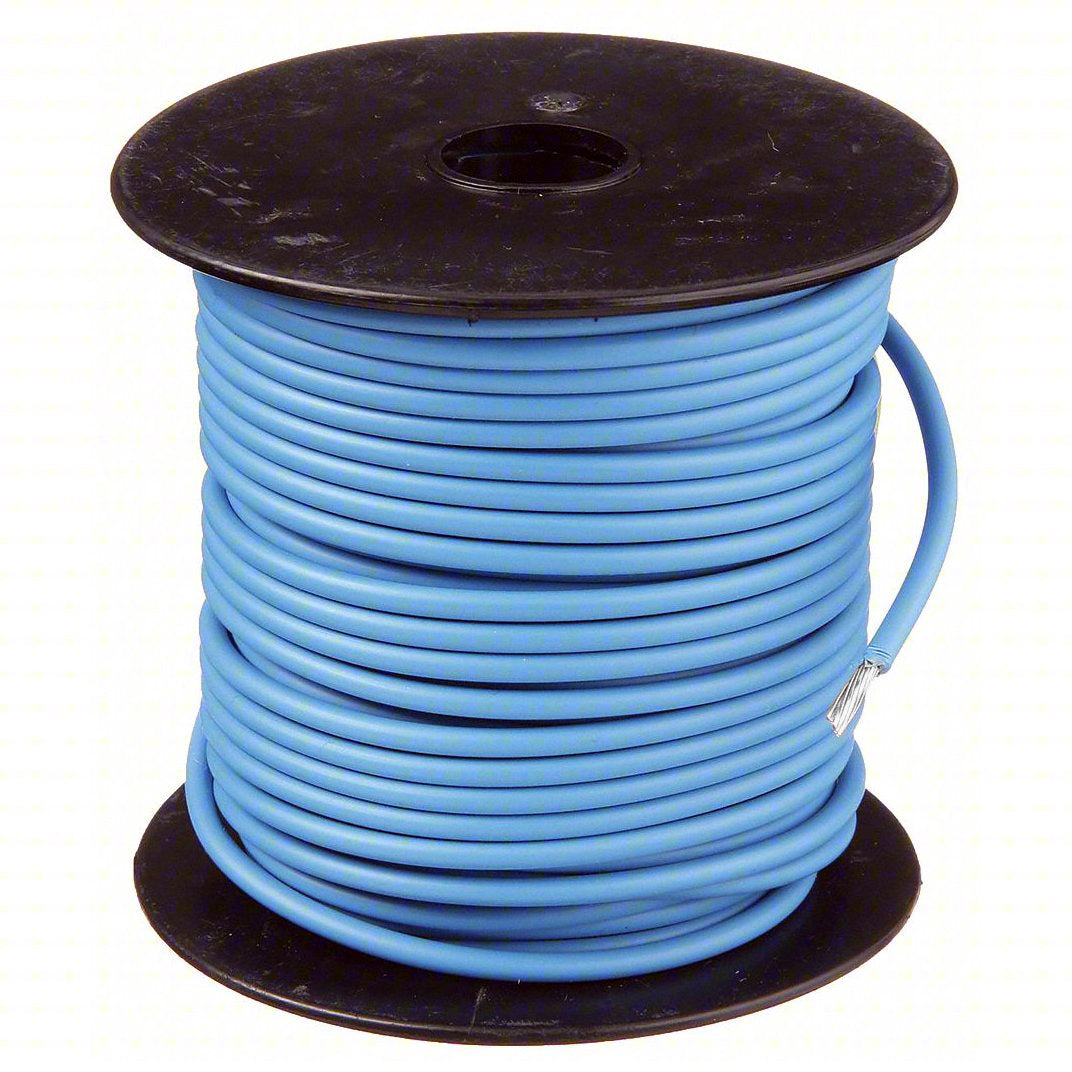

  • 16 Gauge Light Blue Marine Tinned Copper Primary Wire - 500 FT
  • 16 Gauge Gray Marine Tinned Copper Primary Wire - 500 FT
  • 16 Gauge Green Marine Tinned Copper Primary Wire - 500 FT
  • 16 Gauge Brown Marine Tinned Copper Primary Wire - 500 FT
  • 16 Gauge Blue Marine Tinned Copper Primary Wire - 500 FT
  • 16 Gauge Black Marine Tinned Copper Primary Wire - 500 FT
1 1
SKU: PRYM16-25-BK

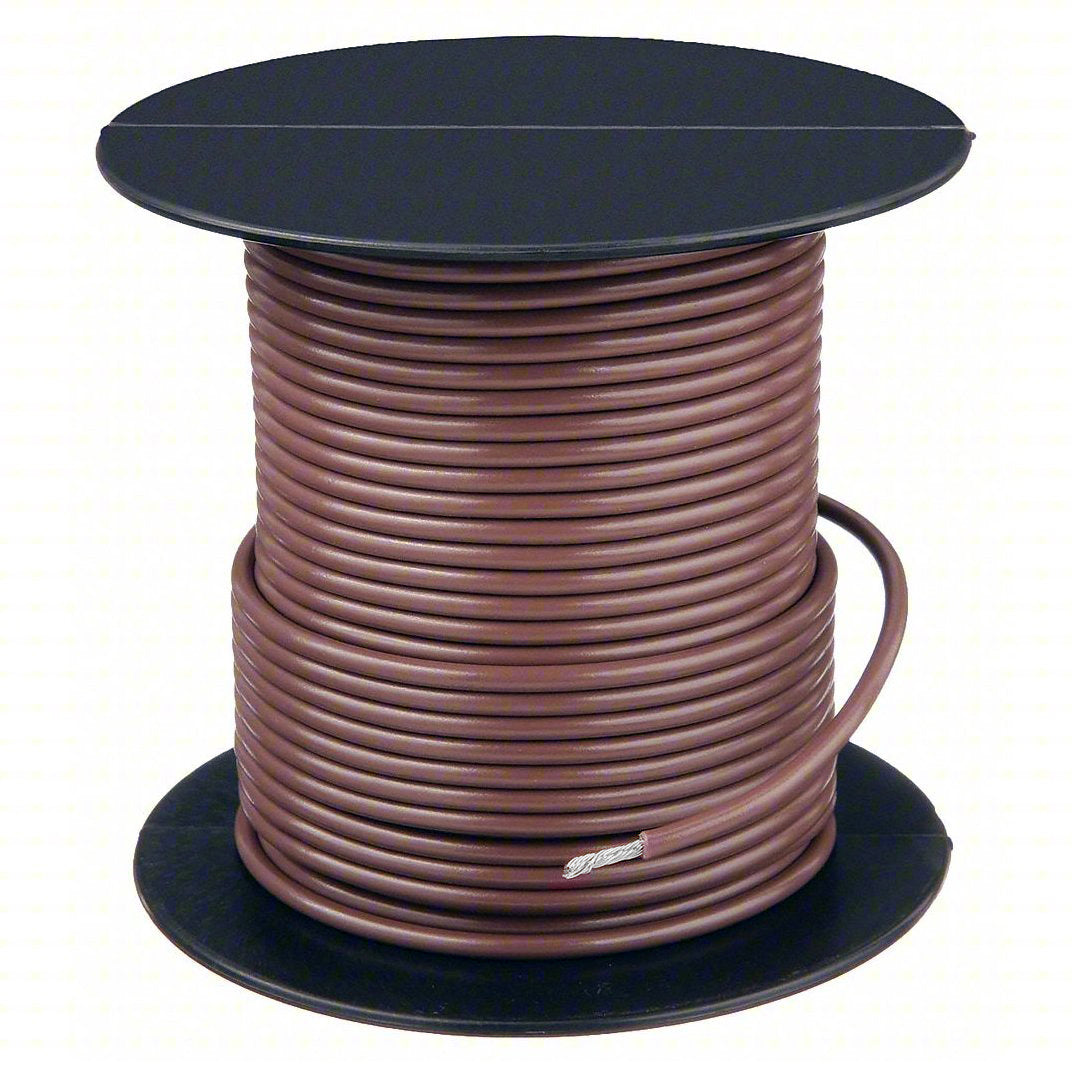

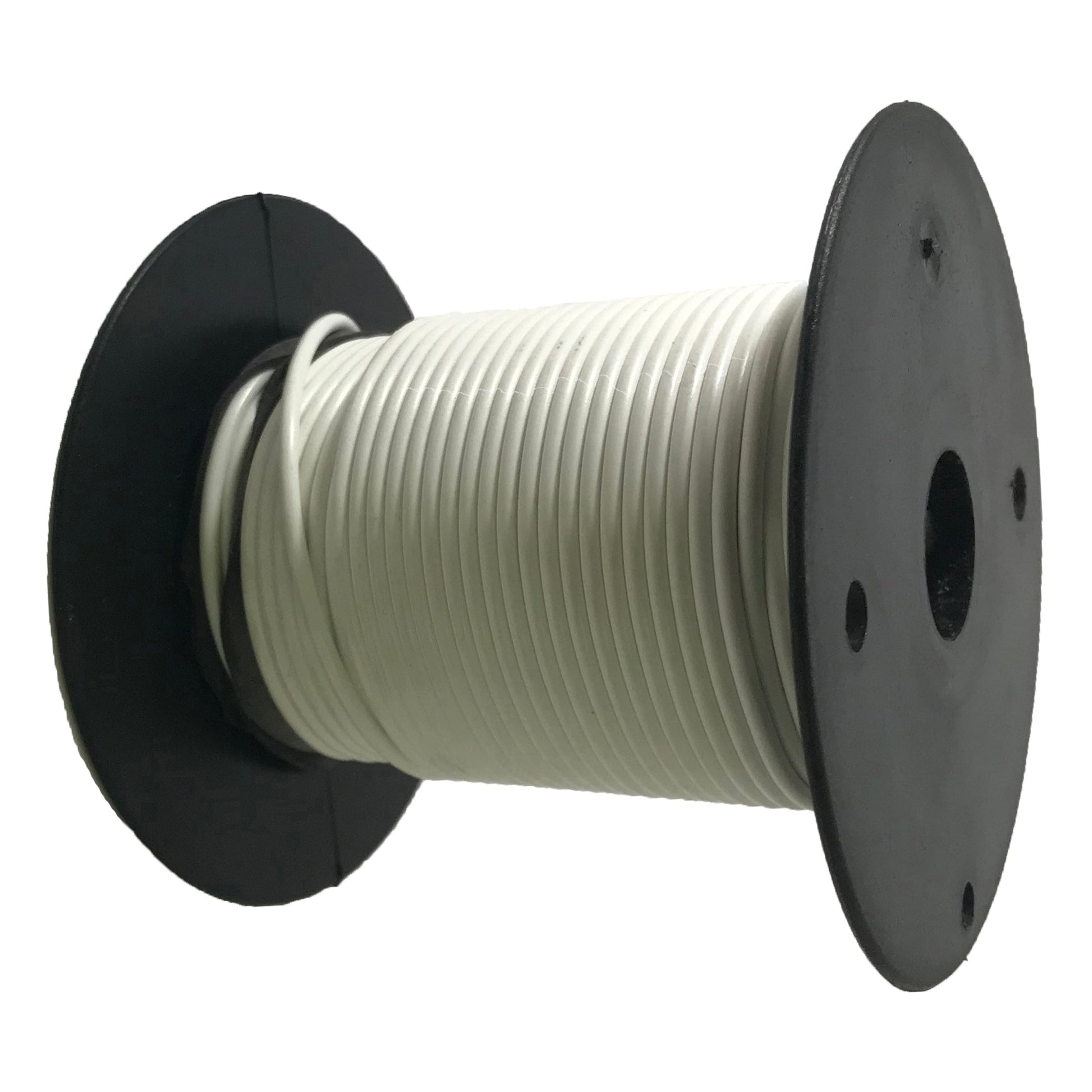

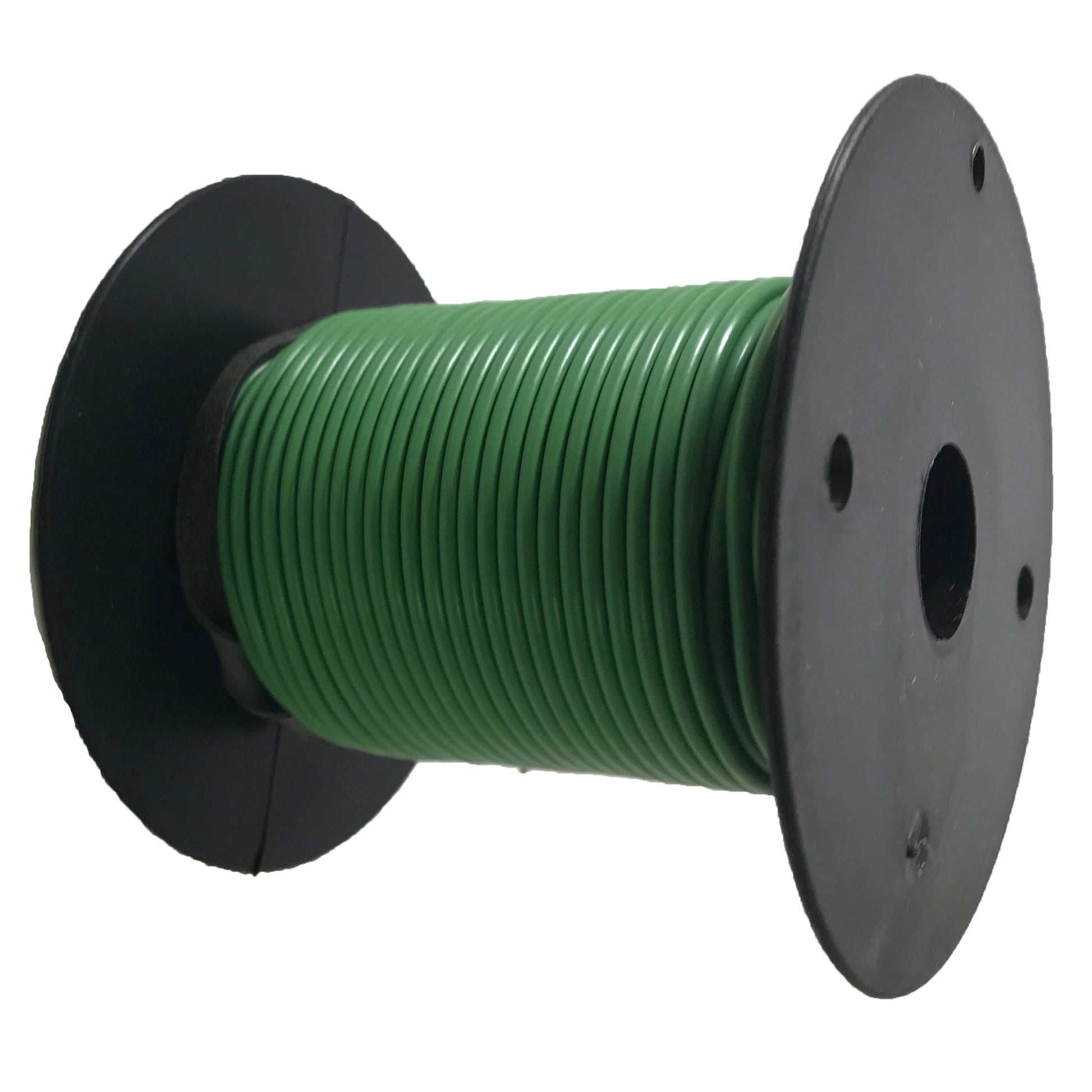

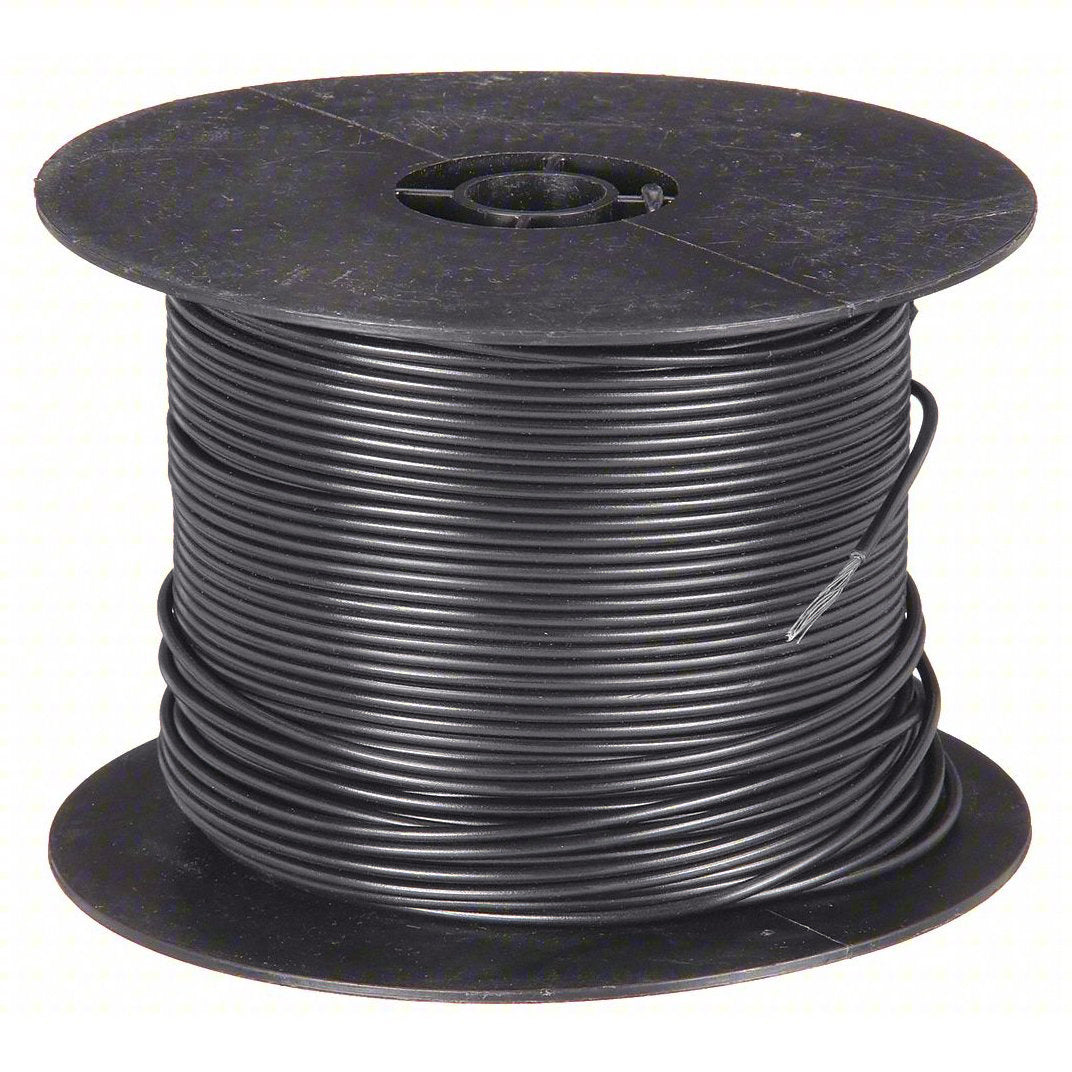

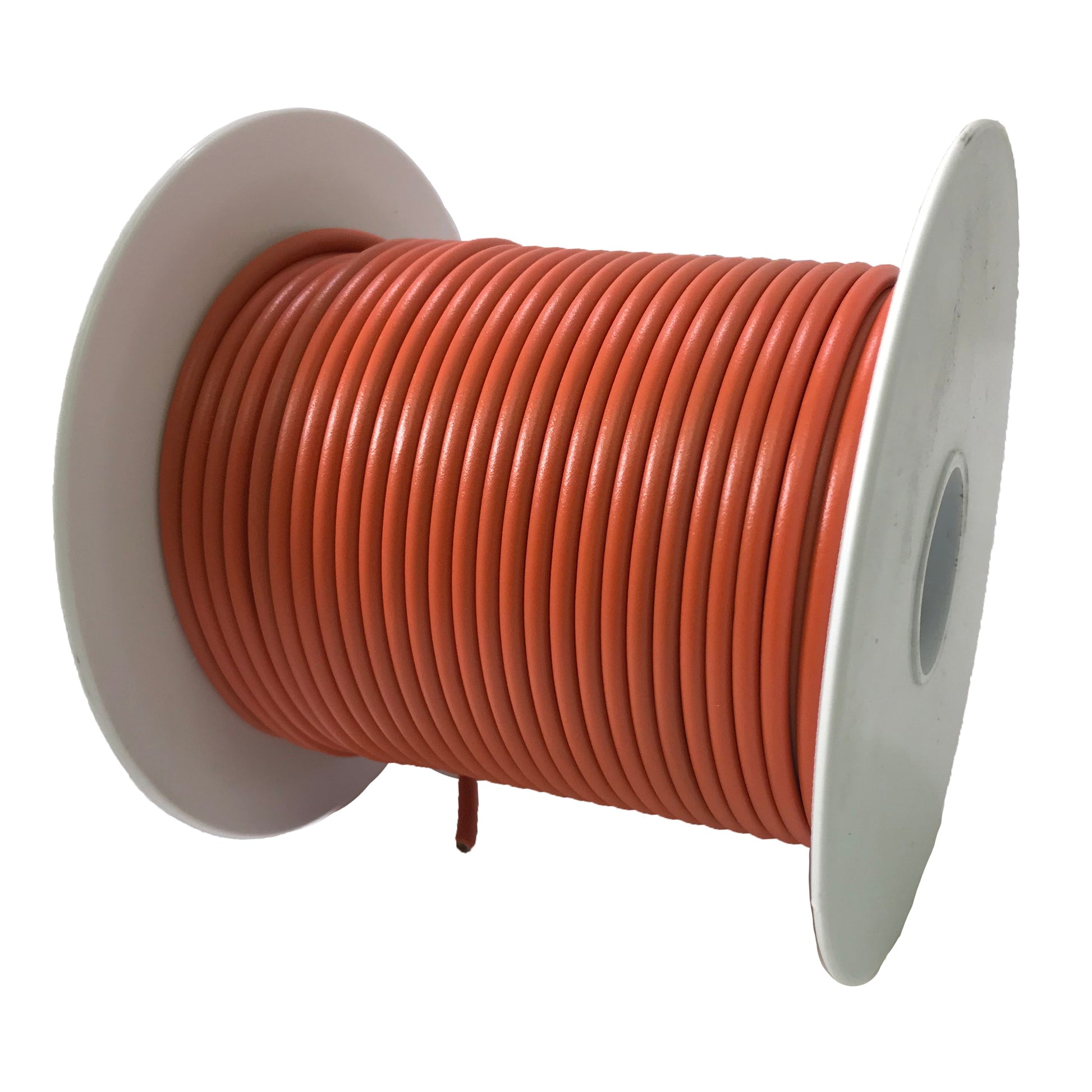

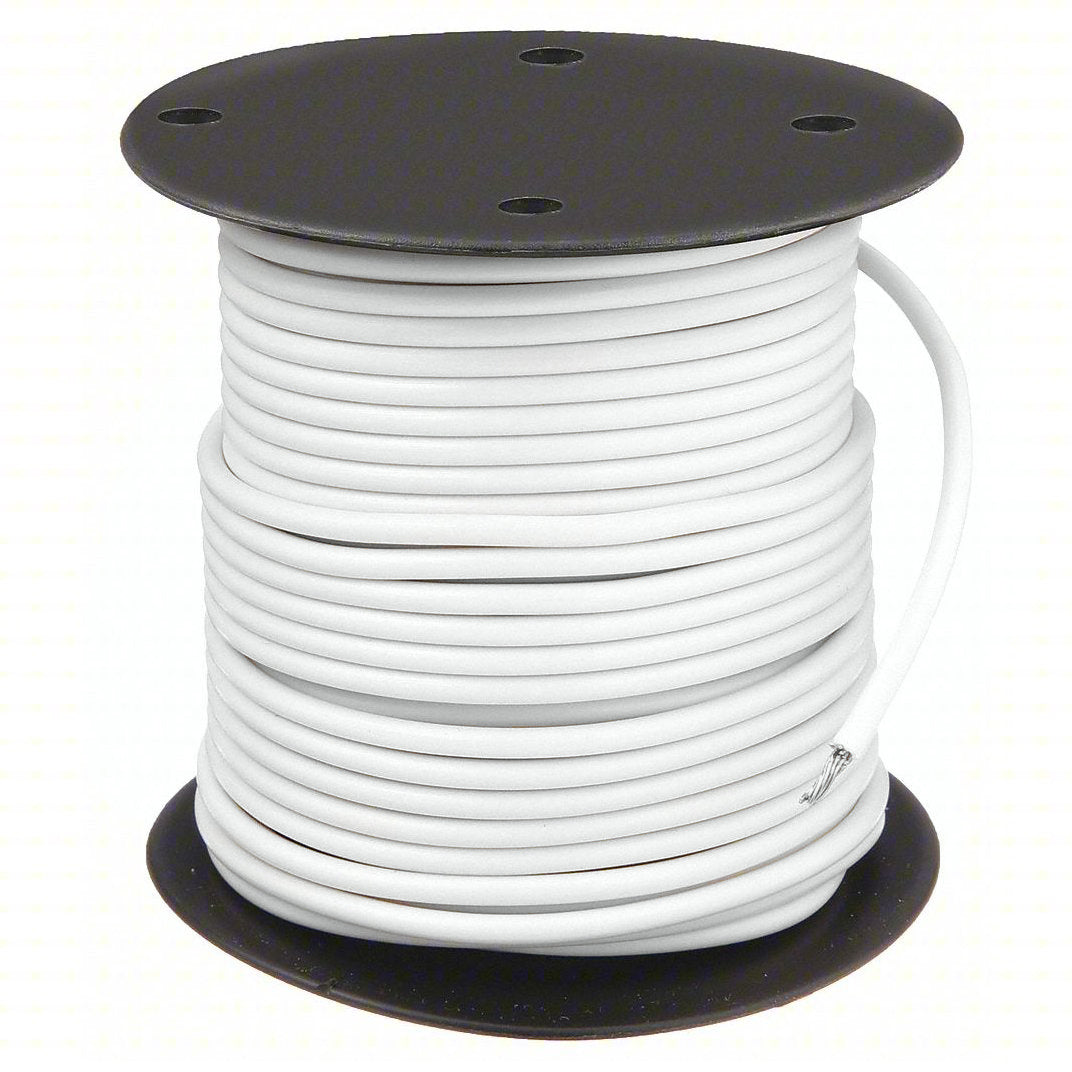

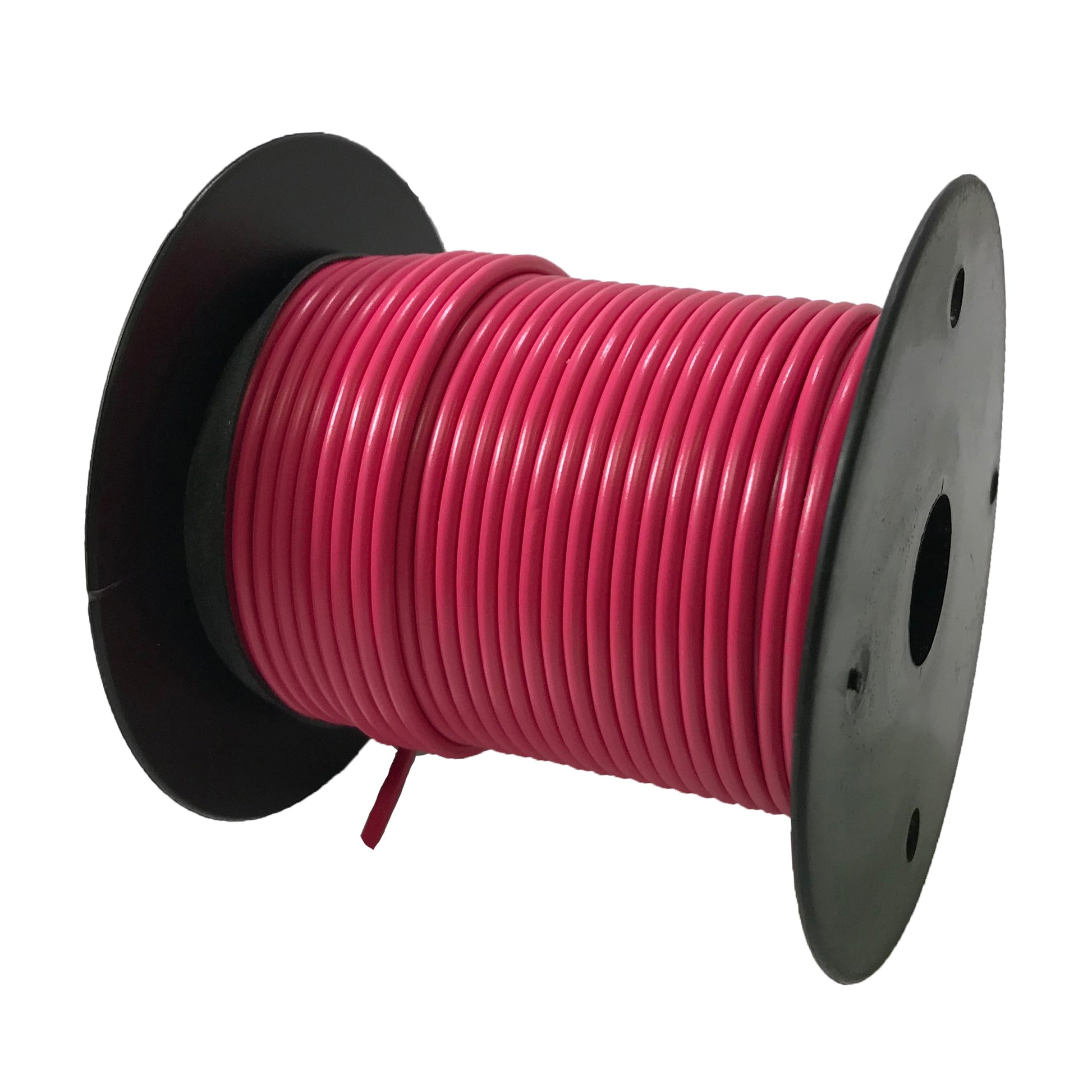

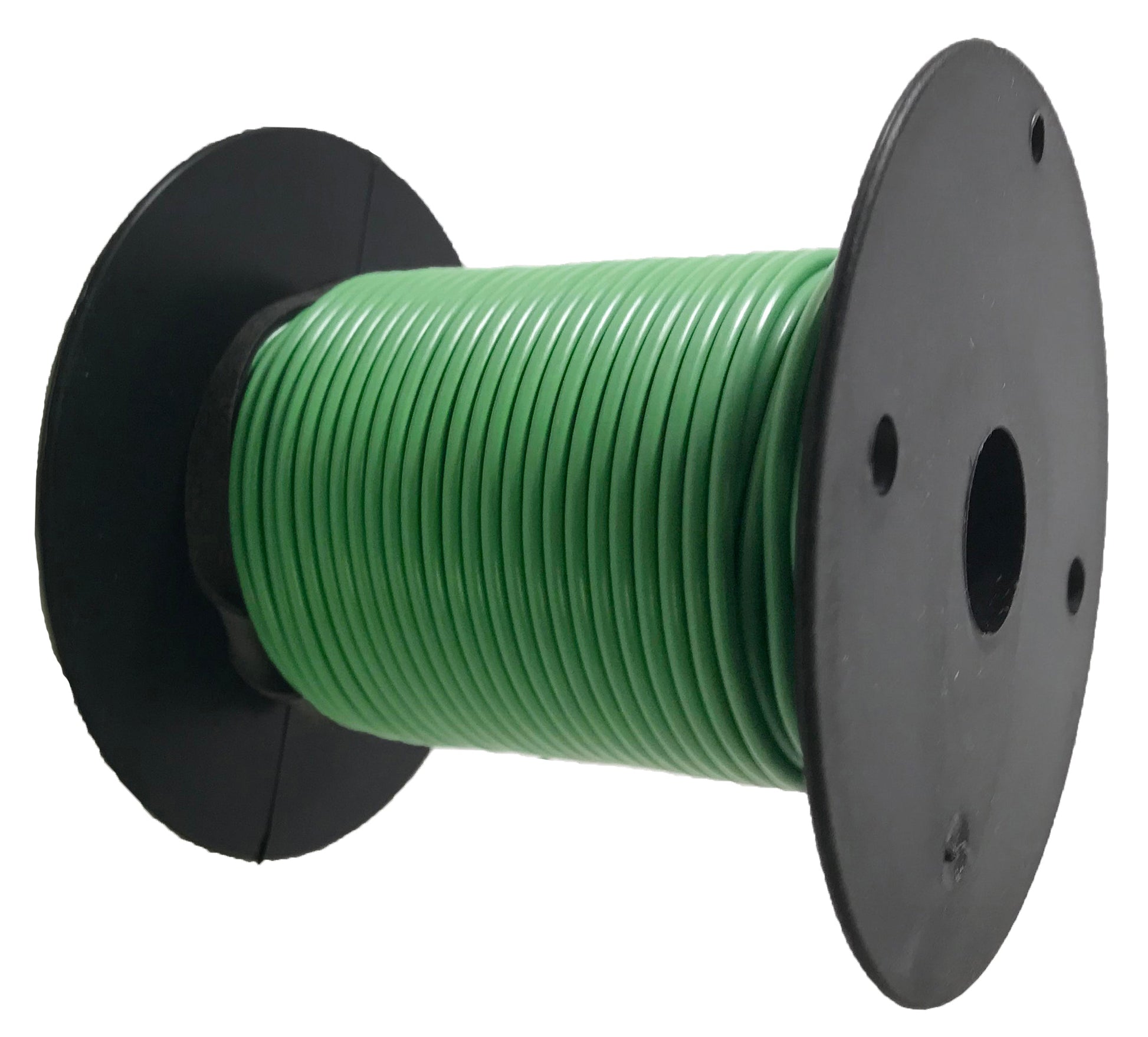

16 Gauge Marine Primary Wire - Tinned Copper

$7.99 USD
$7.99 USD
Sale Sold out
Choose Color
Choose Size

Product Description

Primary Wire for Marine Boat Automotive and Electronic Projects.
Gauge - 16 Gauge AWG
Outside Diamater - .125"
Stranding - 26 x .010"
Meterial - 100% Tinned Copper
Colors Available - Black, Blue, Brown, Green, Grey, Light Blue, Light Green, Orange, Pink, Purple, Red, Tan, White & Yellow

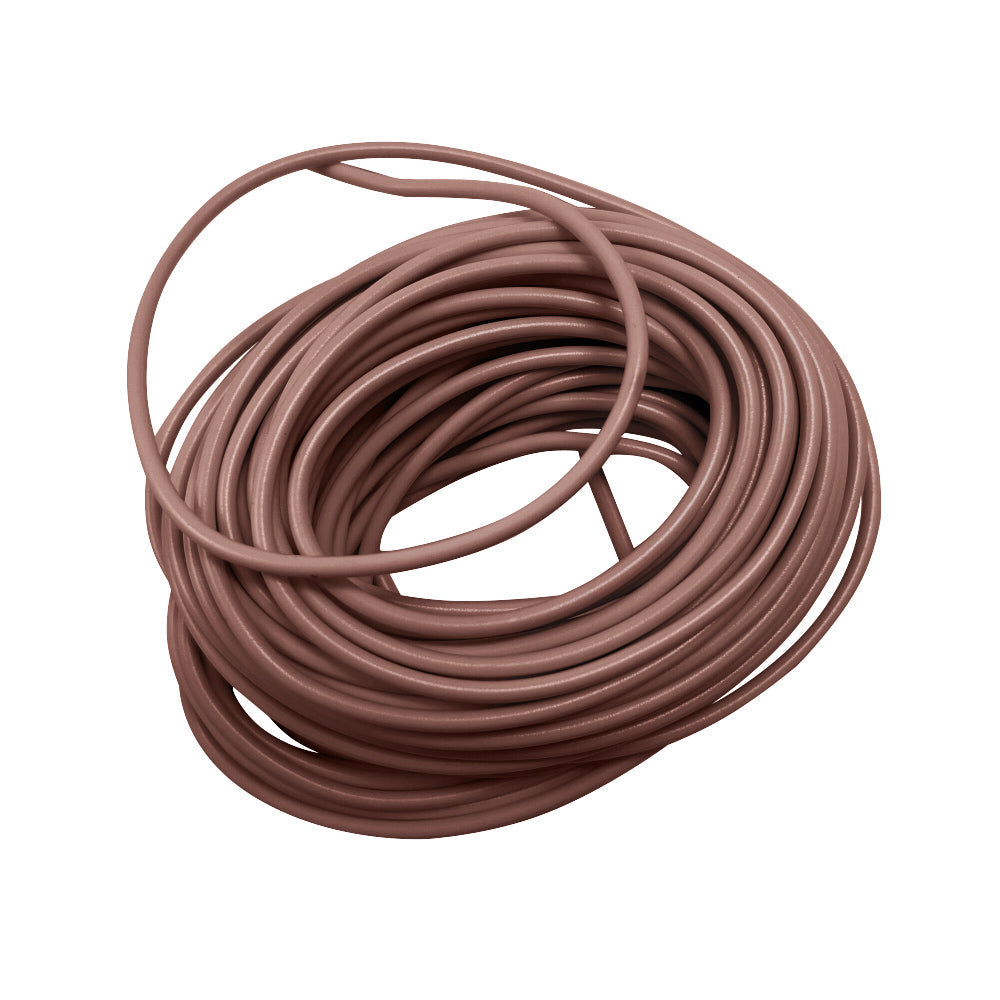

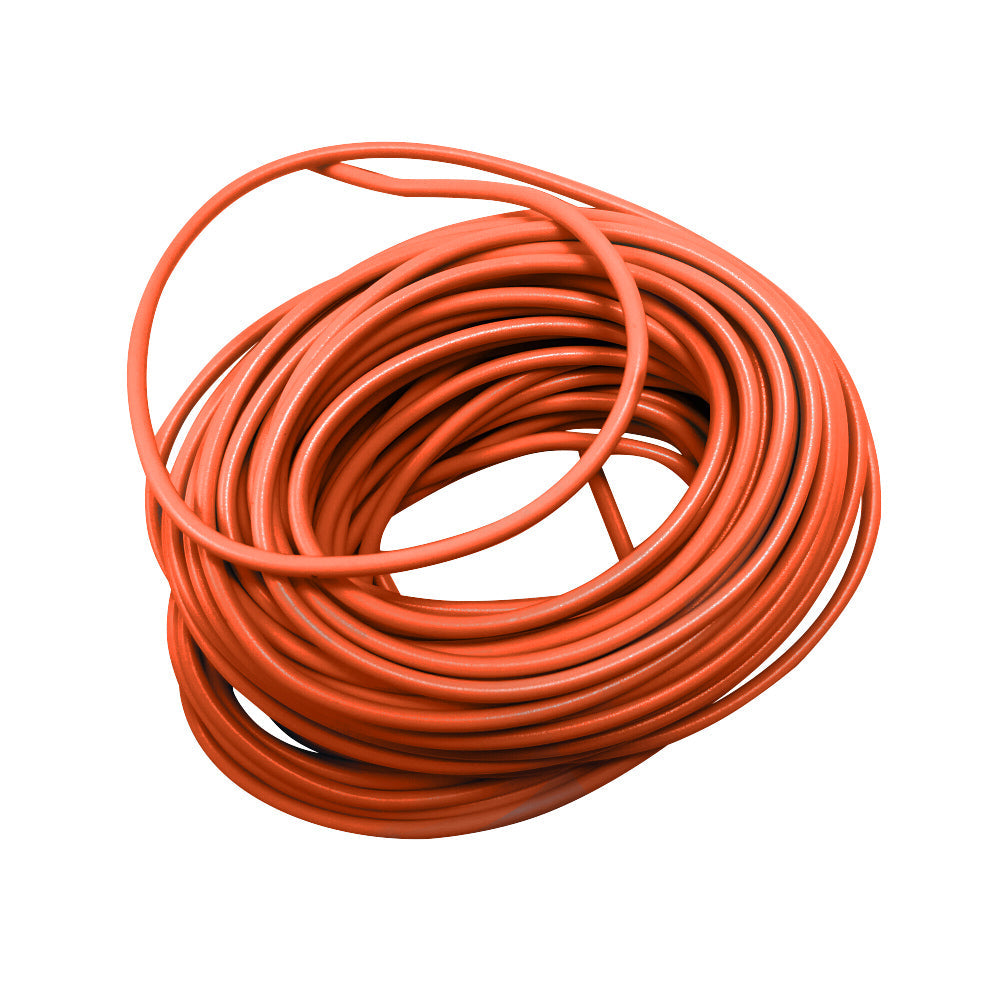

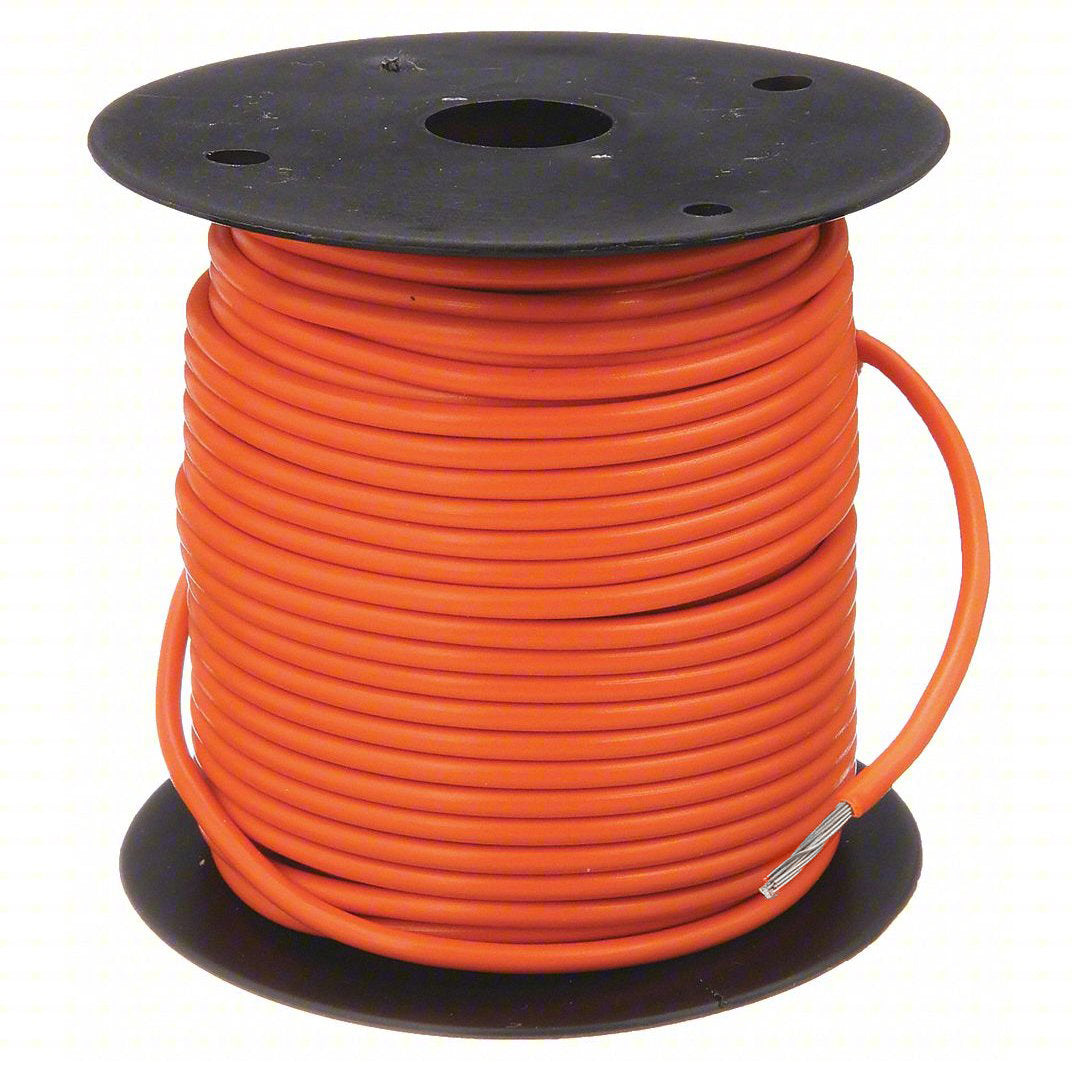

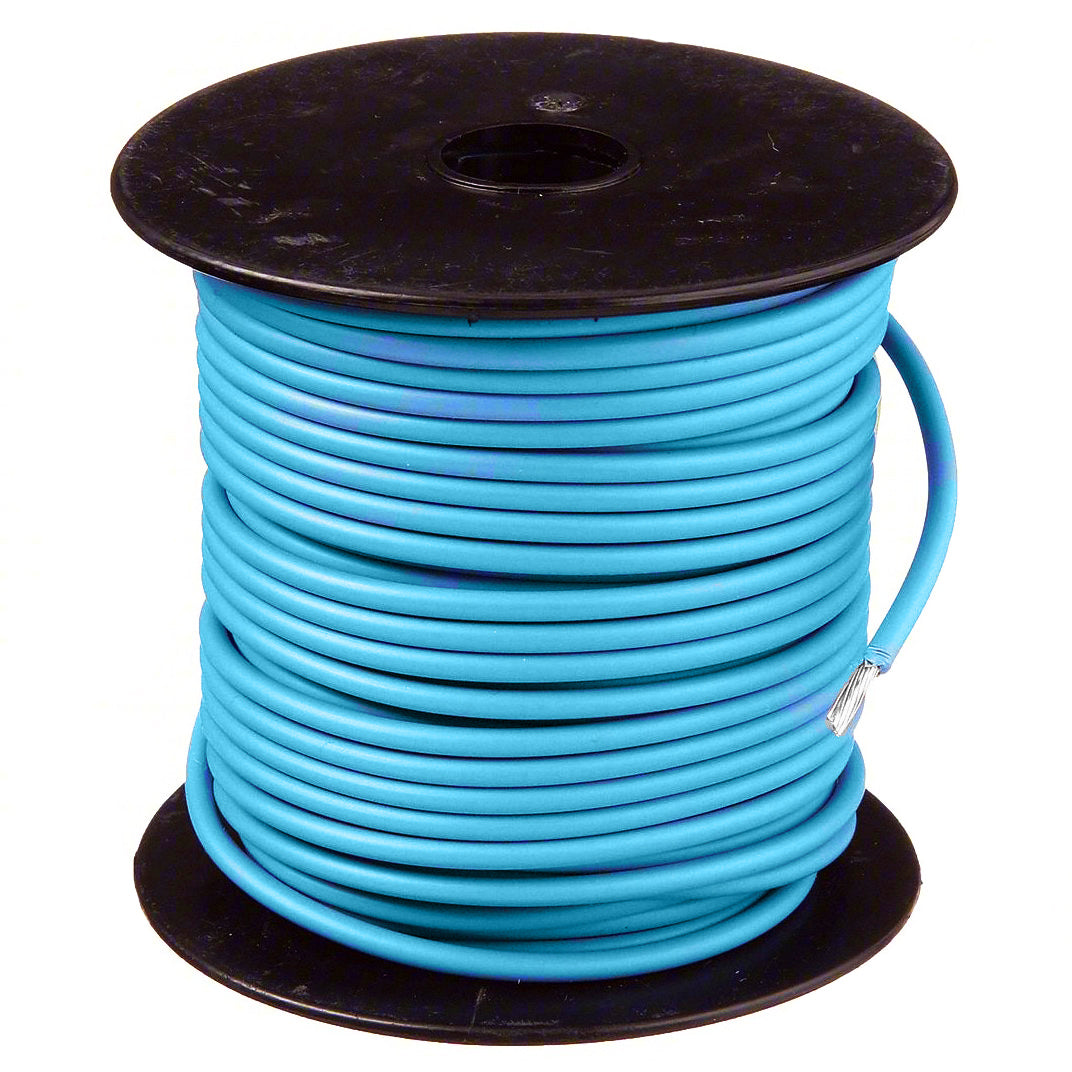

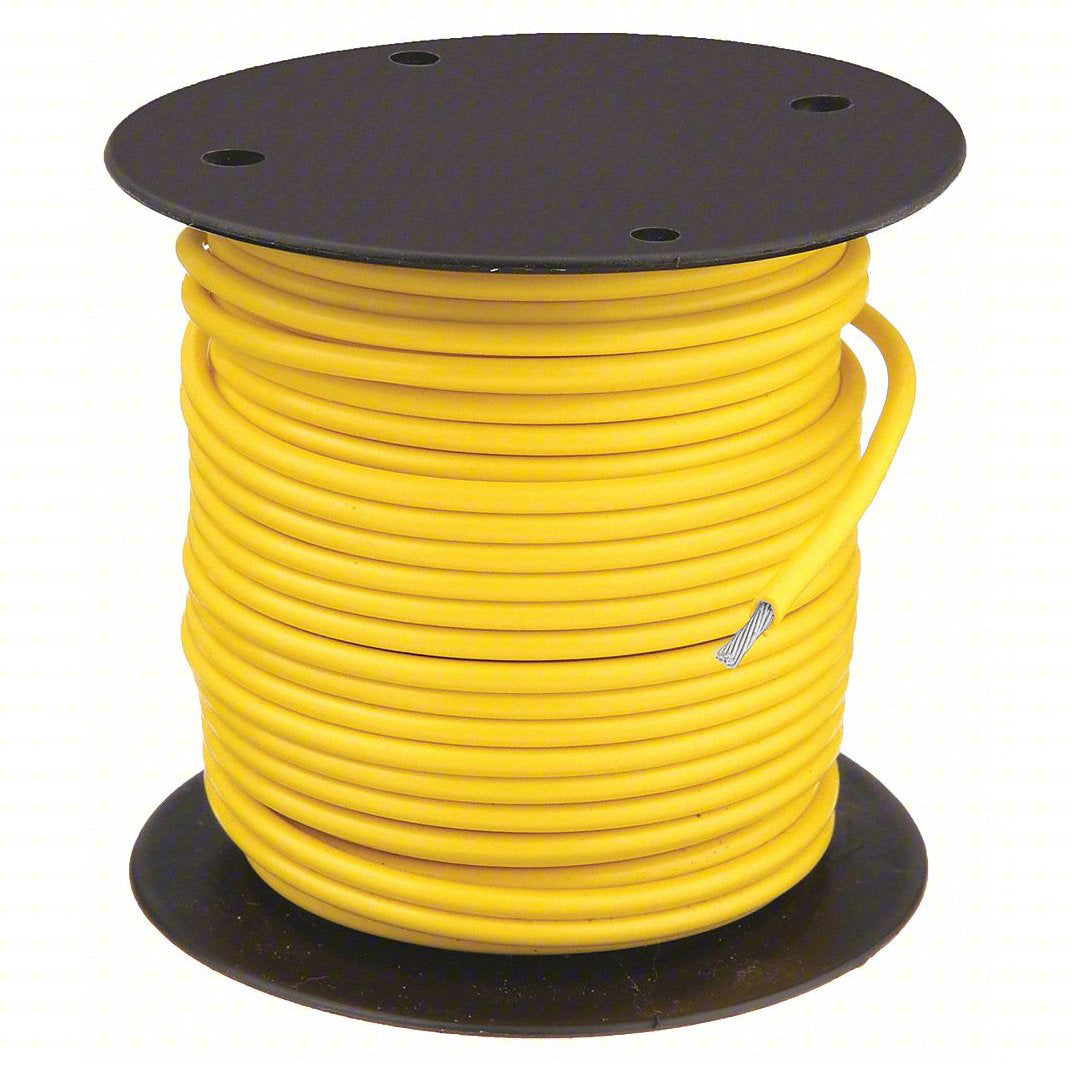

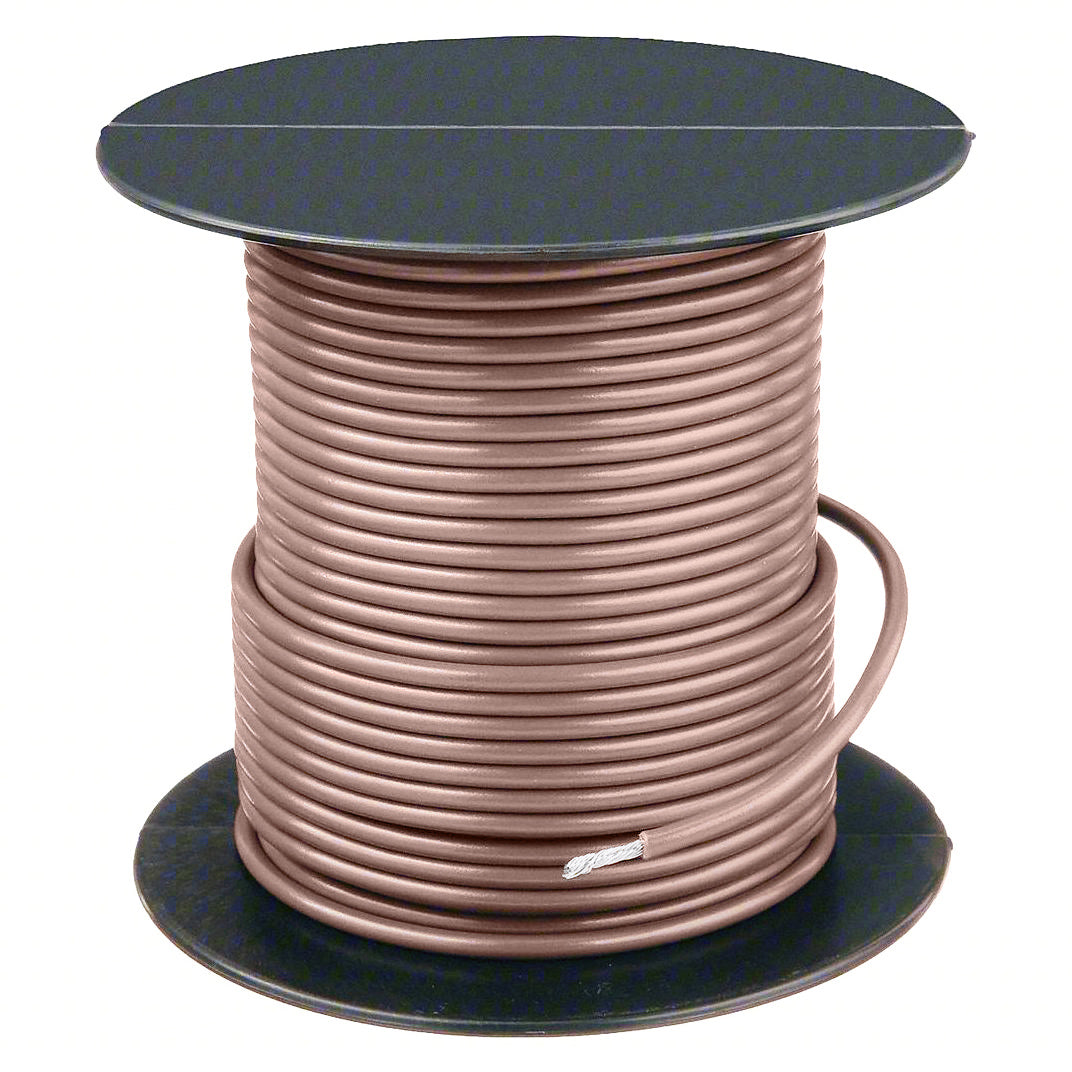

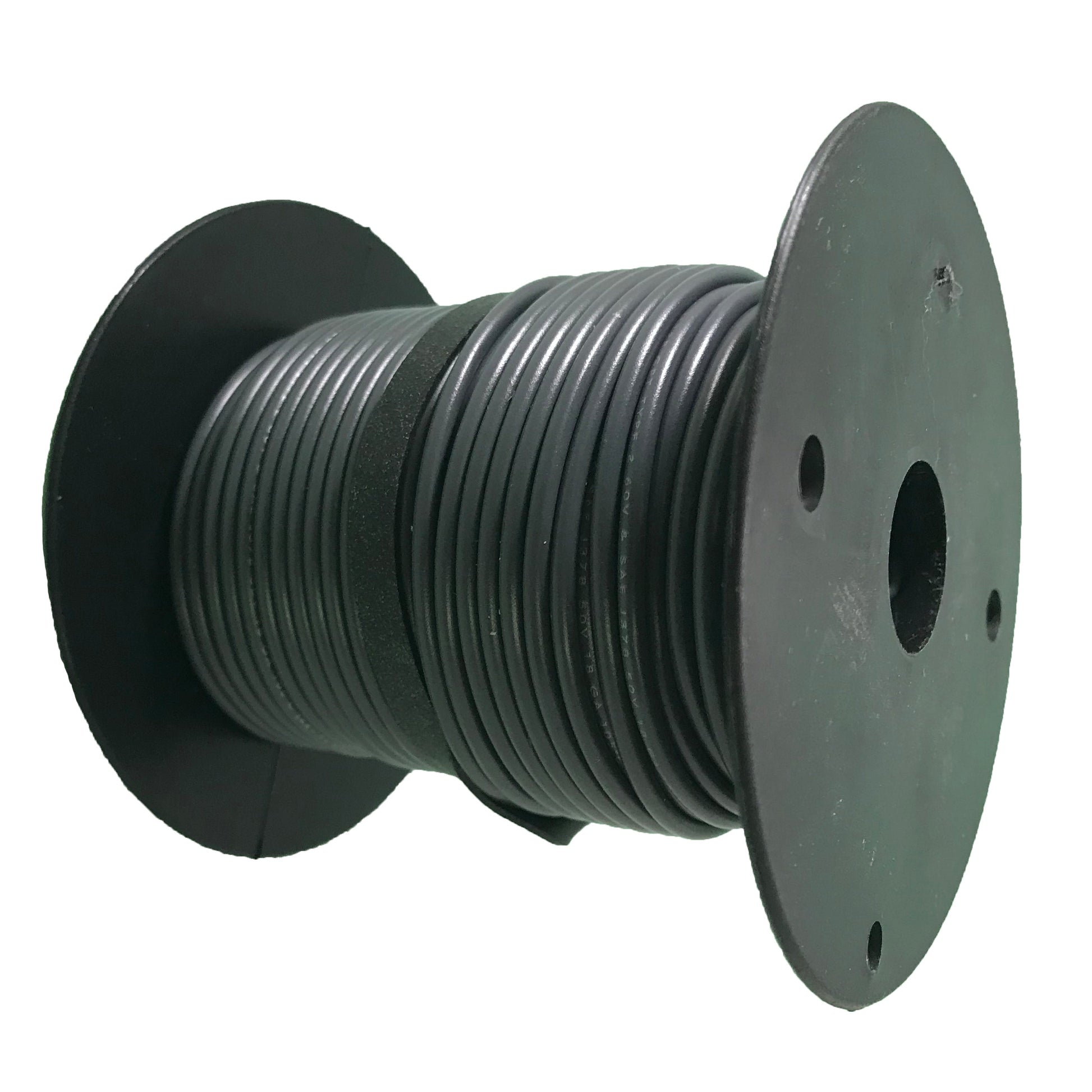

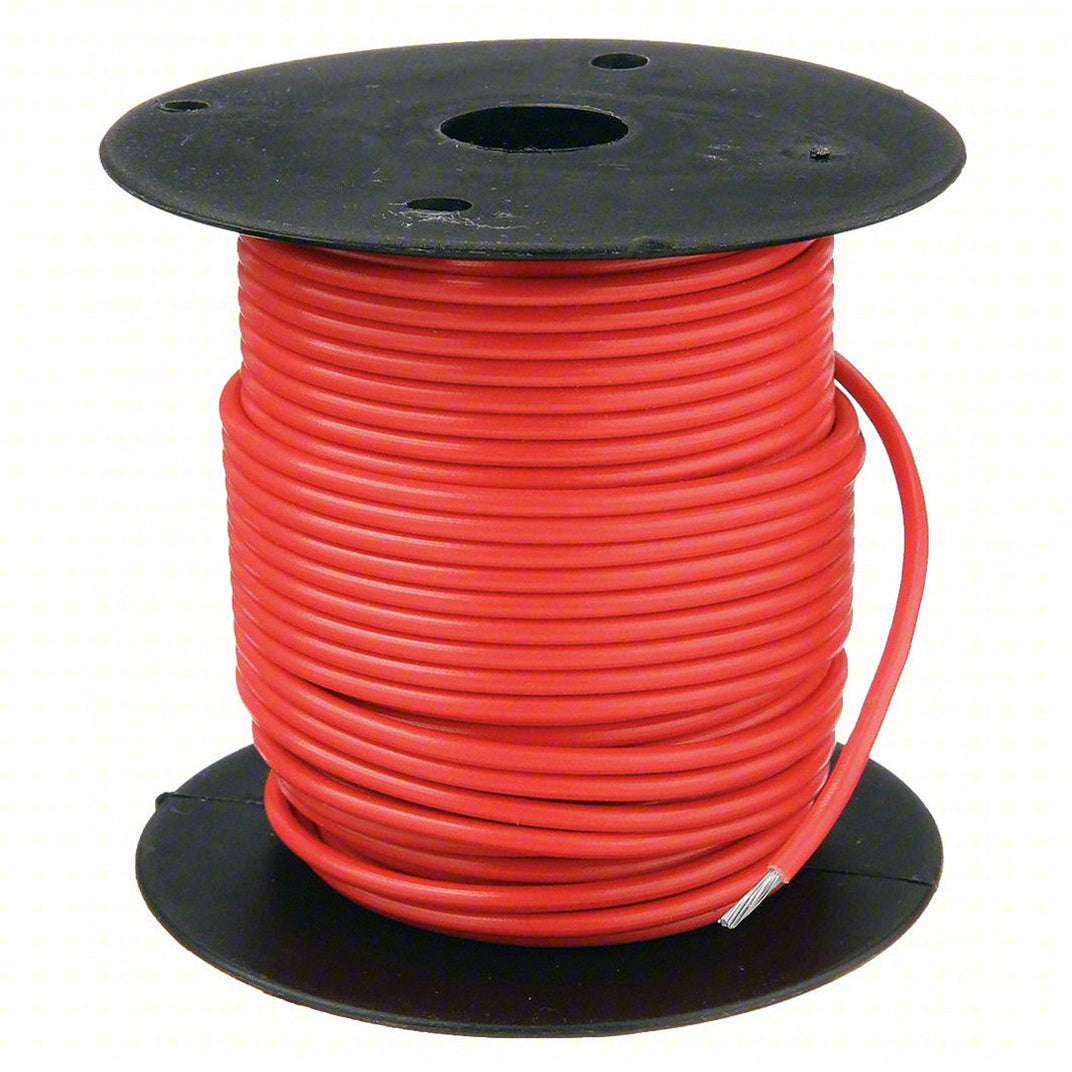

Choose from 3 Different Lengths - 25 FT Coil, 100 FT Spool, 500 FT Spool
Made in USA

COMPLIANCES:
UL Standard 1426 BC-5W2
ABYC: E-11.14
UL: MTW
Coast Guard: 33 CFR 183.401 Subpart 1-Electrical Systems
Temperature Rating: 105 °C Dry, 75 °C Wet

CHARACTERISTICS:
Conductor: Type III annealed finely stranded tinned copper ASTM B172 Class K
Insulation: -20 °C to 105 °C Flexible, Color Coded PVC
Voltage Rating: 600-V
Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Our marine wire is designed to handle the harshest marine environments. It is manufactured to meet and exceed the most stringent specifications. This marine Primary wire is constructed to achieve the highest level of quality. Built from Type III class K tinned copper, this wire offers excellent flexibility. The tinned copper also resists corrosion adding to the life of the wire.

What about the insulation? After the copper is tinned it is then insulated with a durable and flexible PVC jacket. The jacket makes this marine wire resistant to alkali, abrasion, acid, gas, oil, flame and moisture. What standards and compliances does this wire meet? Our marine wire exceeds the requirements and standards of UL, ABYC and NMMA.

FEATURES:
Stranded, tinned copper conductors
Highly flexible color coded insulation

PRINT:
E157097 (UL) 16 AWG 600V BC-5W2 105°C DRY, 75° WET OR MTW OR AWM 1015/1230 (1028/1231 -8AWG ONLY) VW-1 OIL RESISTANT I

APPLICATIONS:
Point to point wiring
Internal wiring of panels and motors
