SKU: IBRSSY16

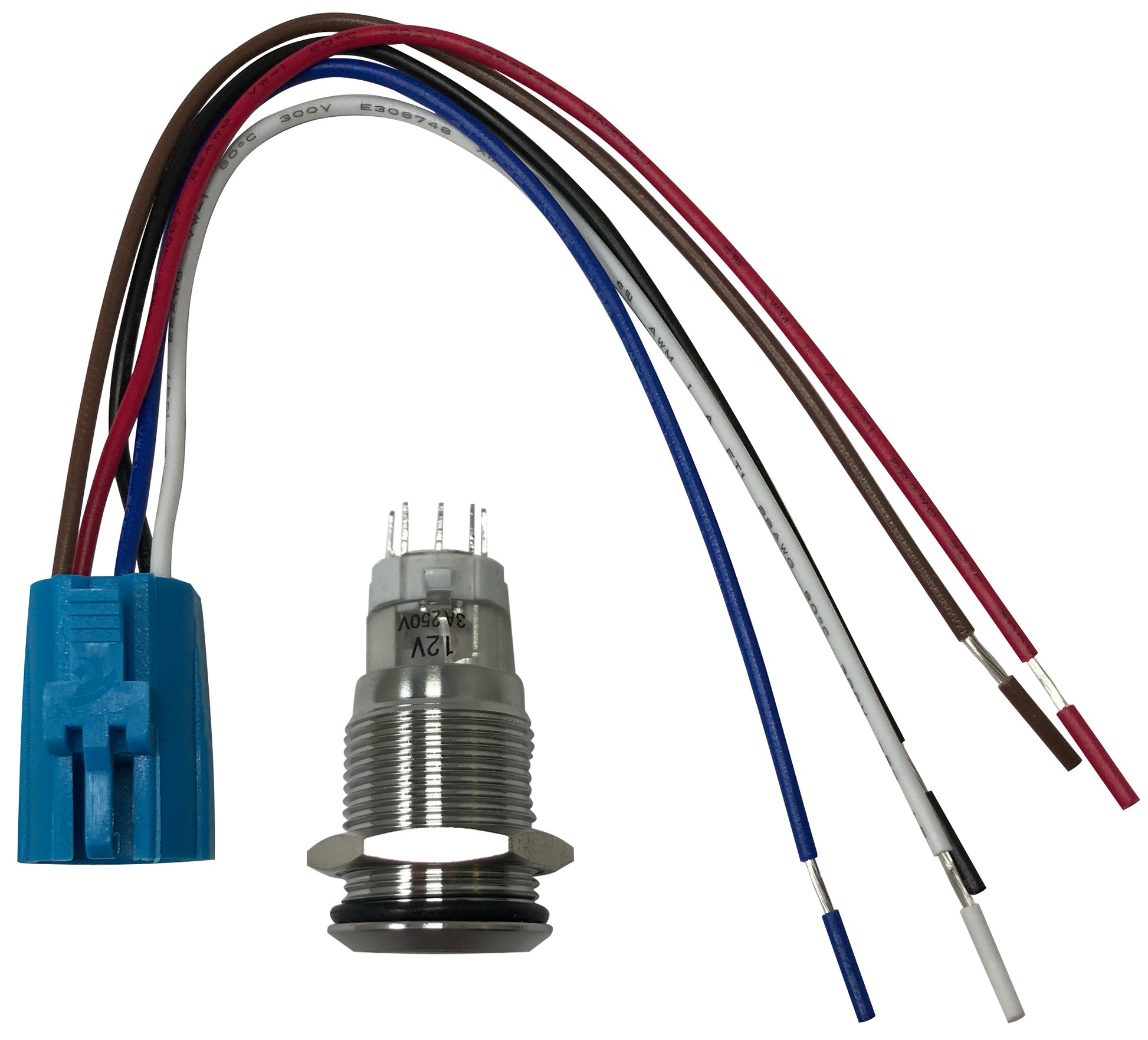

Yellow LED Stainless Metal Latching Push Button Switch On Off 12V 16mm Mounting

Regular price $11.90 USD
Sale price $11.90 USD Regular price
Sale Sold out

Product Description

  • Stainless round switch
  • Latching Switch - On - Off
  • Includes harness
  • IP67
  • Switch rating - 3A/250VAC
  • LED rating - 15mA, AC/DC 12V
  • Mounting Hole Size - 5/8" (16mm)

Wiring color codes for the round stainless LED latching switches

Red–Connect to a 12 volt (+) switched wire. This is the (+) wire of the led ring
Black –Connect to( -)ground. This is the (-) ground wire of the led ring
White –Common input wire
Brown–Normally closed (N.C.) output. The Brown wire and the White wire are connected internally when the button is not pushed in.
Blue –Normally open (N.O.) output. The Blue wire and the White wire are connected internally when the button is pushed in.
