SKU: CBW57-PS-20A

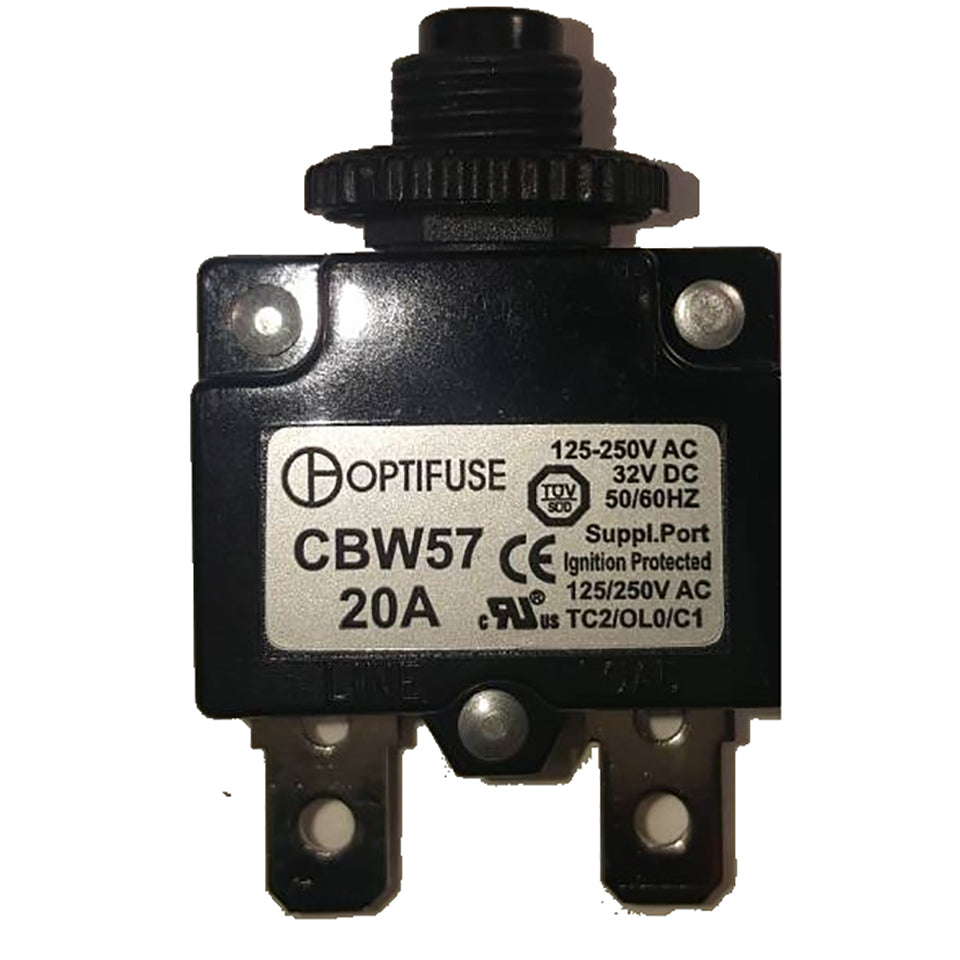

Miniature Line Voltage Circuit Breakers Push to Reset - Panel Mounted Design - 20 Amp

Regular price $4.48 USD
Sale price $4.48 USD Regular price
Sale Sold out

Product Description

Specifications: Push to Reset – Low Profile Amperage Range: 3A - 30A Voltage: 125 / 250 VAC, 32 VDC Frequency: 50-60 Hz Dielectric Strength: 1500 VAC / 1 Minute Interrupt Rating: 3-30A 1000A @ 125/250 VAC 3-20A 400A @ 125/250 VAC 3-30A 300A @ 50 VDC 3-20A 400A @ 125 VAC, CSA Marine Ignition Protected to SAE J1171 and UL1500 Insulation Resistance: > 500M  Contact Endurance: 125 VAC @ 150% of Rated Current – 500 Cycles. Reset Time: within 60 seconds Body – Black Terminal Finish – Tin Plated Time-Current Characteristics @ 25C 100% 150% 200% 300% Max Max Min Max Min Max No trip 1hr 5s 25s 1.6s 4.8s
