SKU: TTB730N02

30 Point Tab Type Terminal Busbar - .250 1/4 Tab

$18.70 USD
$18.70 USD
Sale Sold out

Product Description

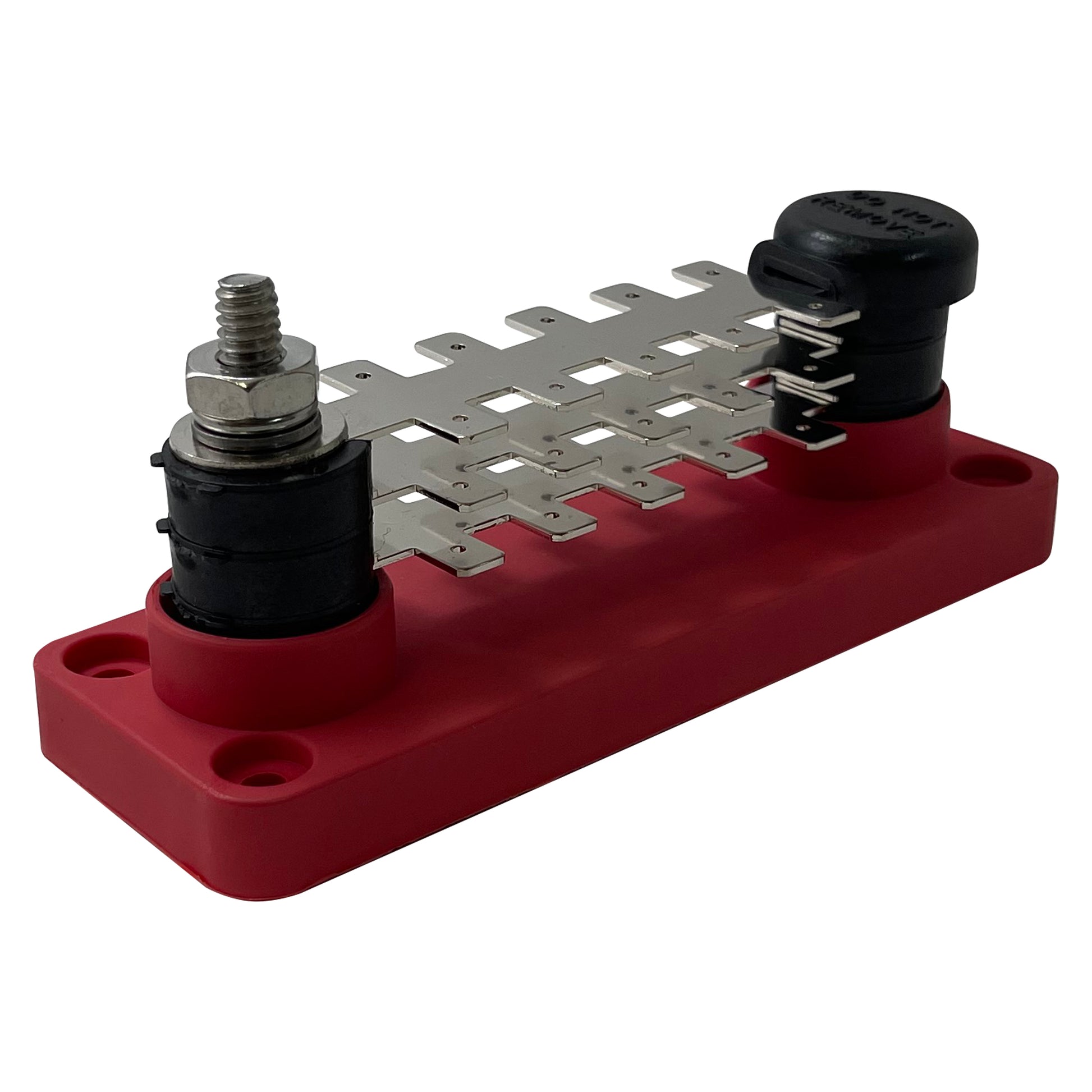

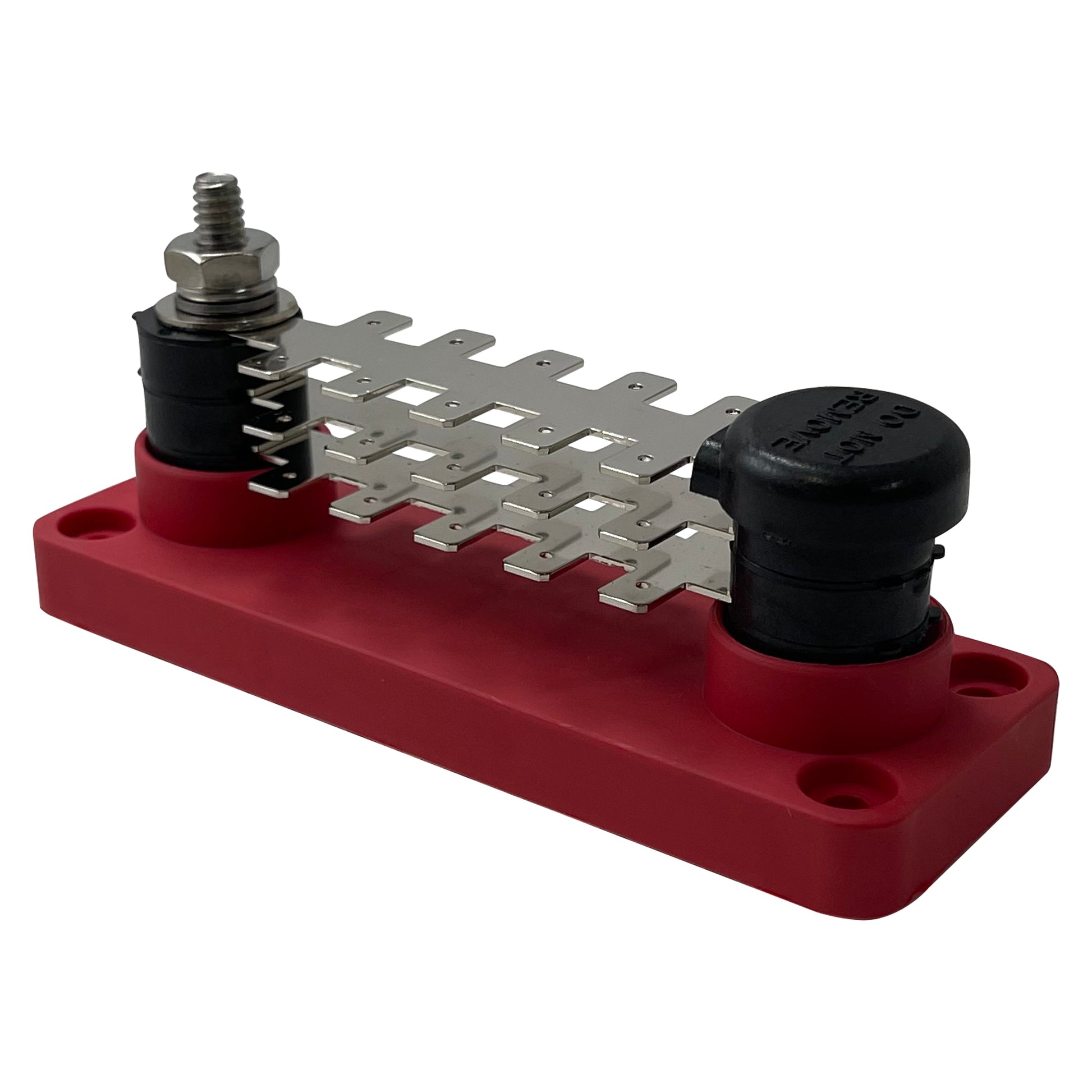

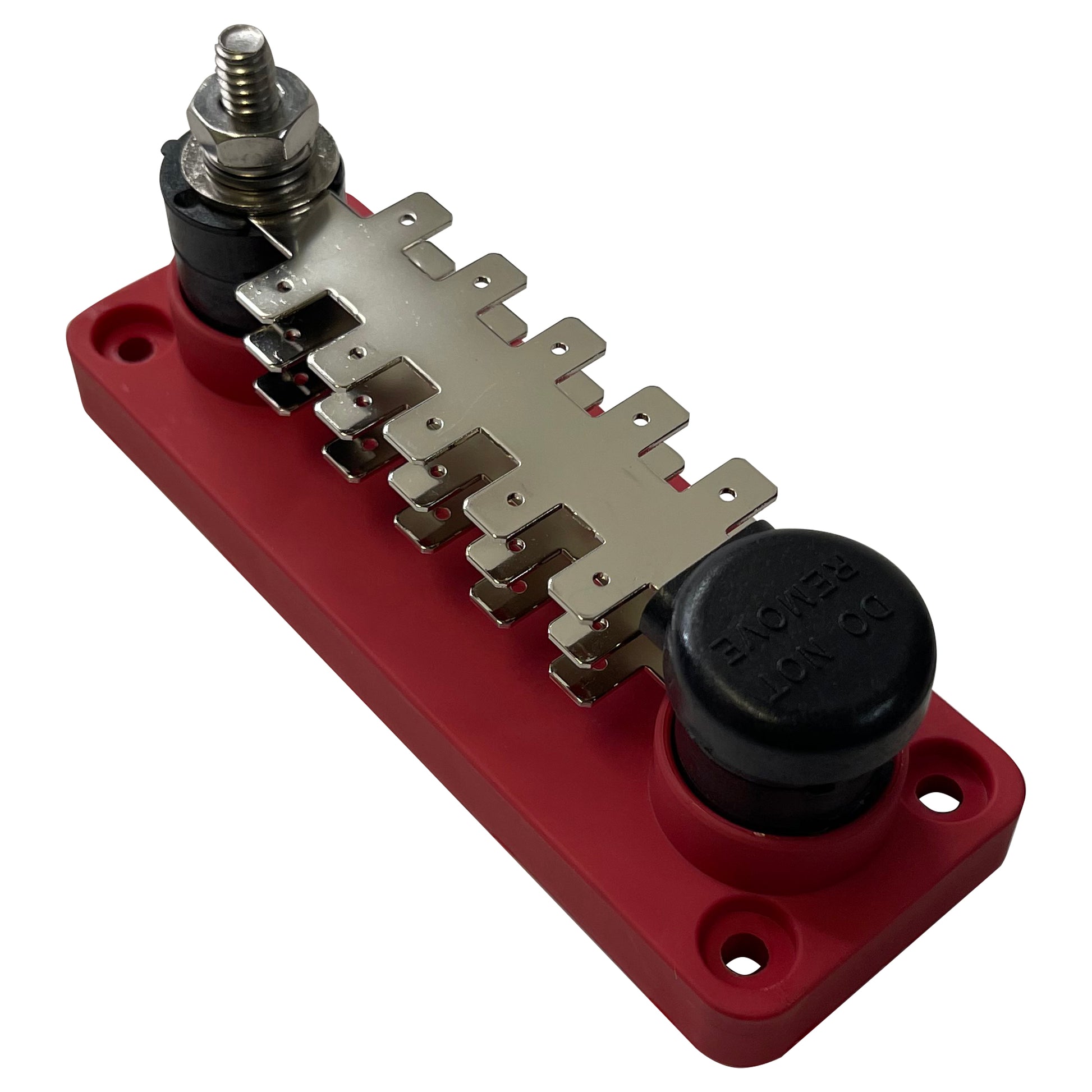

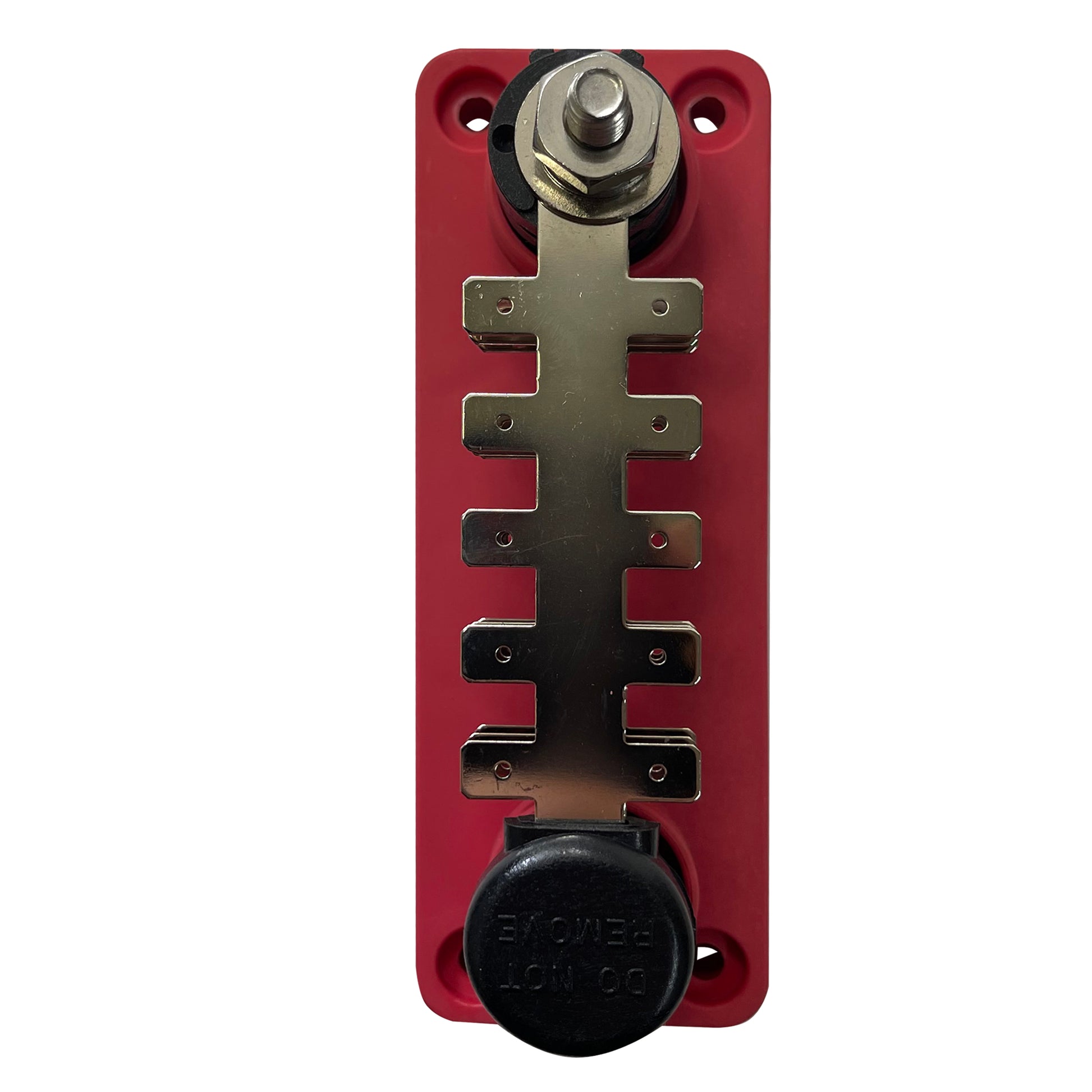

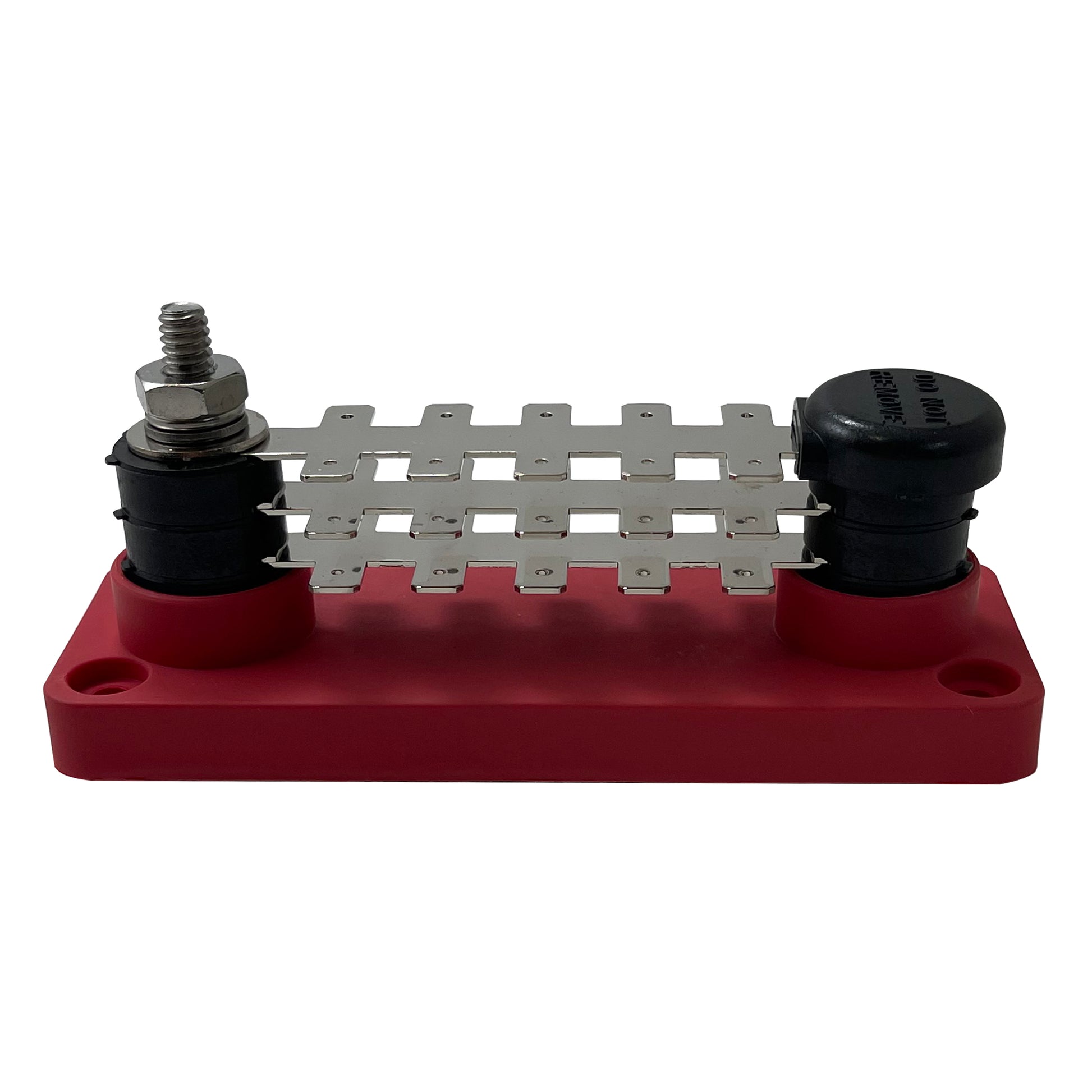

Tab-Type Busbar. This busbar accepts 'push-on' type quick-disconnect terminals. These 'push-on' type terminals greatly increase production speed and reduce labor costs.

  • Highly cost-effective solution for Fast Busbar Connections

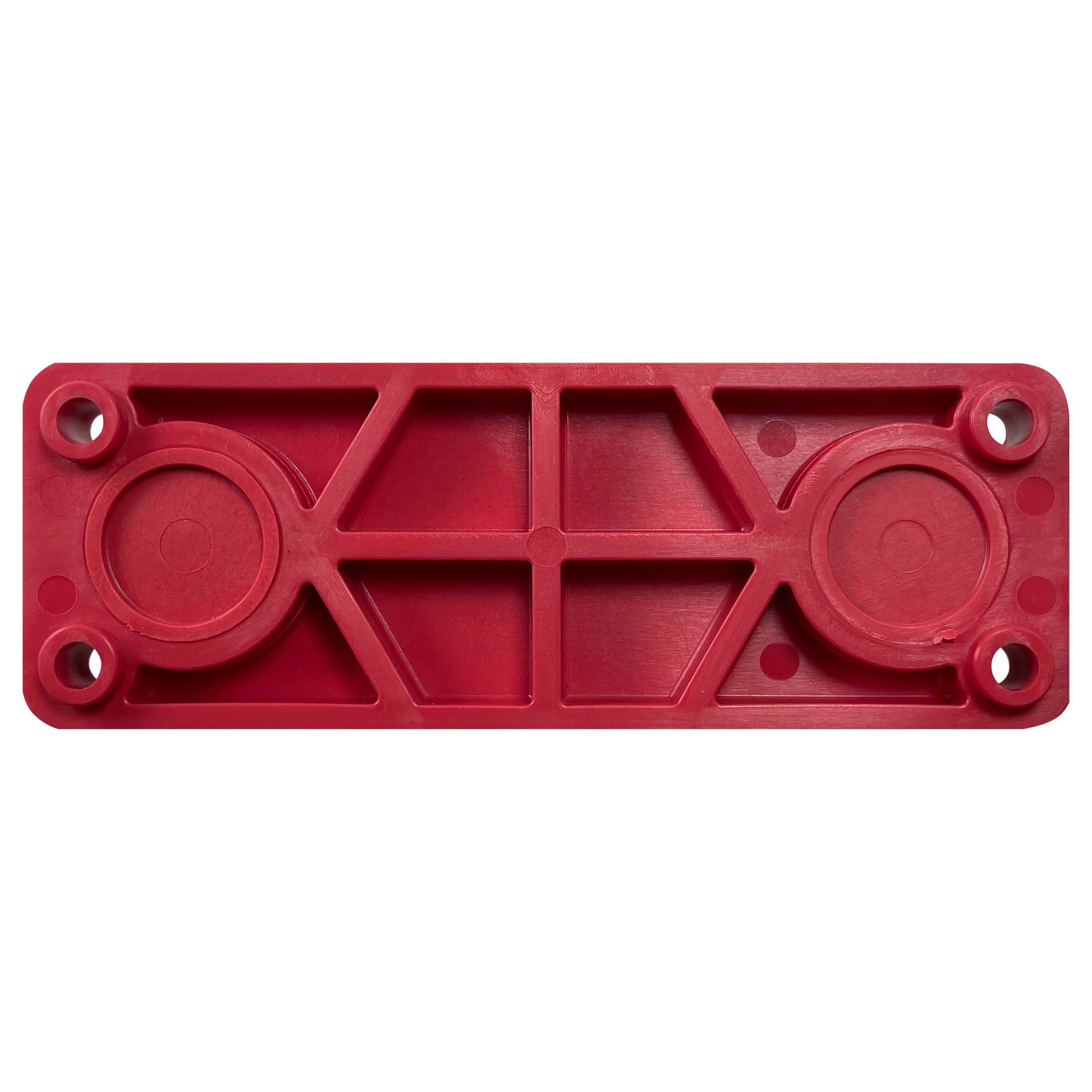

  • Base Material: Glass-filled nylon
  • Max Amperage: 55 amps @ 12 VDC per tier
  • 20 amps per connection
  • Max Voltage: 48 VDC
  • Base Colors Available: Red
  • Optional cover kit protects conductive areas from accidental shorts, complying with ABYC / ISO / USCG requirements
  • Connection Post Material: Stainless Steel
  • Lock Washer Material: Stainless Steel
  • Flat Washer Material: Stainless Steel
