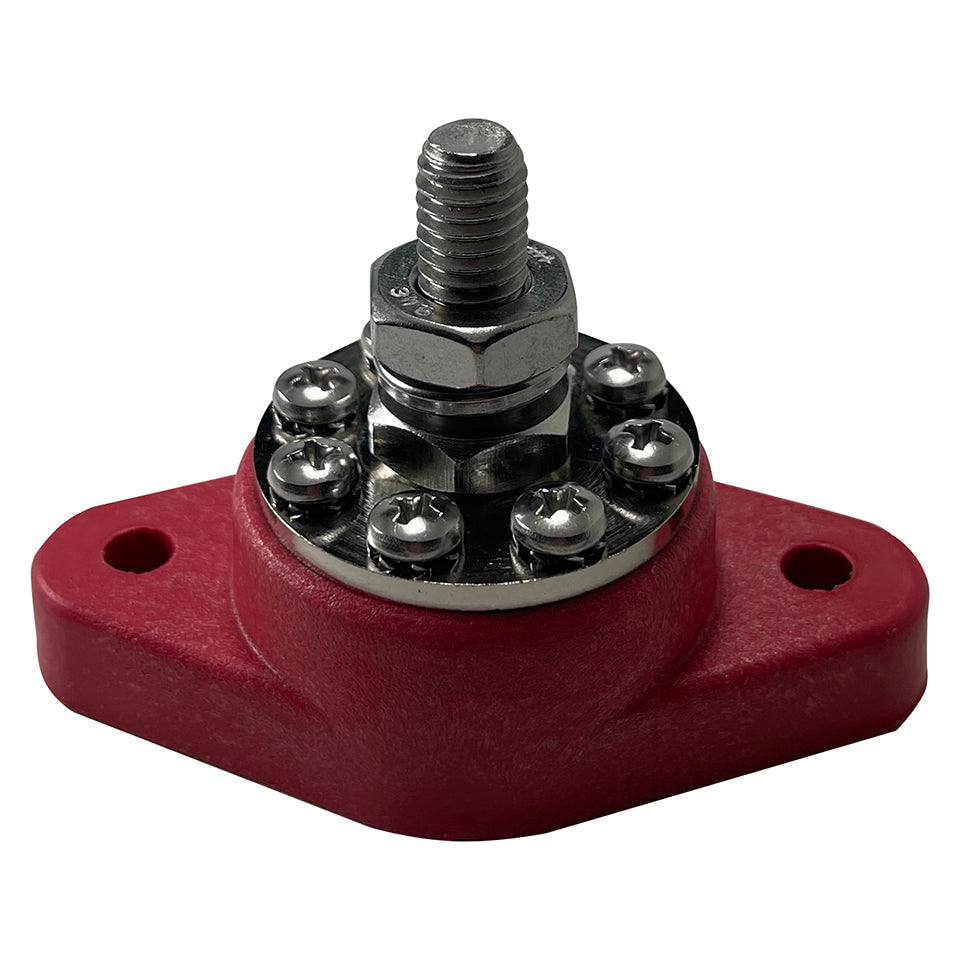

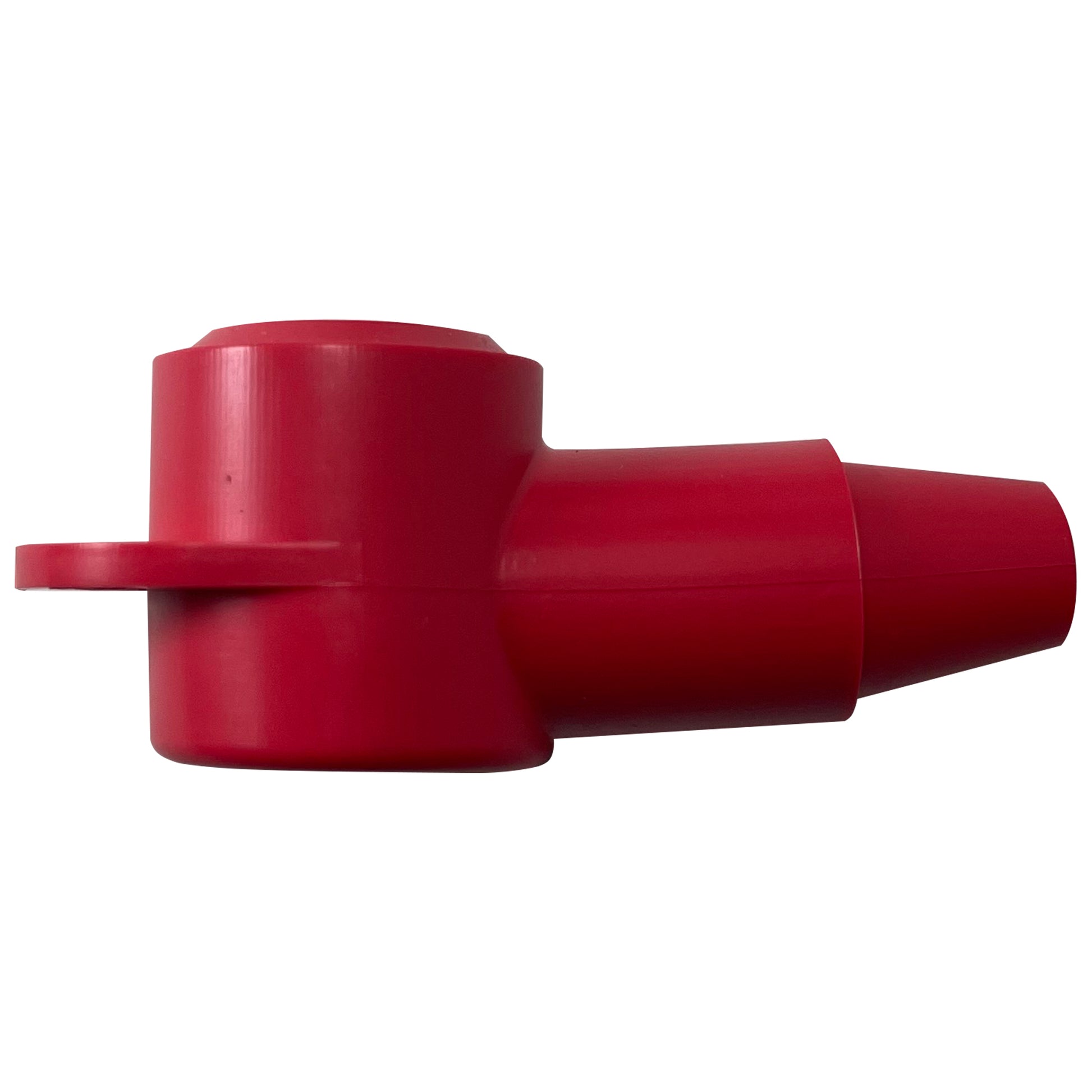

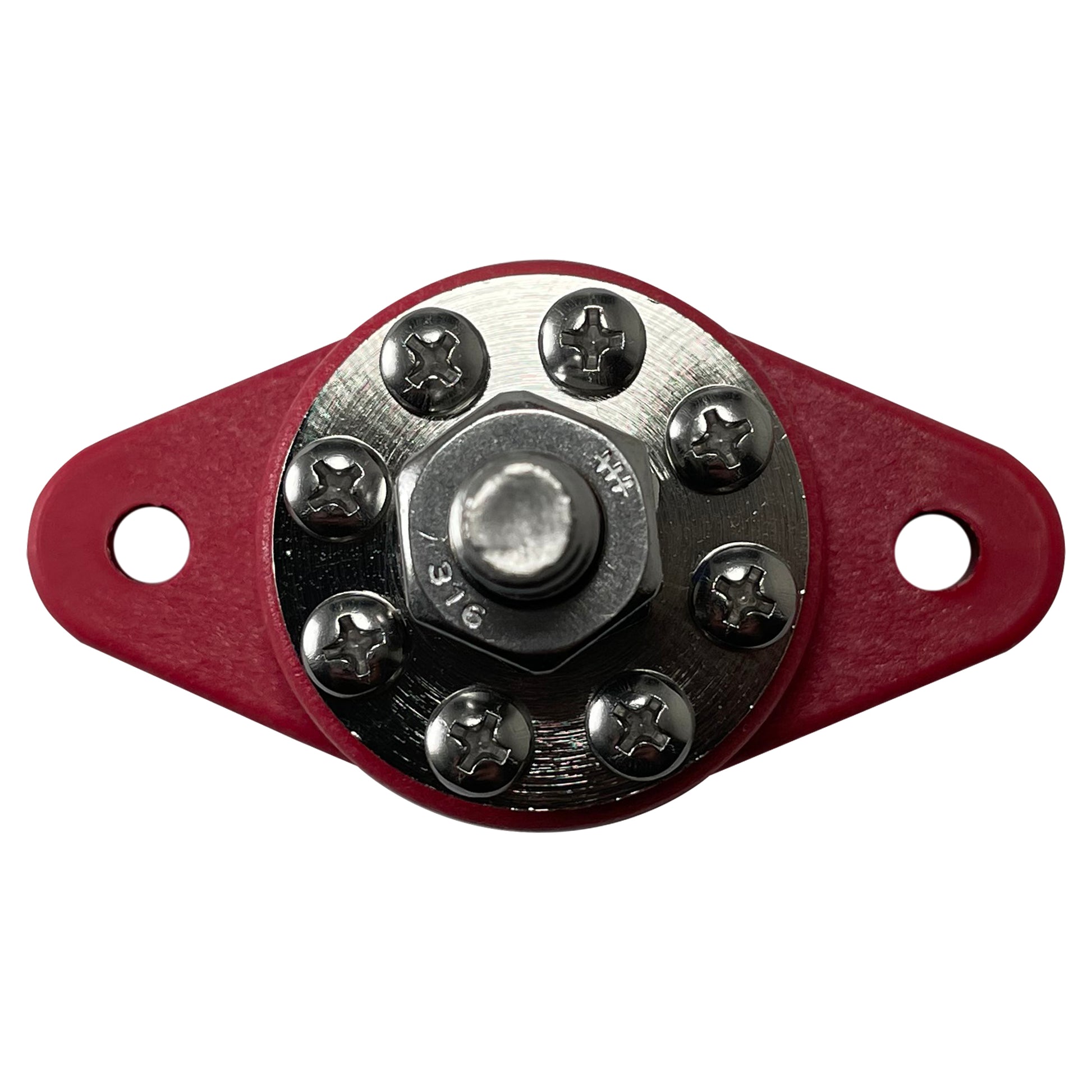

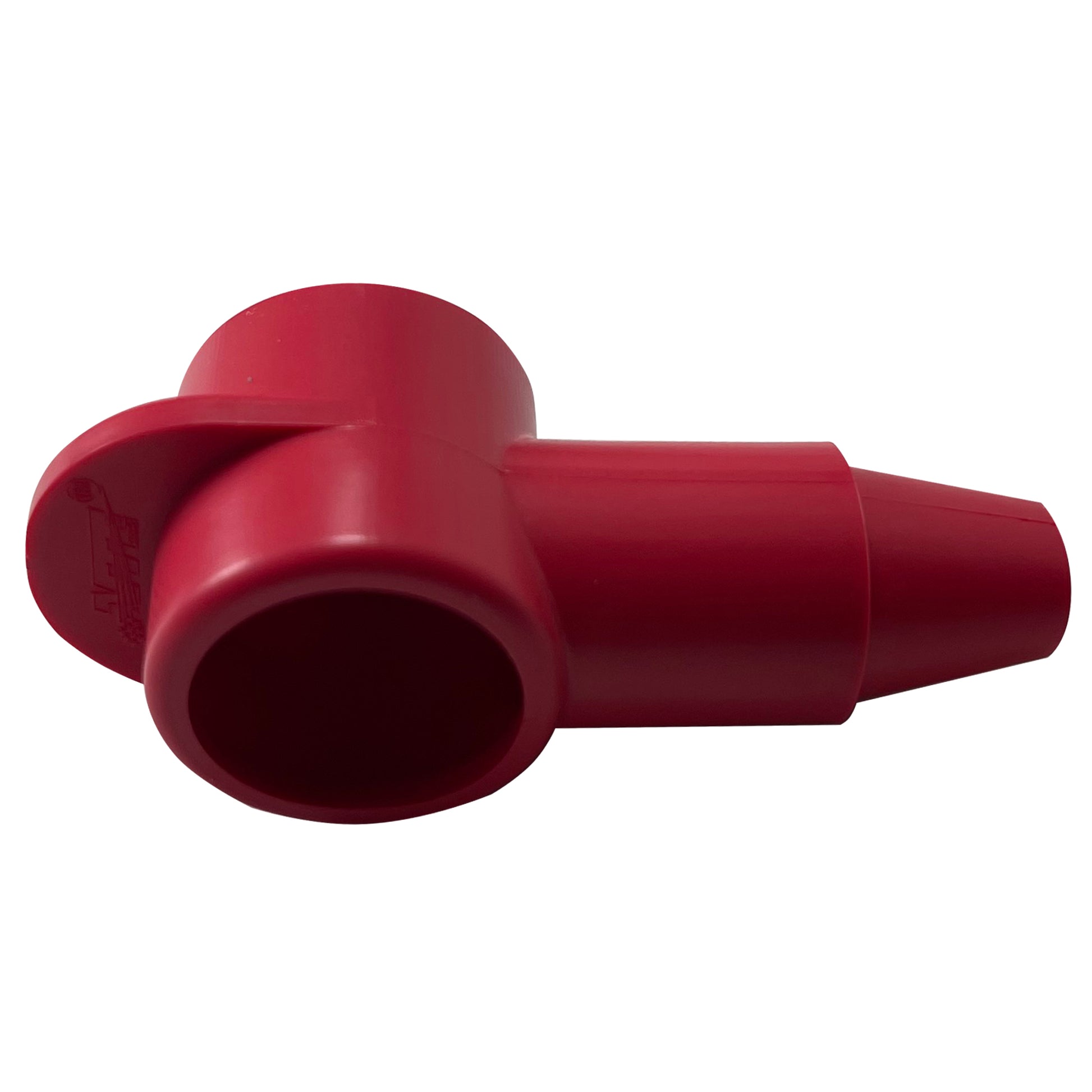

8 Point Power Distribution Post 3/8" Red With Red Insulating Boot & Clear Disc
Regular price
$17.28 USD
Sale price
$17.28 USD
Regular price
Unit price
/
per
Shipping calculated at checkout.
Your item is successfully added to the Cart!!
Couldn't load pickup availability
Product Description
8 Point Power Distribution
Our 8 Point Distribution Post is a very popular low-cost power post. With a center post of #10 up to 3/8", this power post can handle almost any size cable. (8) 20 amp connections provide connection points to various devices.
- Create reliable, trouble-free circuit paths to control systems
- Hook up negative return lines to single cable
- Connection plate made from nickel-plated copper which gives 40% better conductivity than tin-plating
- Max Amperage: 160 amps @ 12 vdc - 20 amps per connection
- Max Voltage: 48 vdc
- Available Post Sizes : 3/8" (0.38 in) (~10mm)
- Color: Red
- Available Base Material : Glass-Filled Nylon
- Connection post made from stainless steel
- Connection nuts made from zinc-plated copper
- Eight stainless steel #8-32 connection screws
- Mounting Center: 2.5 in
- Our Power Distribution Posts are Pre-Engineered to protect against accidental shorting.
- Use with terminal insulators to meet ABYC-E9, USCG 33 Subpart I, and ISO 10133.
