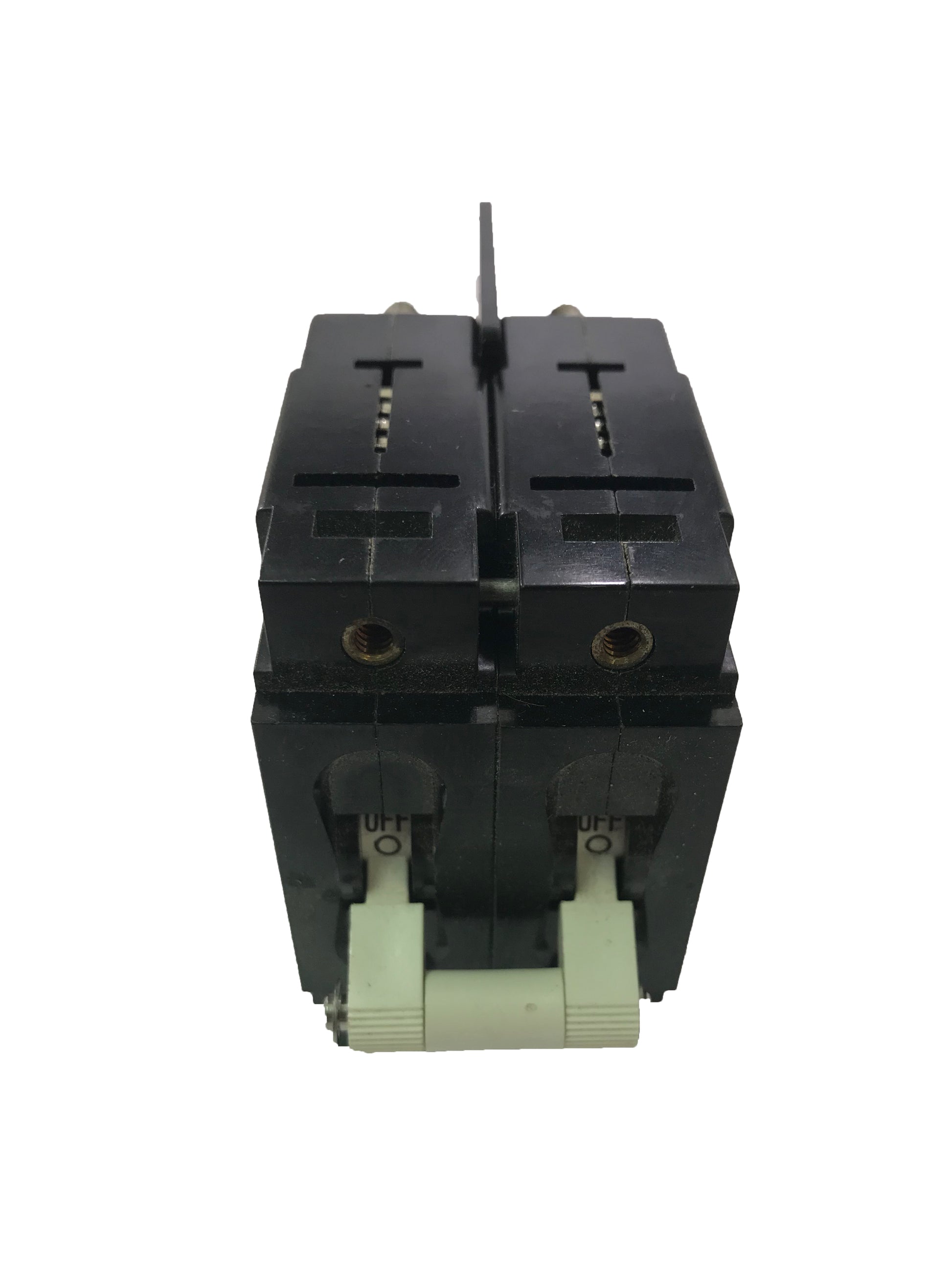

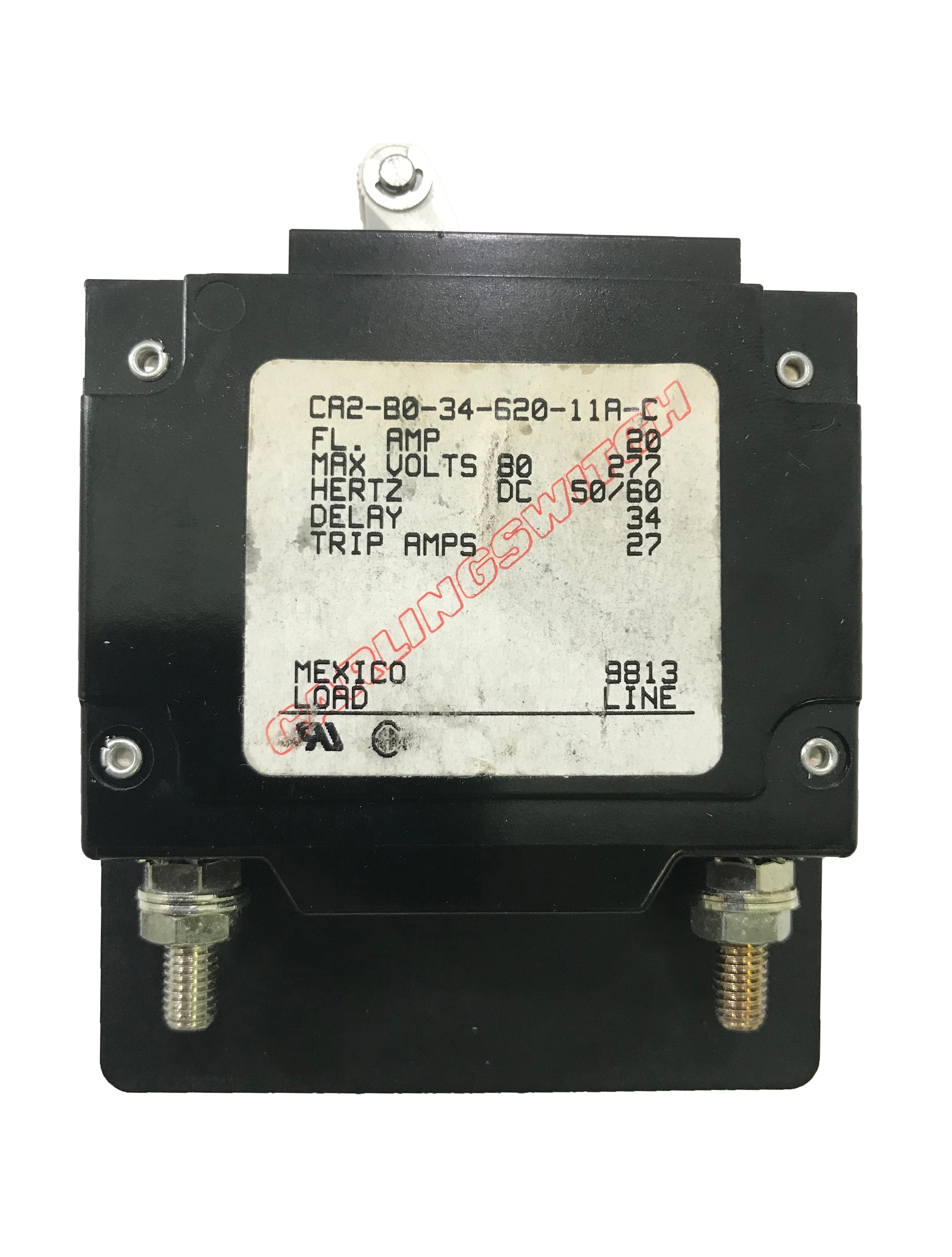

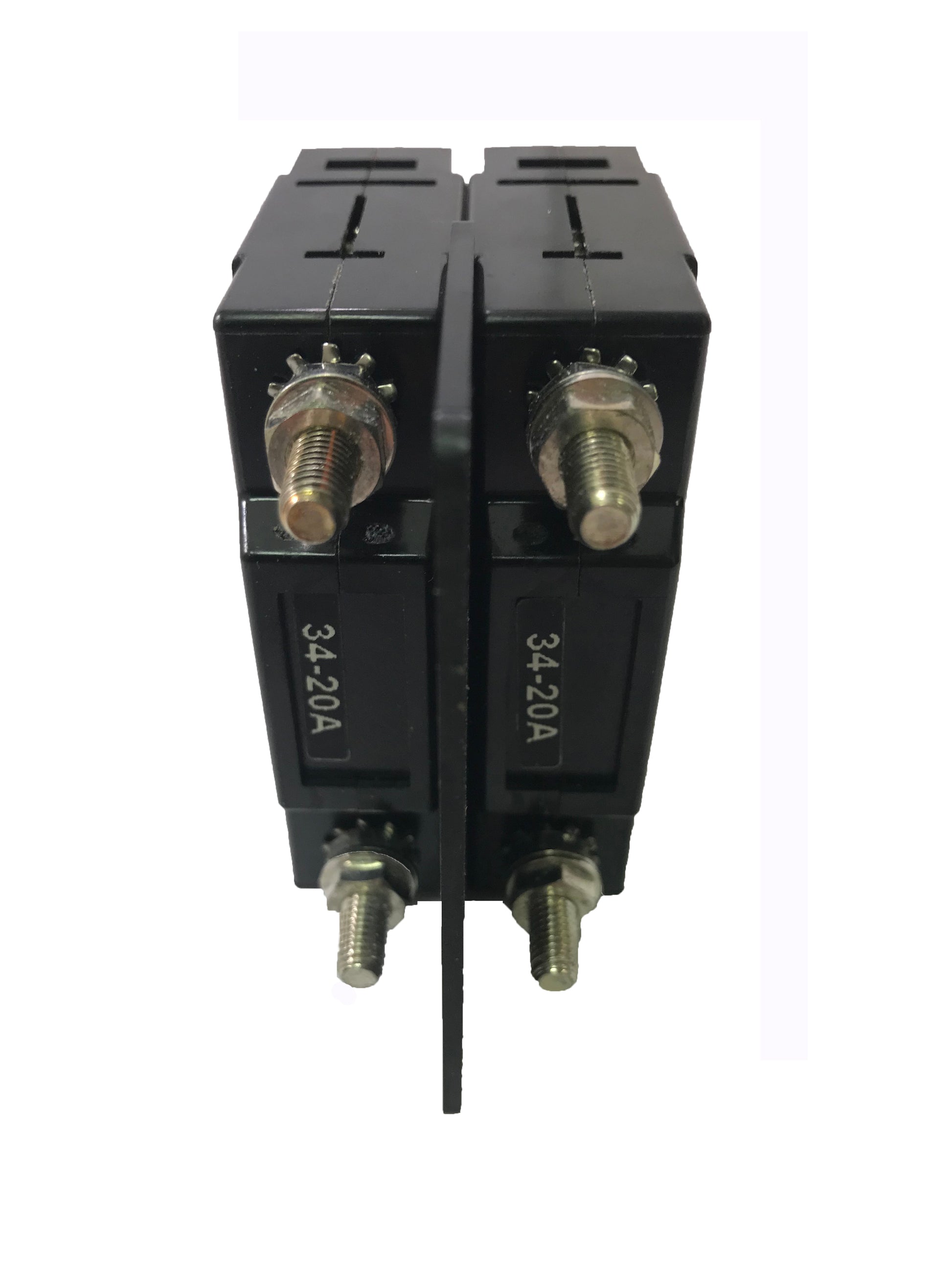

Carling Breaker "A" Frame Double Pole 20 Amp Black Double Throw

Product Description

Handle Color Black Interupt Capacity AC 7500A Interupt Capacity DC 5000A Max Voltage 80VDC or 277VAC Number of Handles 2 Number of Poles 2 Rated Amps 20 HYDRAULIC/MAGNETIC CIRCUIT BREAKERS “A” FRAME Hydraulic/Magnetic circuit breakers are a low cost answer to power switching and reliable circuit protection. Temperature will not effect the operation of magnetic circuit breakers, as is the case with thermal breakers or fuses. The opening of the circuit is accomplished by the amount of current passing through an electromagnetic coil. As the current exceeds the amount specified by the breaker the circuit will open. (See chart, “Percentage overload vs. trip time.”) “A” frame breakers are designed to have a medium trip delays to avoid nuisance tripping. All breakers are rated for DC and AC 50/60Hz. FEATURES • Series Trip • “Trip Free” • Hydraulic/Magnetic Operation operates as a function of current only not temperature. • Panel mounted using 6-32 Screws • Power Switching • Two Round Cutout 5/8” diameter
