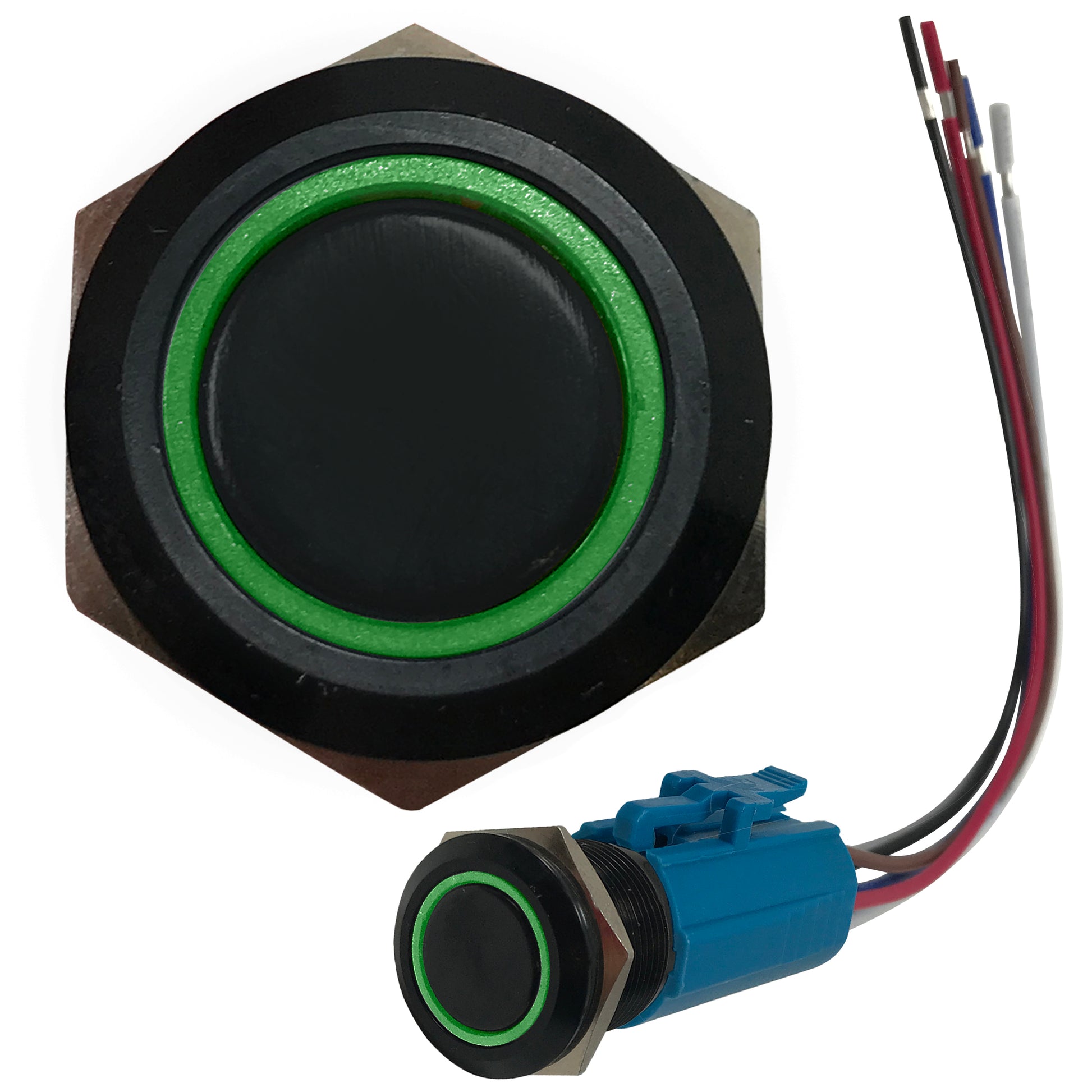

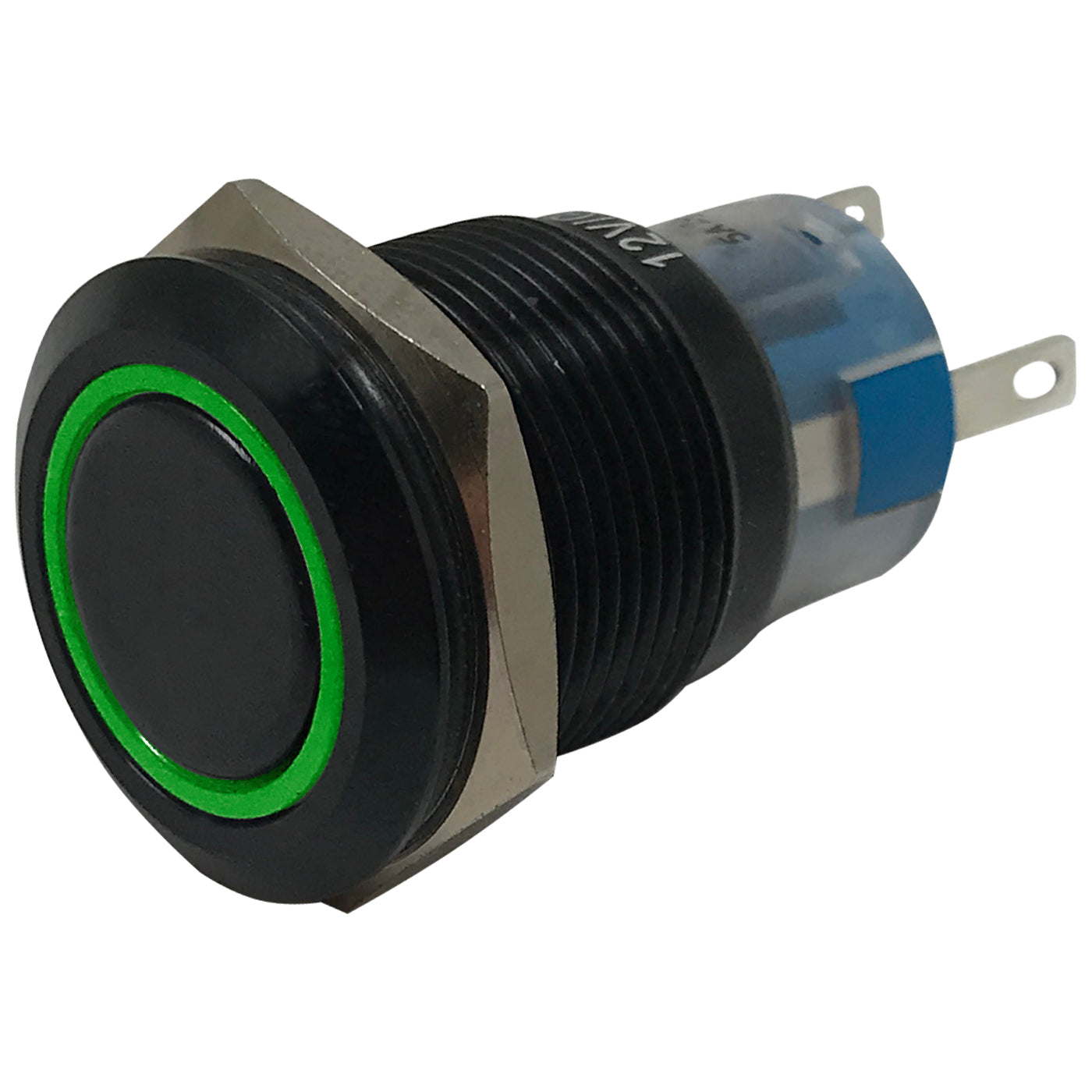

Green LED Black Metal Latching Push Button Switch On Off 12V - 19mm Mounting
Regular price
$15.49 USD
Sale price
$15.49 USD
Regular price
Unit price
per
Couldn't load pickup availability
Product Description

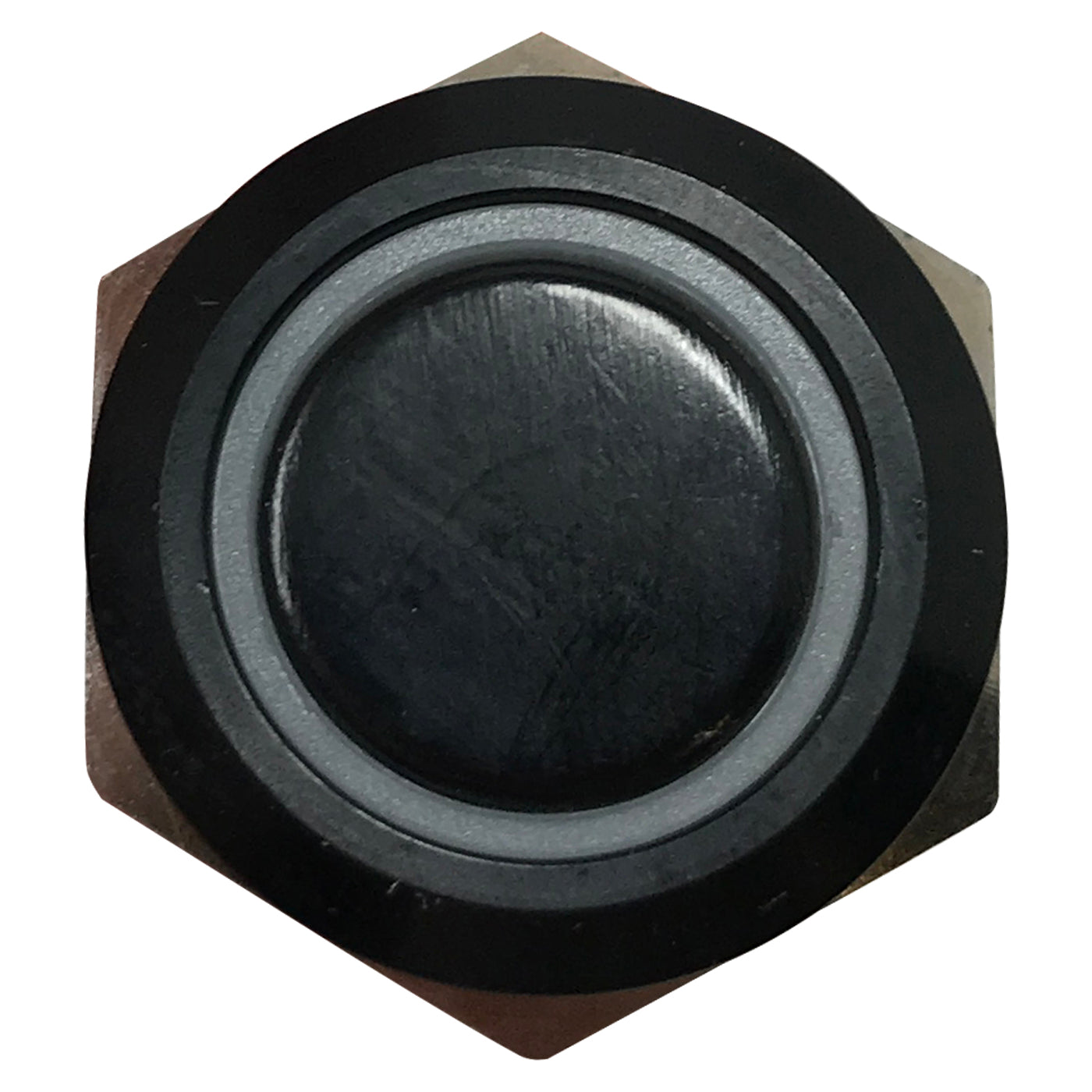

Black Round Switch
Latching Switch - On - Off

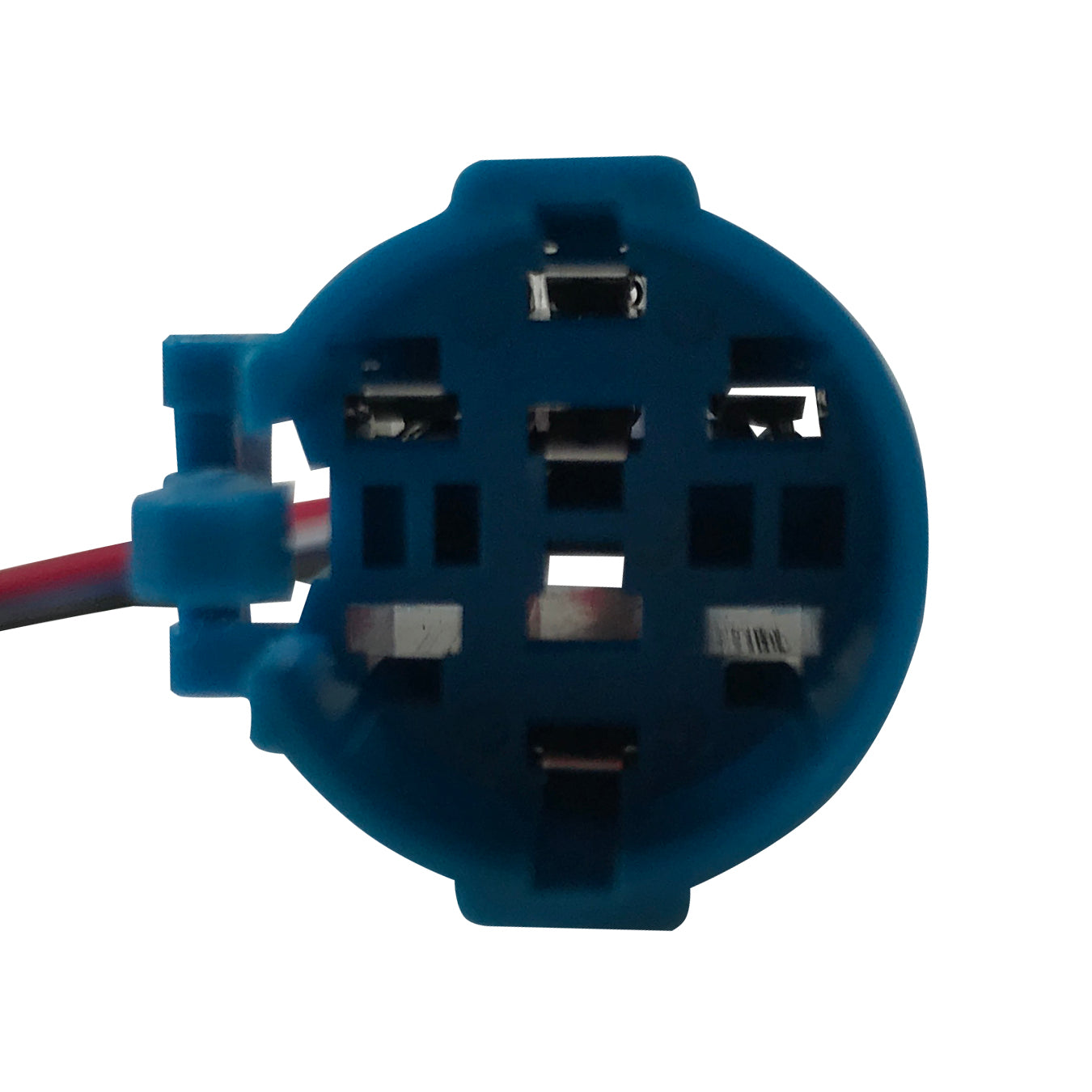

Includes harness
5A
IP67
12V

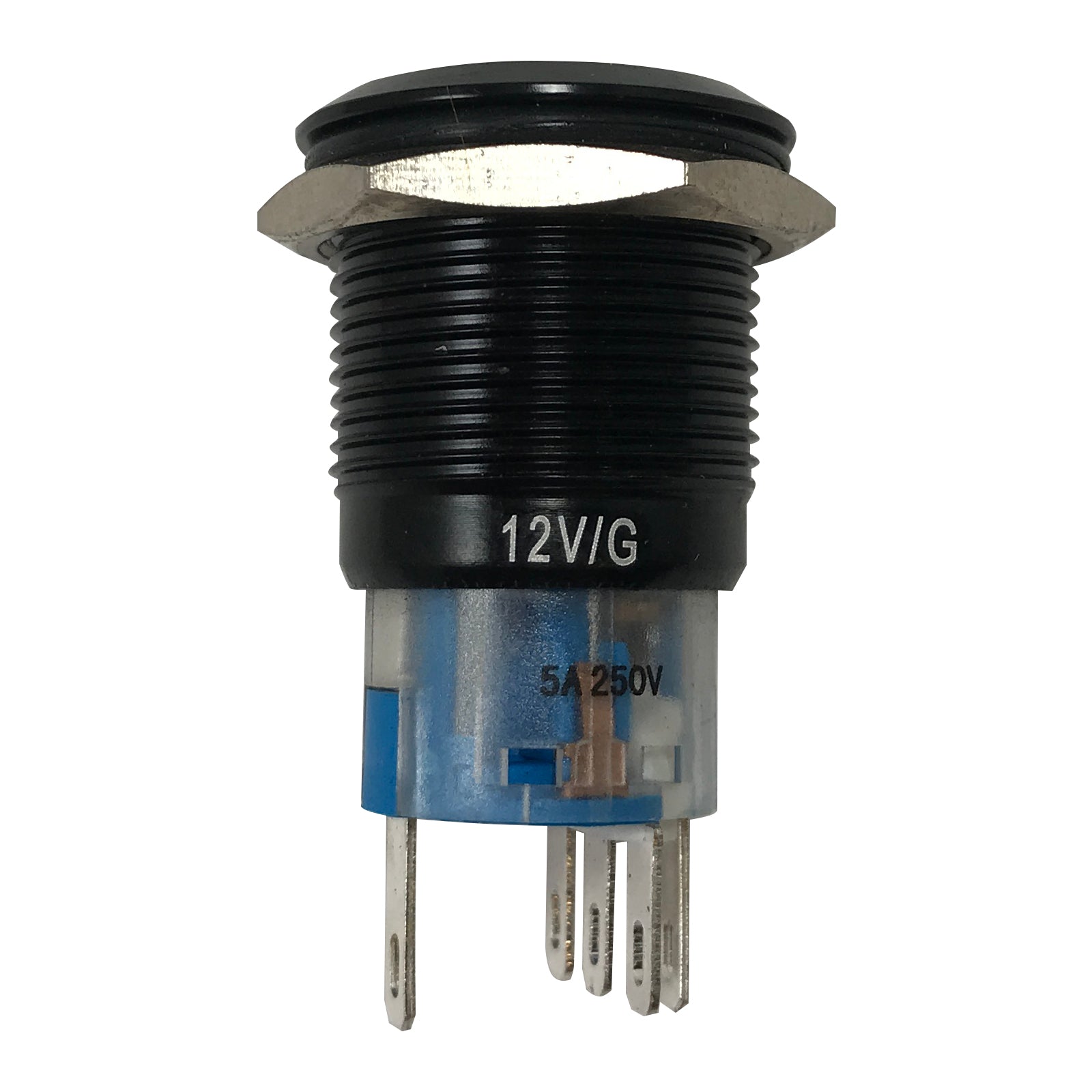

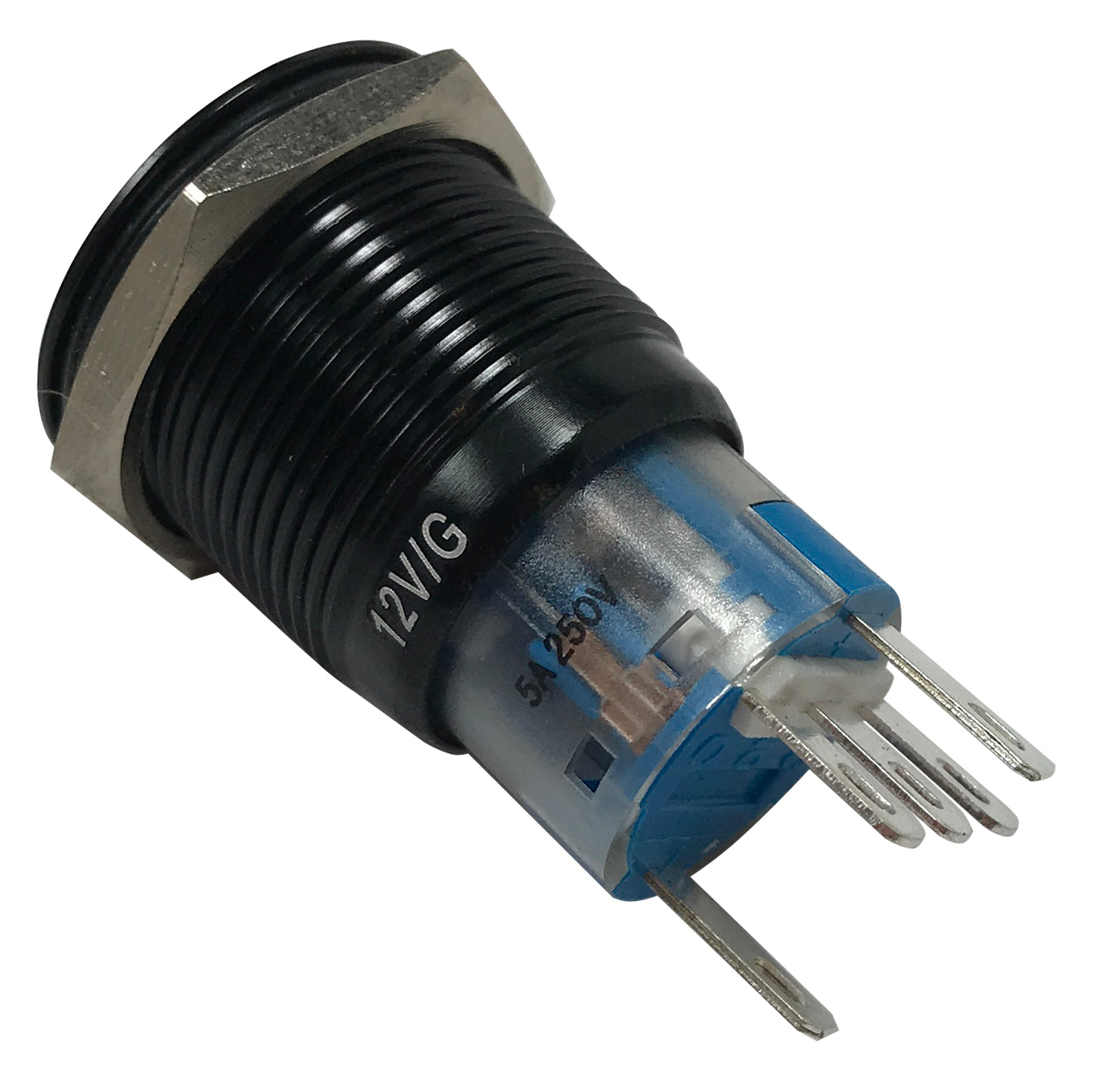

Switch rating - 5A/250VAC, 5A/30VDC

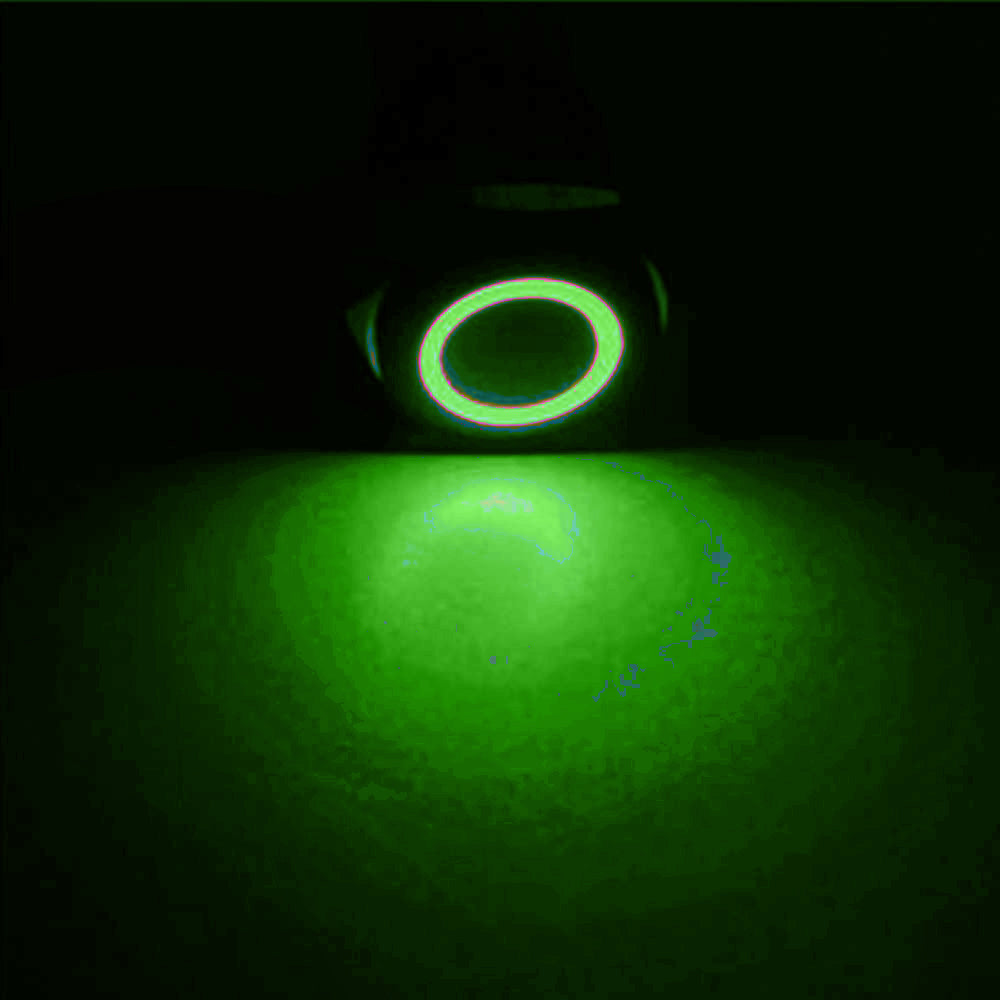

LED rating - 15mA, AC/DC 12V
Mounting Hole Size - 3/4" (19mm)

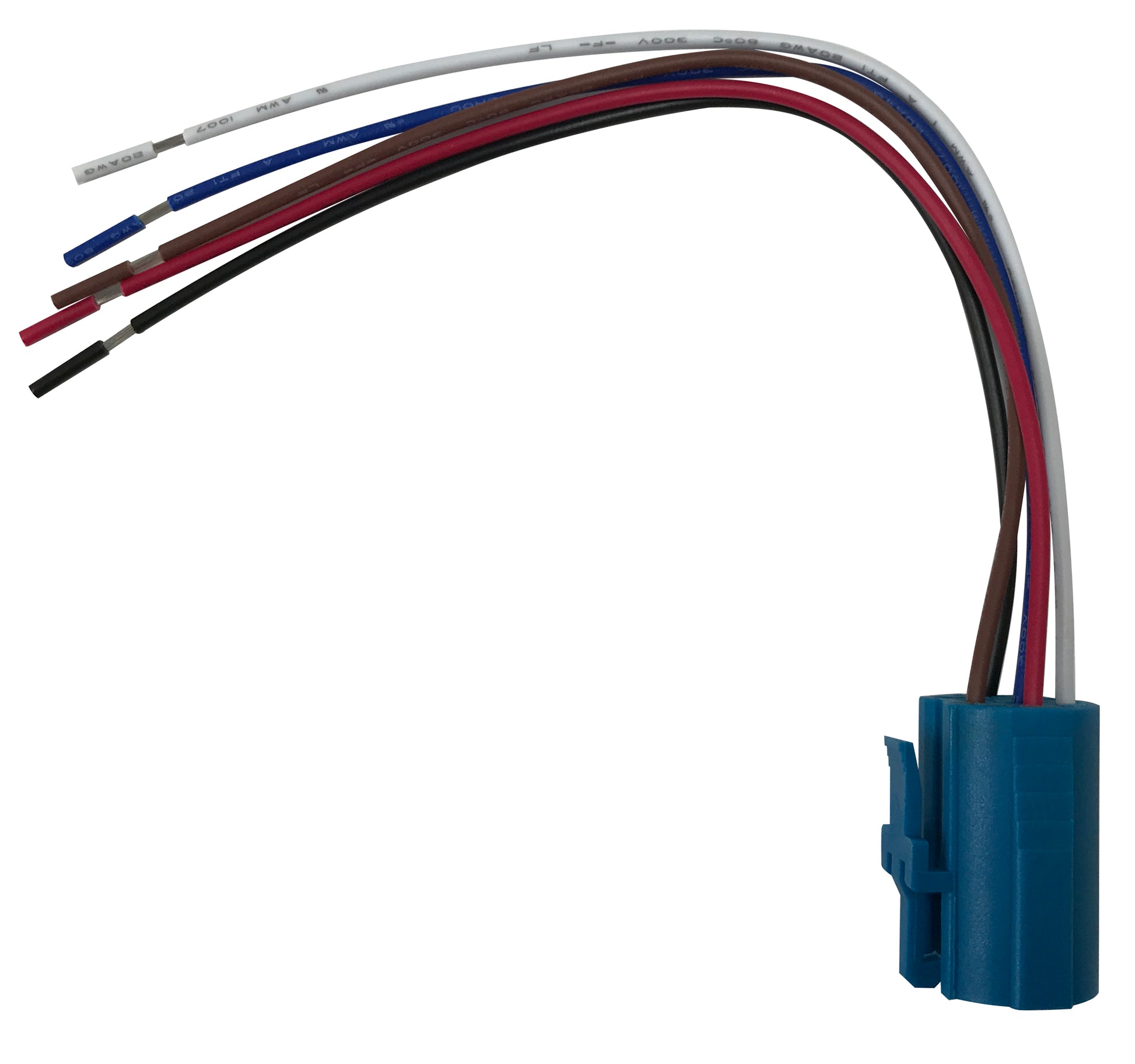

Wiring color codes for the round metal LED latching switches
Red – Connect to a 12 volt (+) switched wire. This is the (+) wire of the led ring
Black – Connect to( -)ground. This is the (-) ground wire of the led ring
White – Common input wire
Brown – Normally closed (N.C.) output. The Brown wire and the White wire are connected internally when the button is not pushed in.
Blue – Normally open (N.O.) output. The Blue wire and the White wire are connected internally when the button is pushed in.
