SKU: SBA-MRBF
Sale
Sold out
Amperages Included:
30, 40, 50, 60, 75, 80, 90, 100, 125, 150, 175, 200, 250 & 300 Amps.
Maximum Voltage - 58V DC

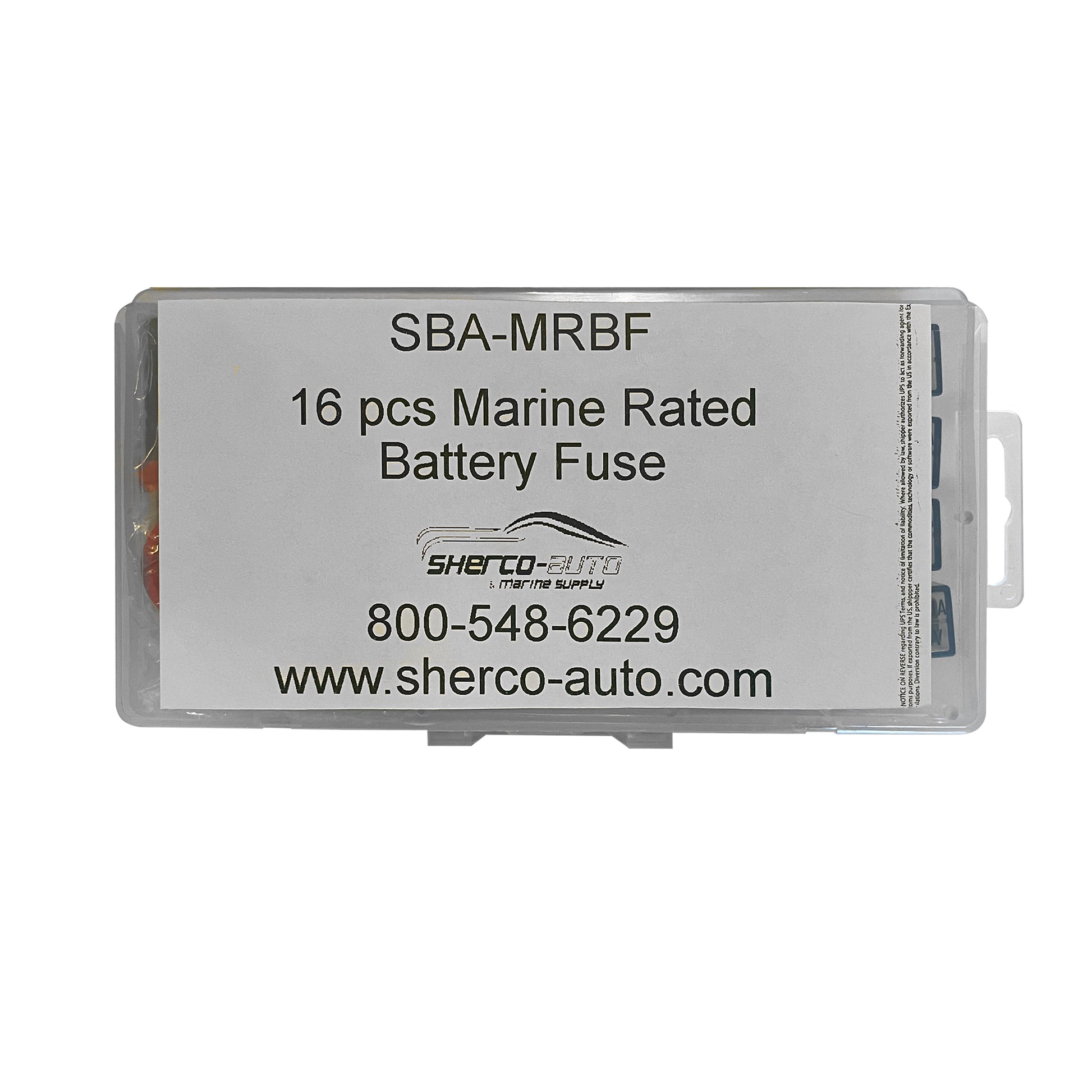

MRBF Marine Rated Battery Fuse & Block 30 to 300 Amp Kit - 16 Pieces
Regular price
$139.95 USD
Sale price
$139.95 USD
Regular price
Unit price
per
Couldn't load pickup availability
Product Description

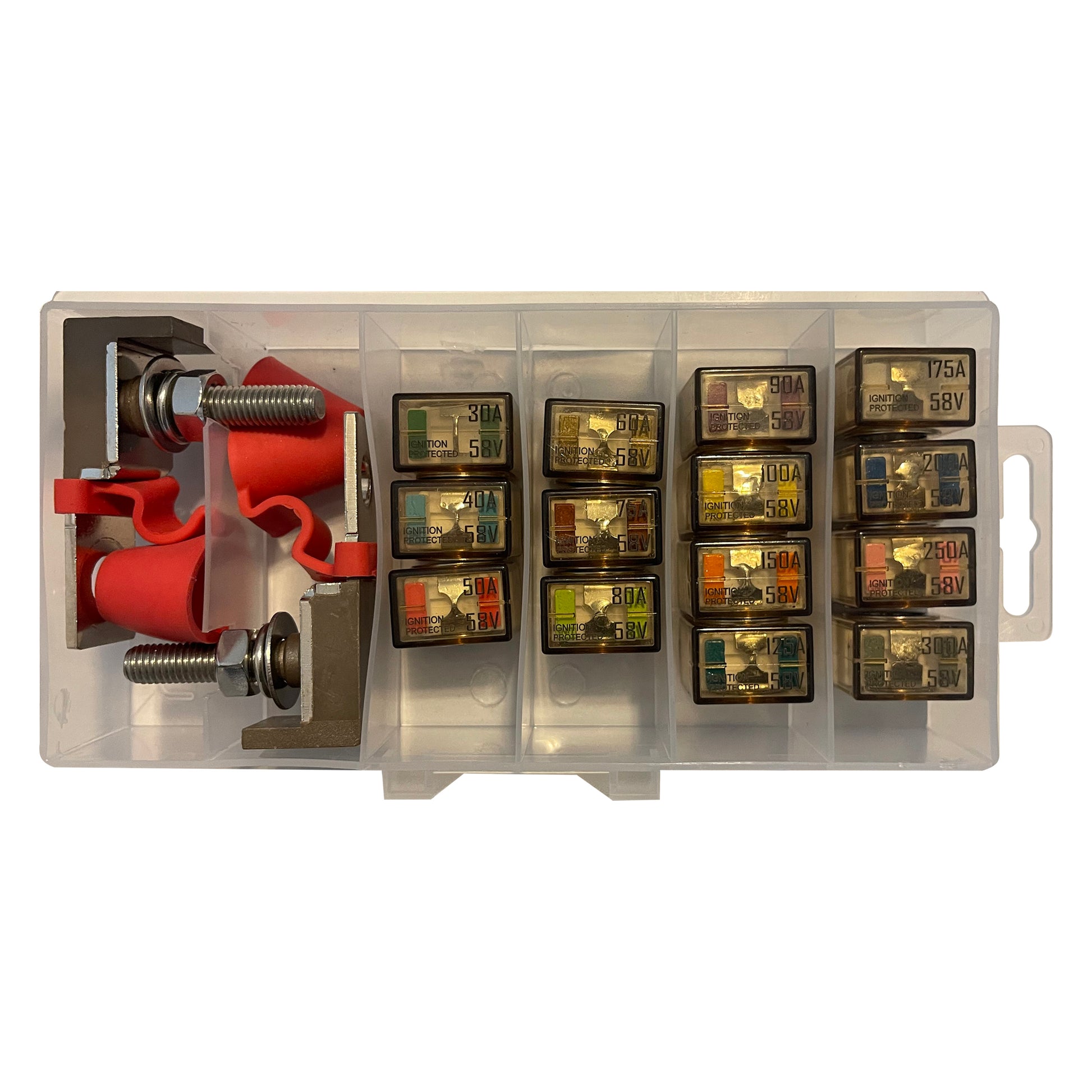

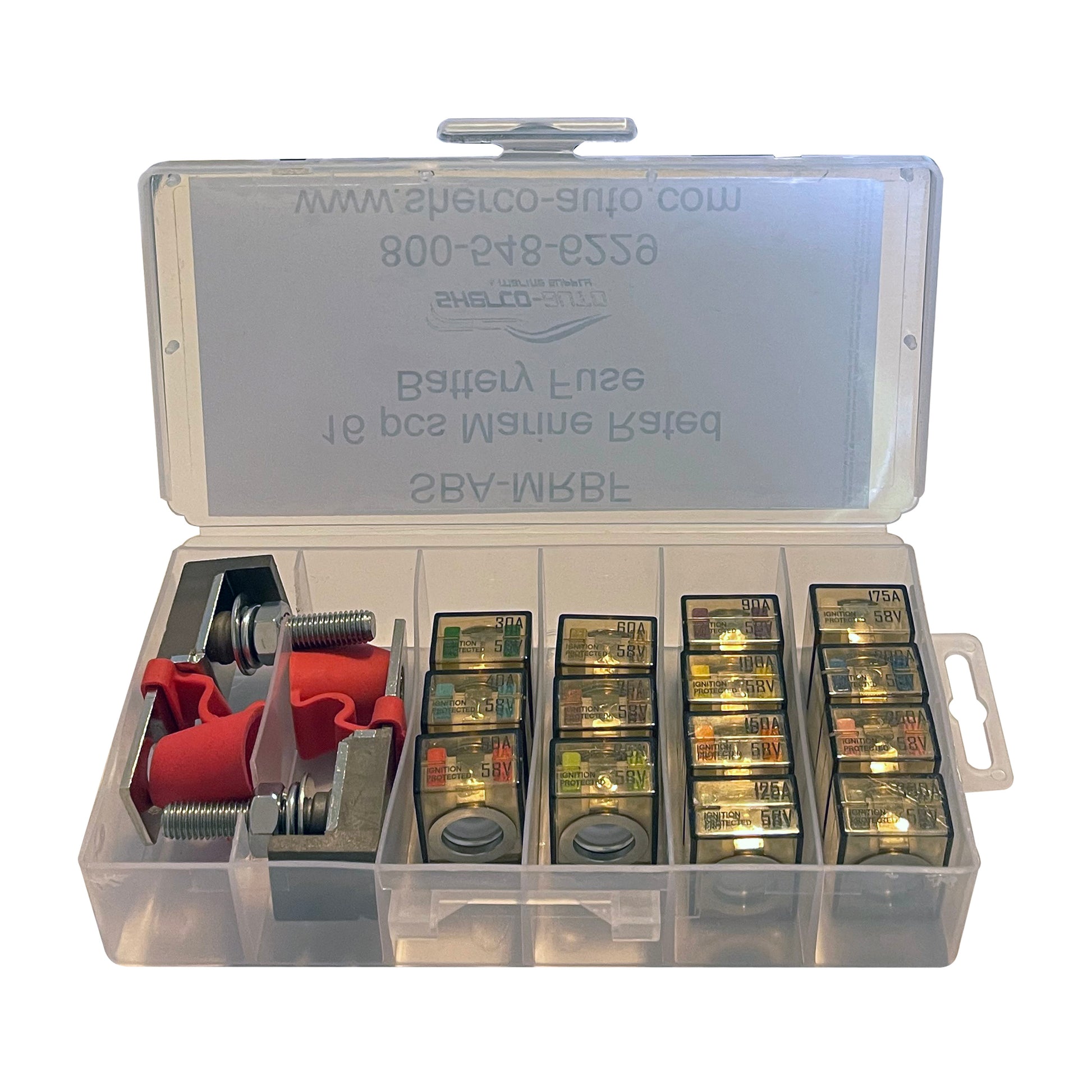

Kit Includes:
Kit Includes 1 Each of our 14 Different CBBF / MRBF Amperage Fuses (1 of each Amp) & 2 EFB-MRBF1 Fuse Blocks. 16 Pieces Total.
Kit Includes 1 Each of our 14 Different CBBF / MRBF Amperage Fuses (1 of each Amp) & 2 EFB-MRBF1 Fuse Blocks. 16 Pieces Total.
Amperages Included:
30, 40, 50, 60, 75, 80, 90, 100, 125, 150, 175, 200, 250 & 300 Amps.

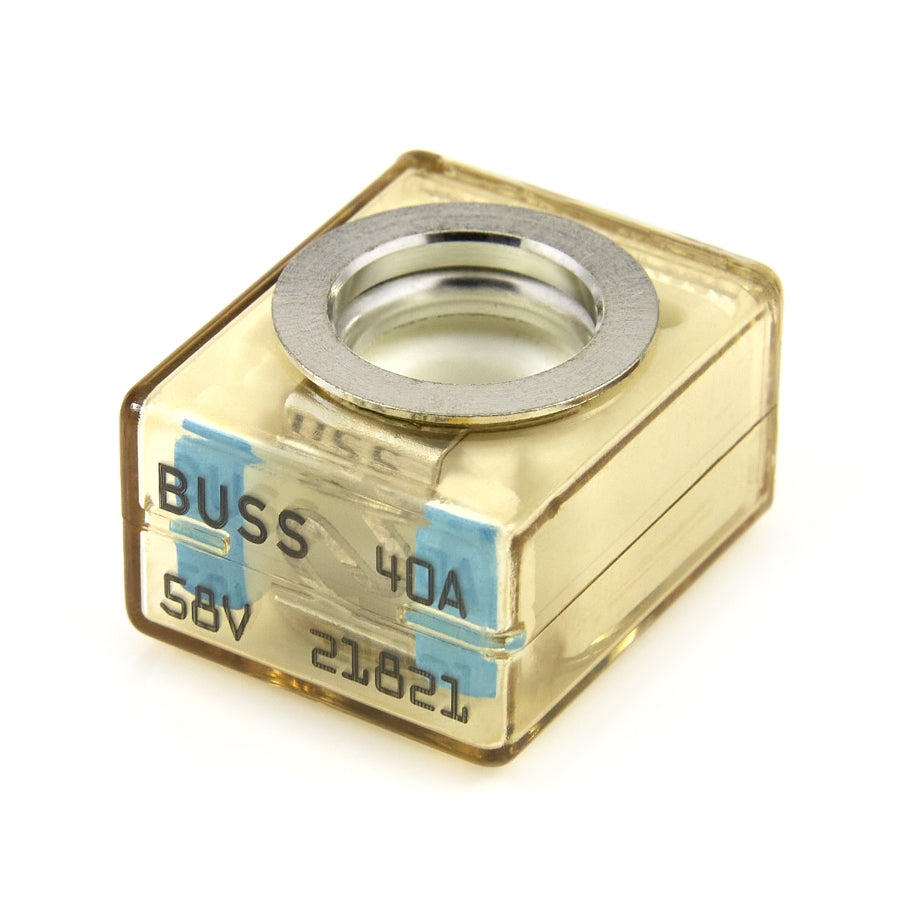

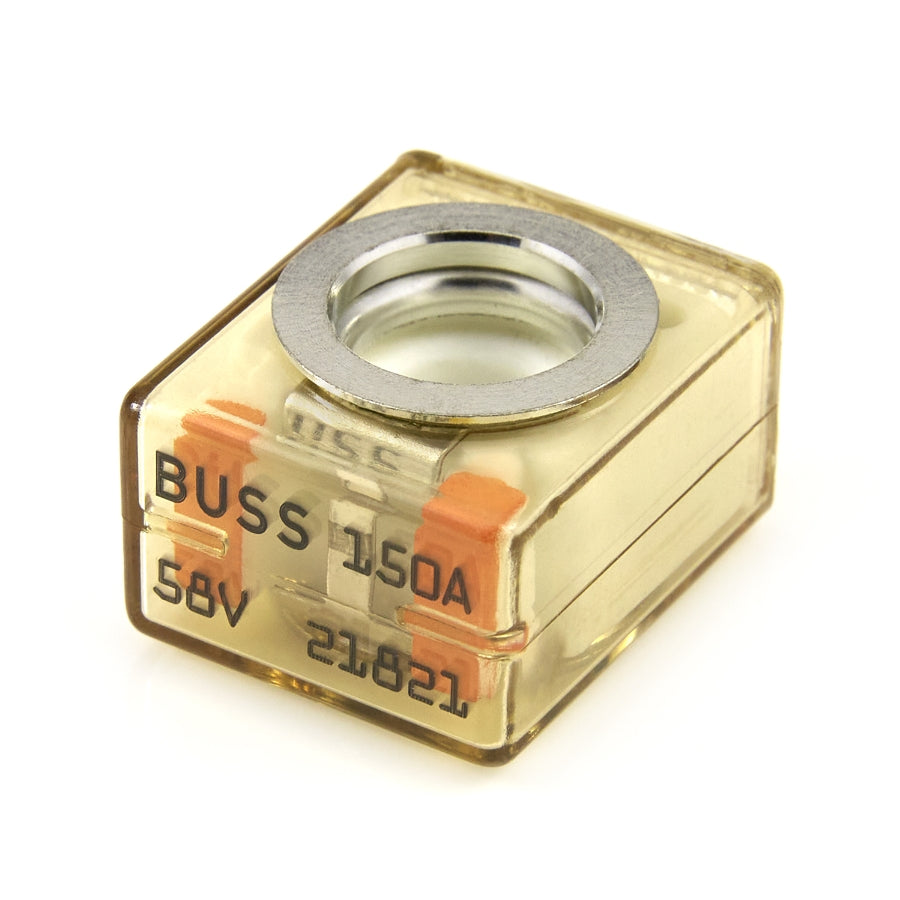

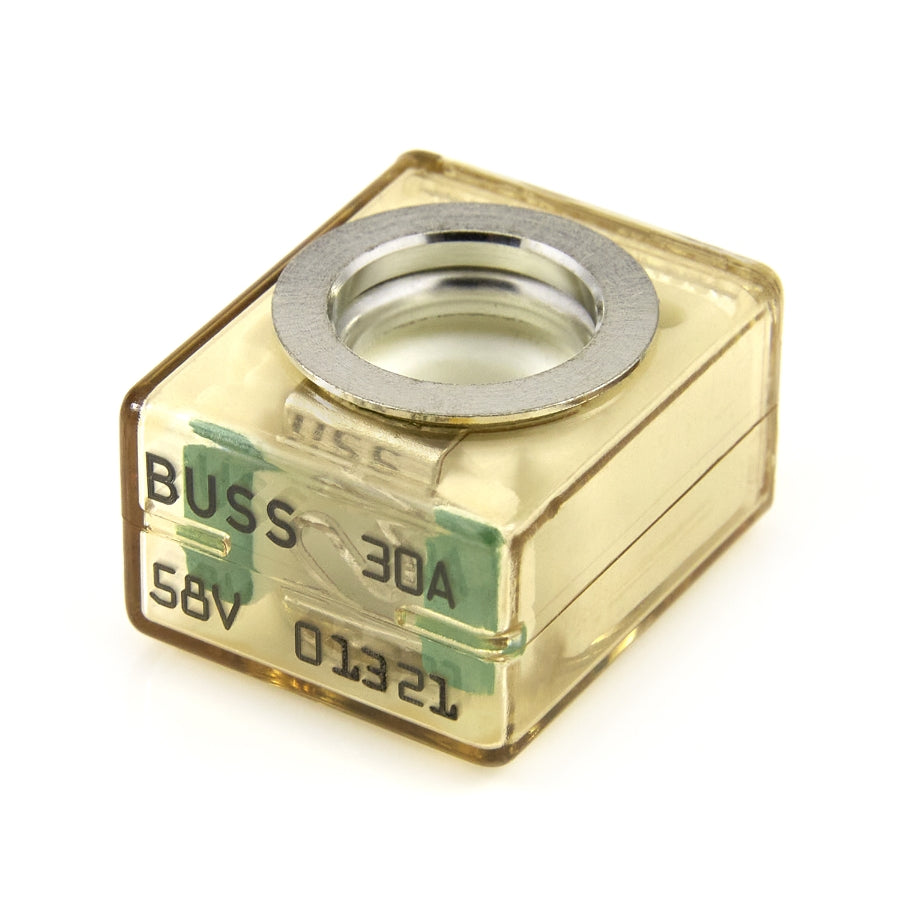

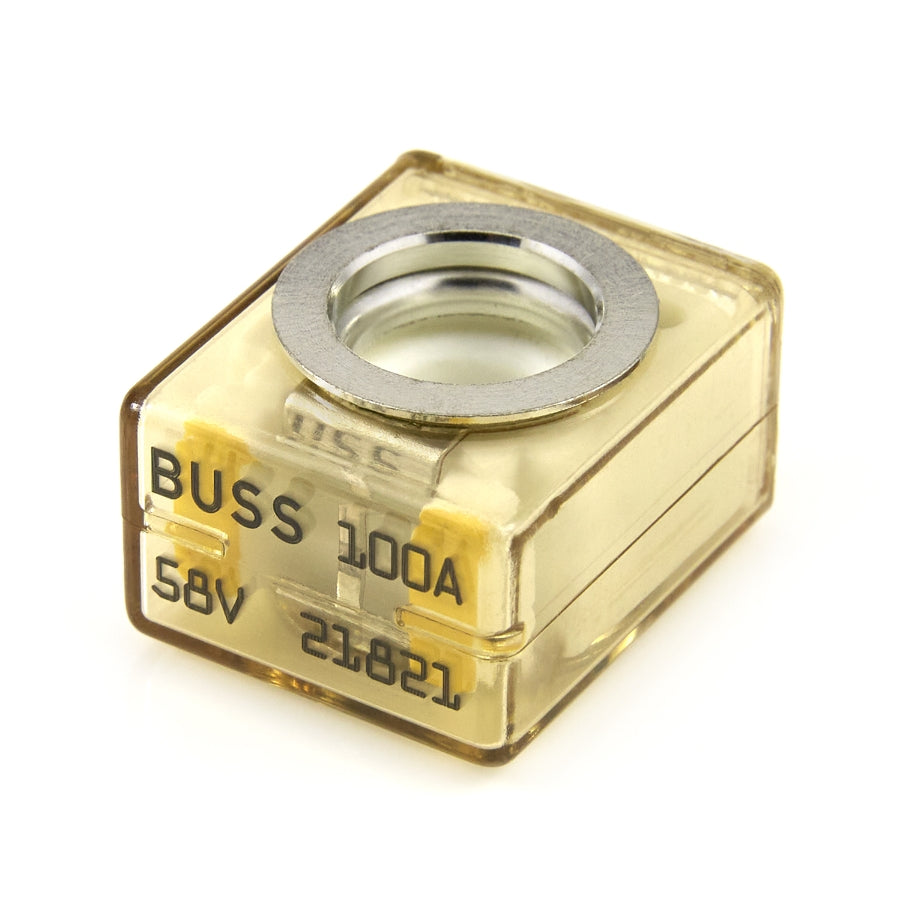

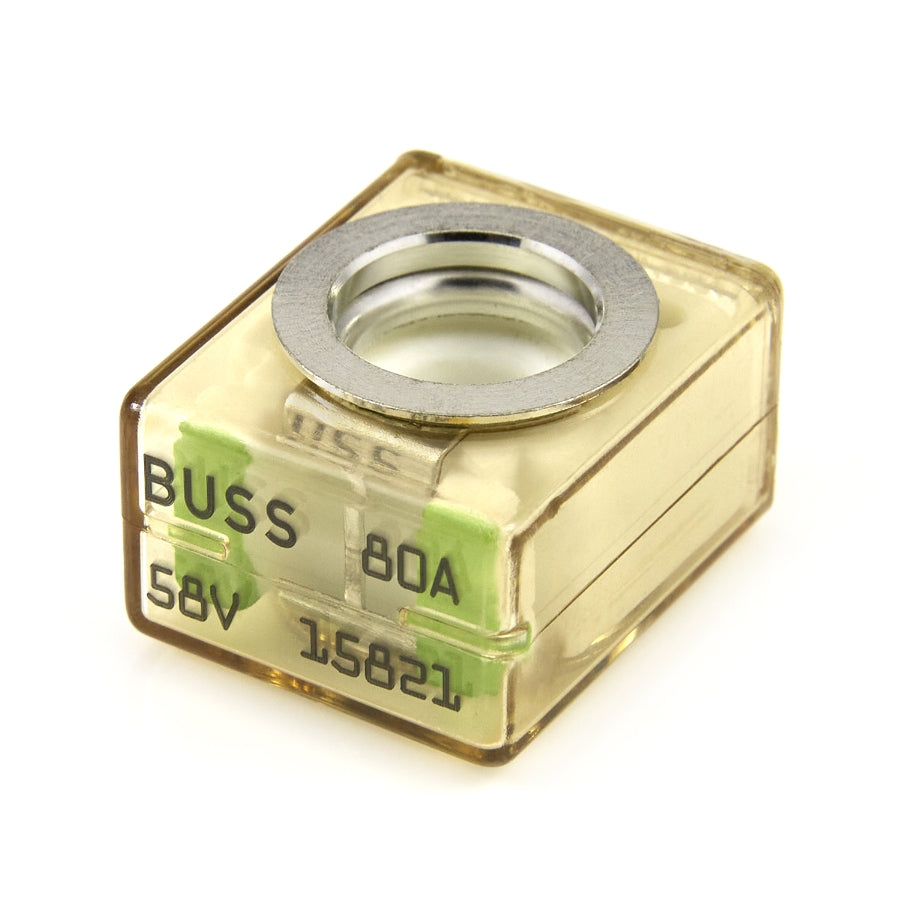

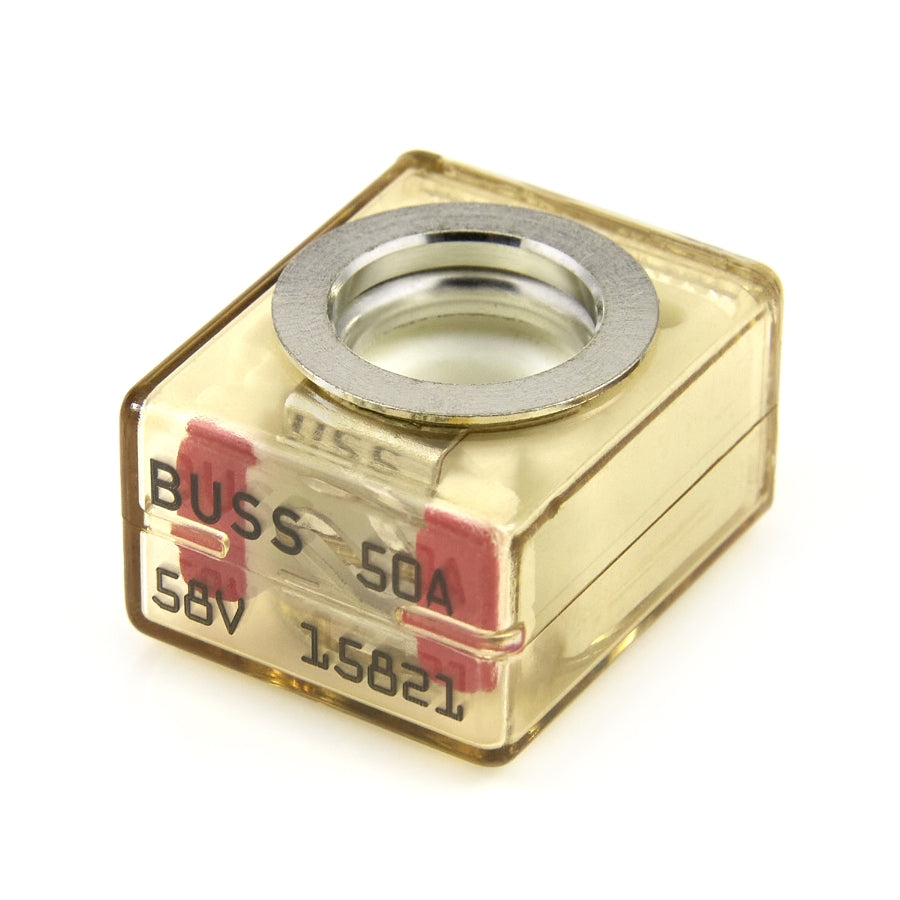

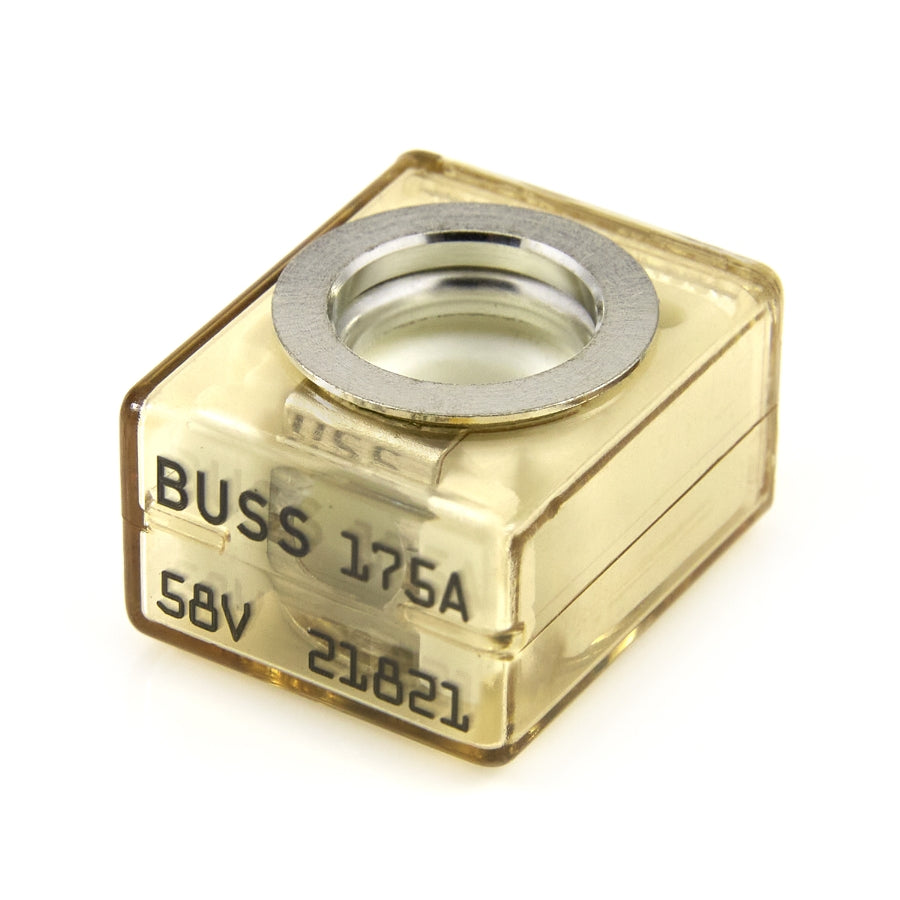

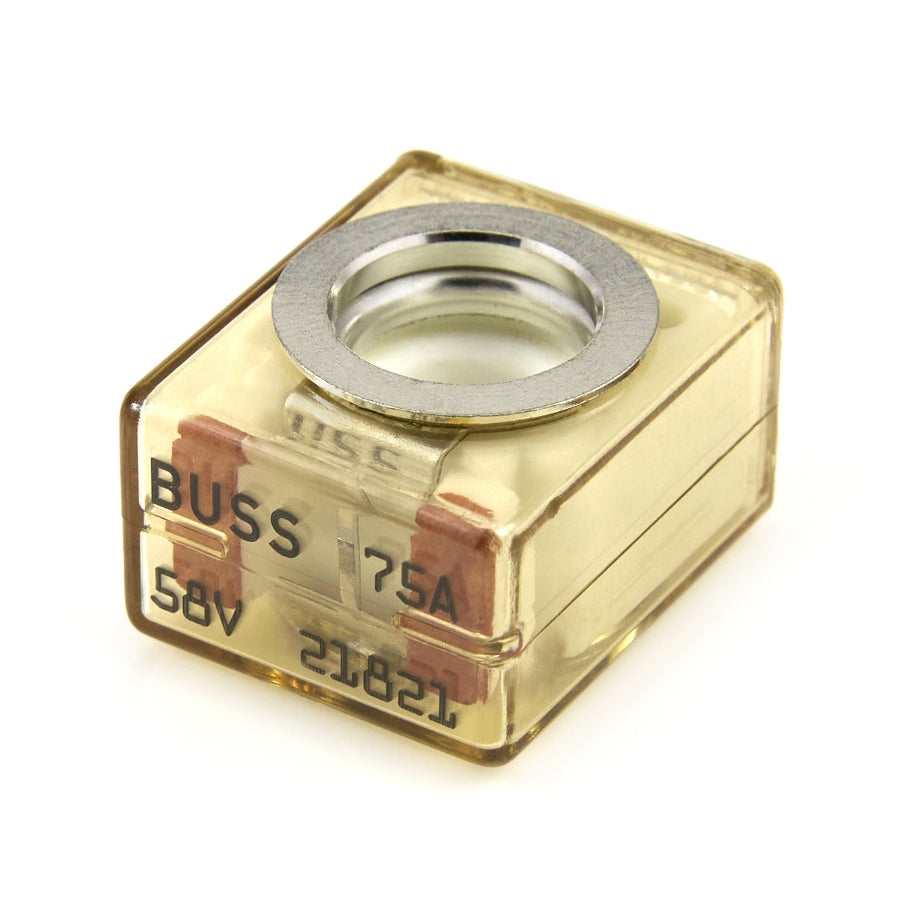

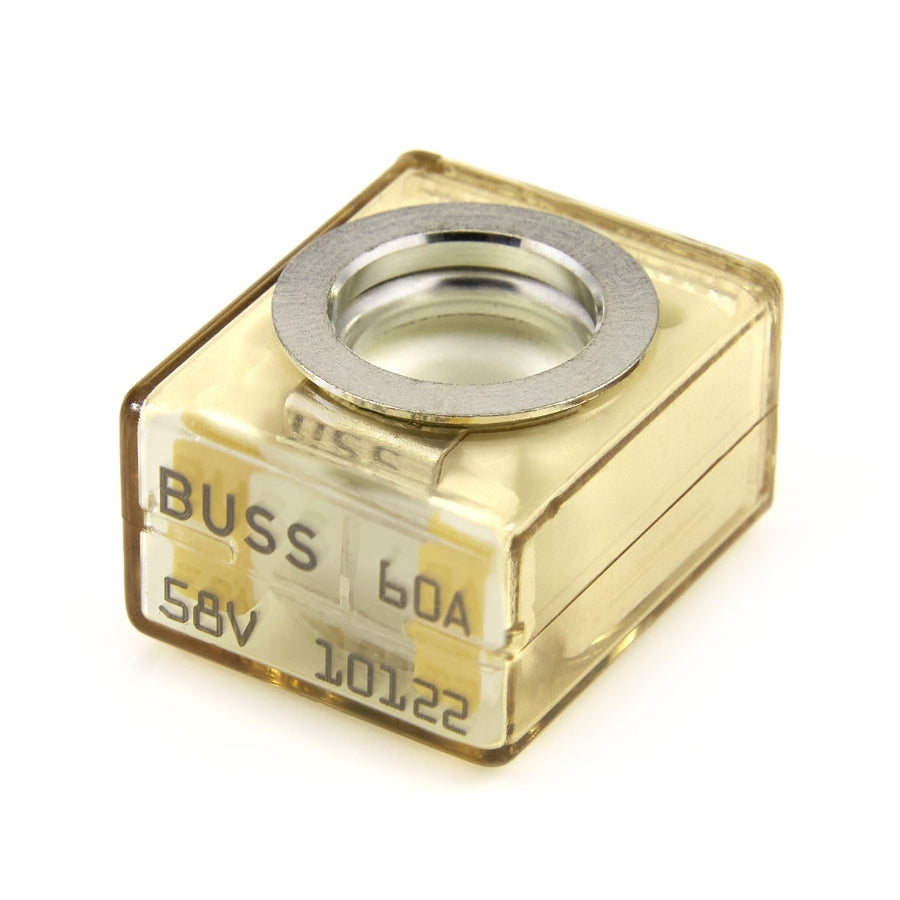

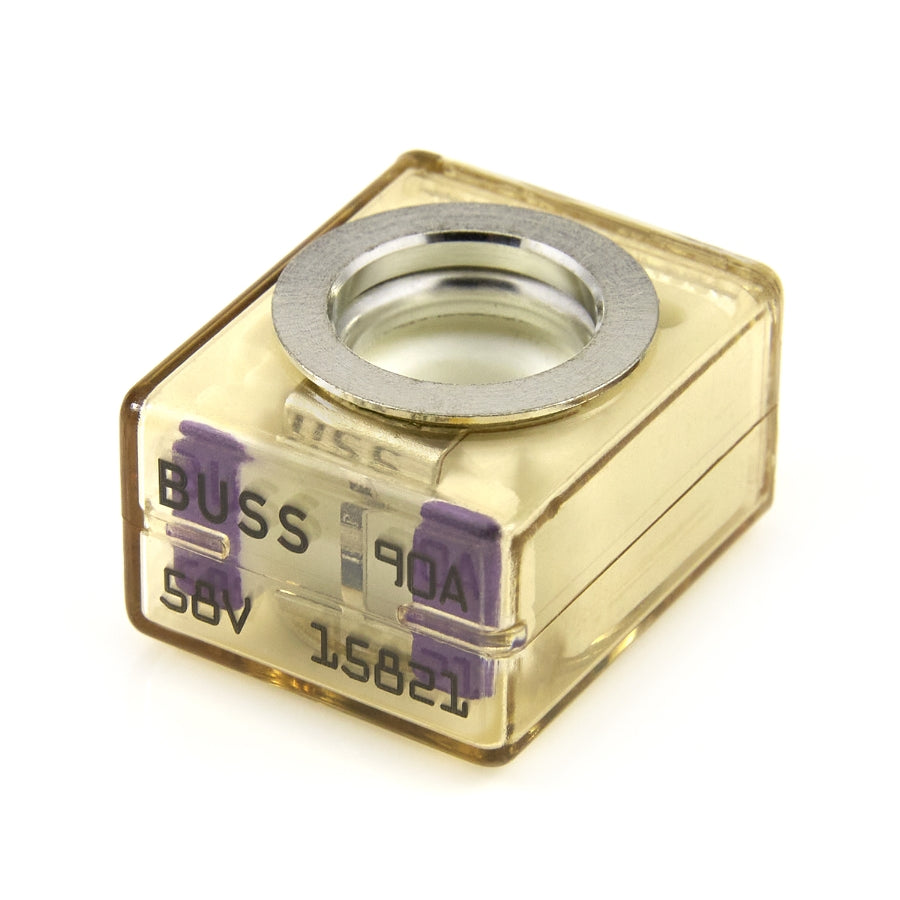

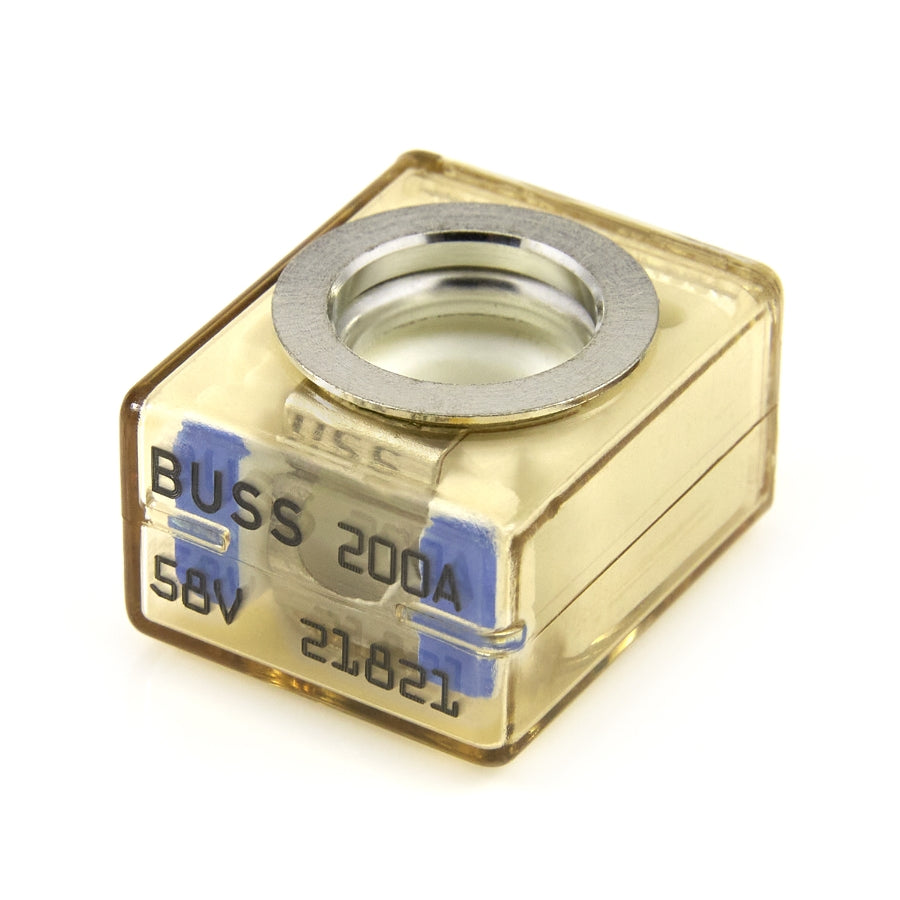

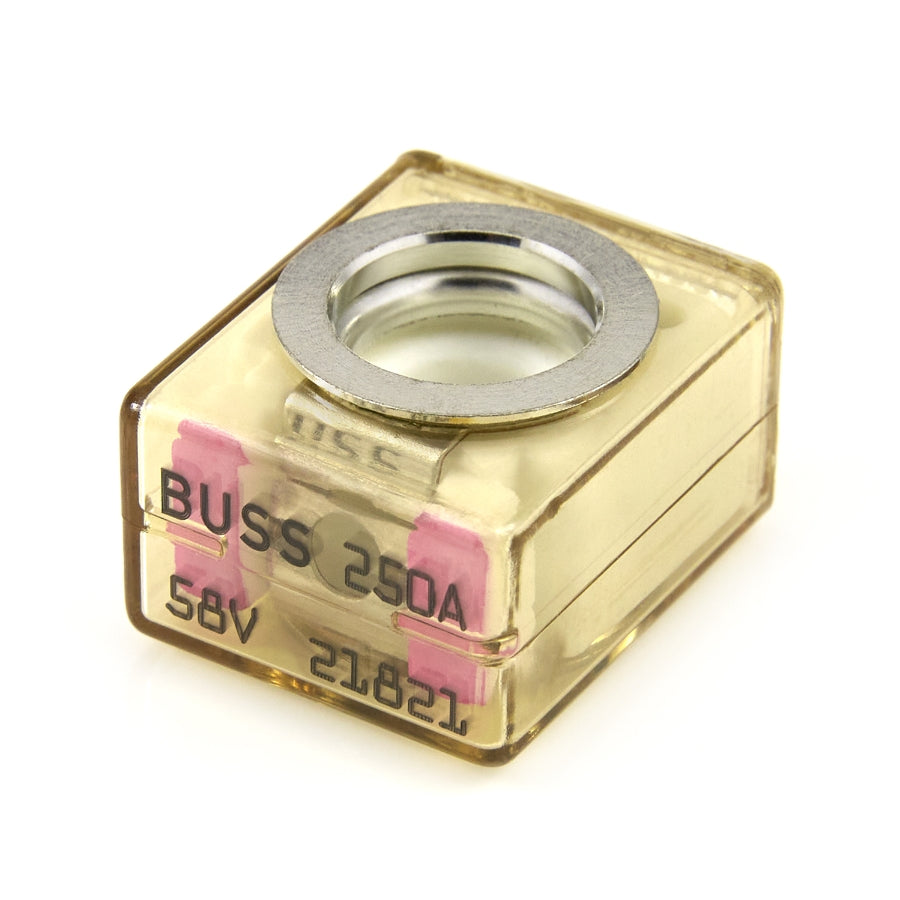

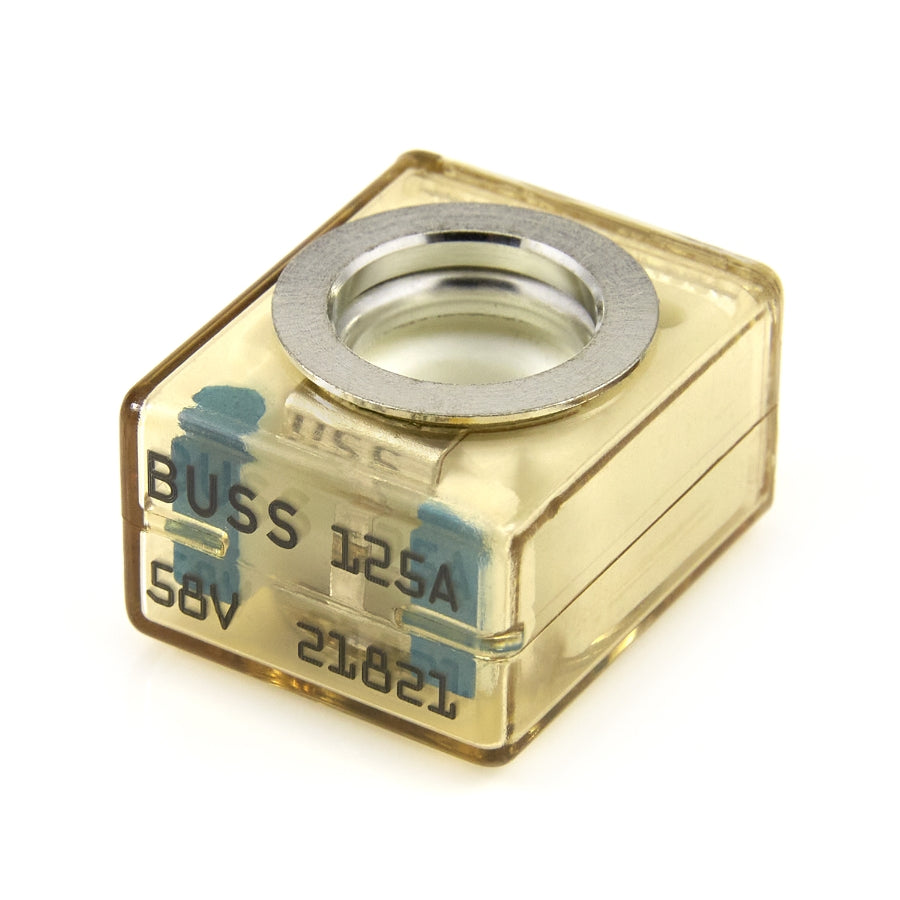

CBBF/MRBF Fuse information:
Amperage - 30-300Maximum Voltage - 58V DC
Type - CBBF/MRBF
Recommended Torque - 75 in-lb (8.47 Nm)
Terminal Stud - M8 (5/16")
Weight - 0.16 lb (0.07 kg)
Marine rated battery fuses are designed to protect the main circuit on large battery banks. They are easy to install and have been built with longevity in mind. Each fuse slides onto the post of a marine rated battery fuse block. They are available in fuses amperages ranging from 30 amp all the way to 300 amp. Choosing the right marine rated battery fuse is not an easy task. Contact a Pacer expert today with any questions that you may have.
COMPLIANCES:
Meets IP66, SAE J1711

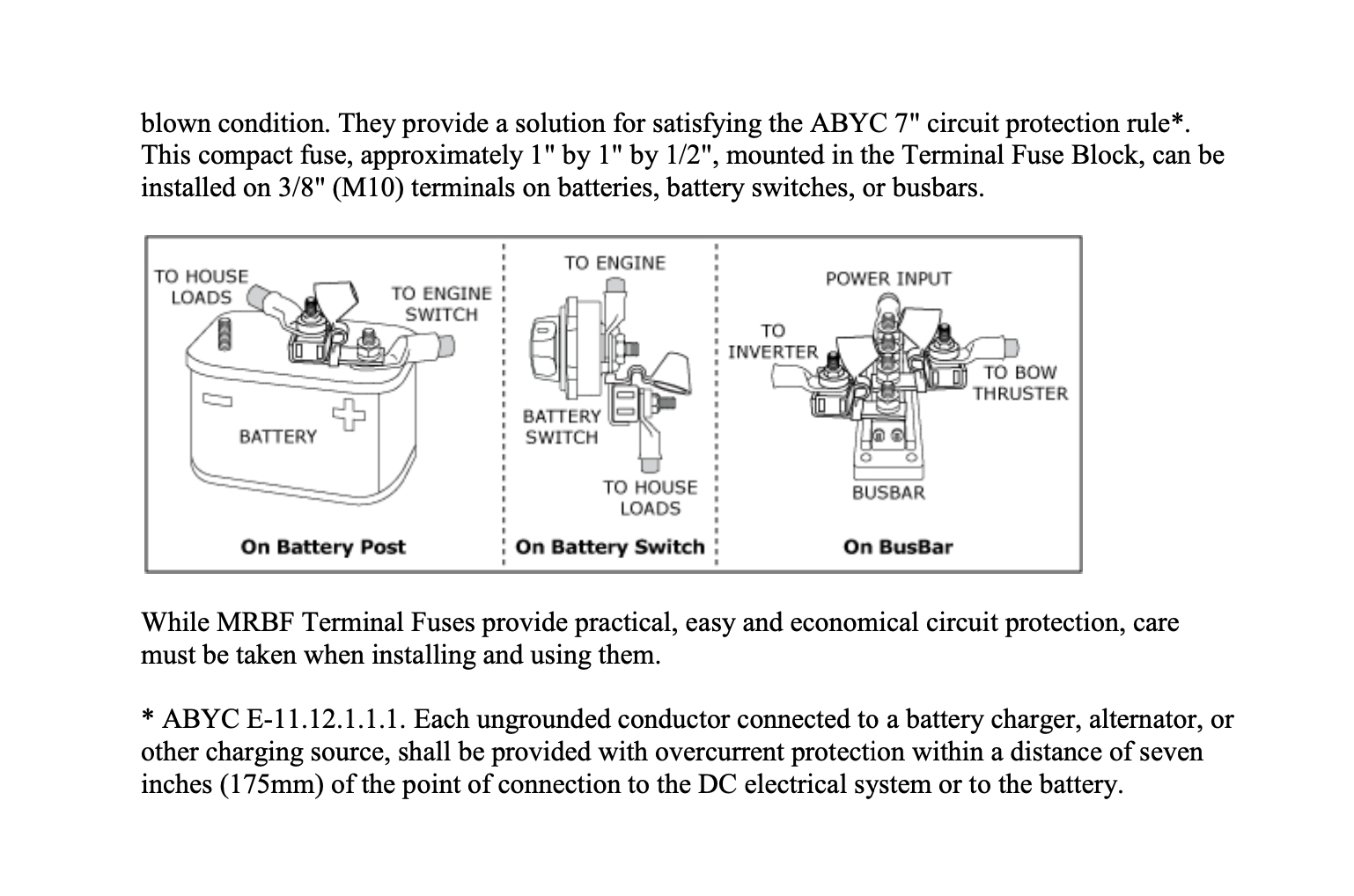

Satisfies ABYC requirements for DC main circuit protection on large battery banks
FEATURES:

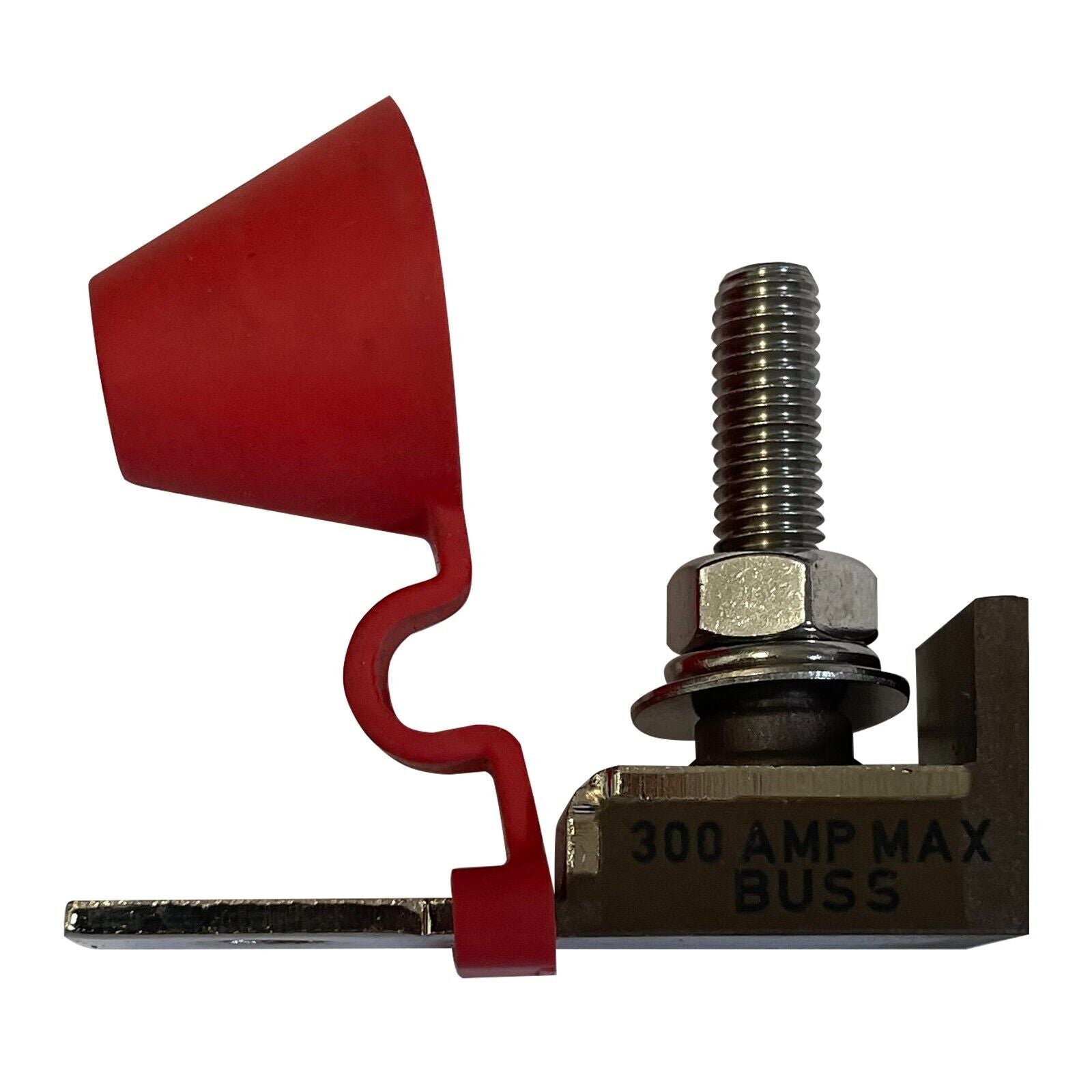

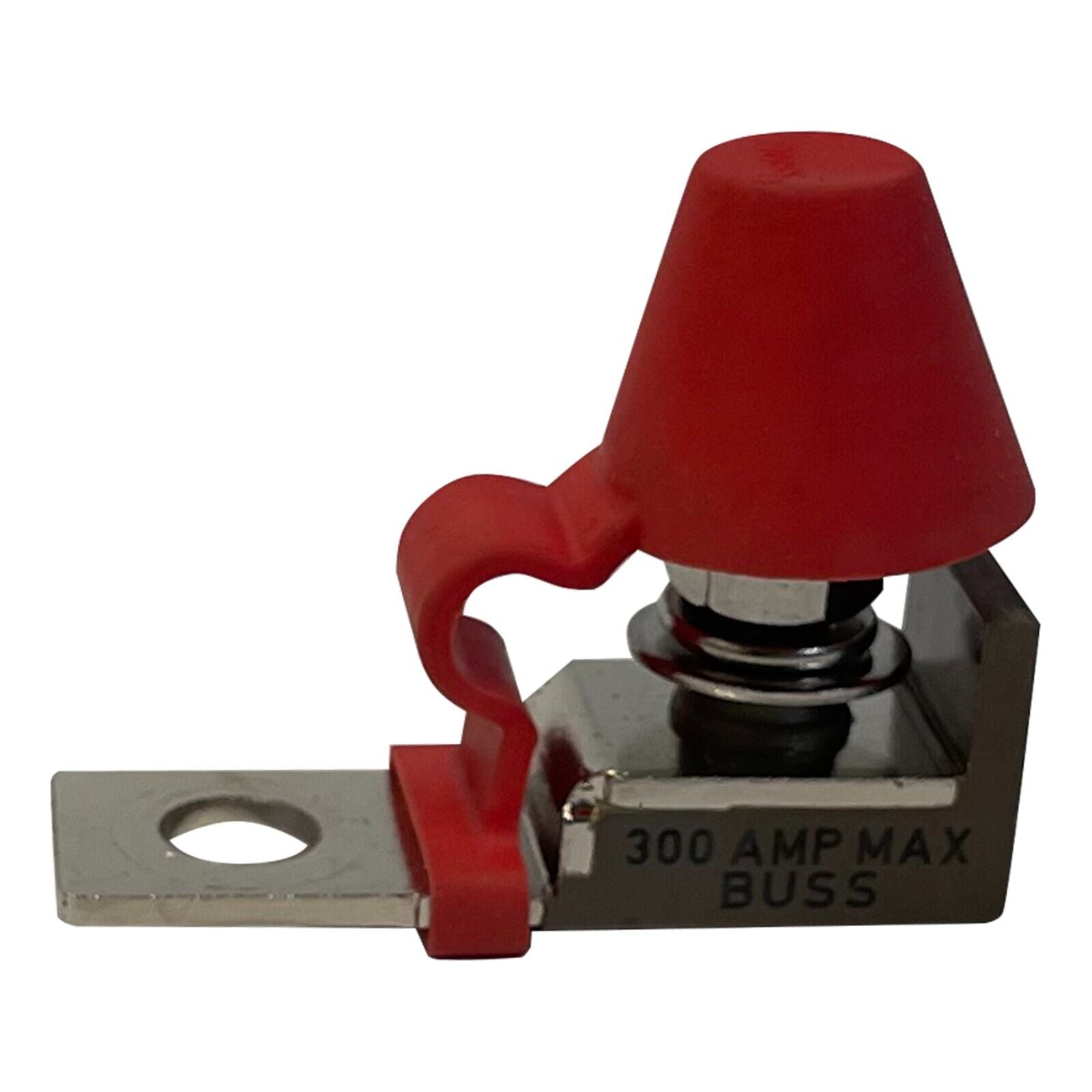

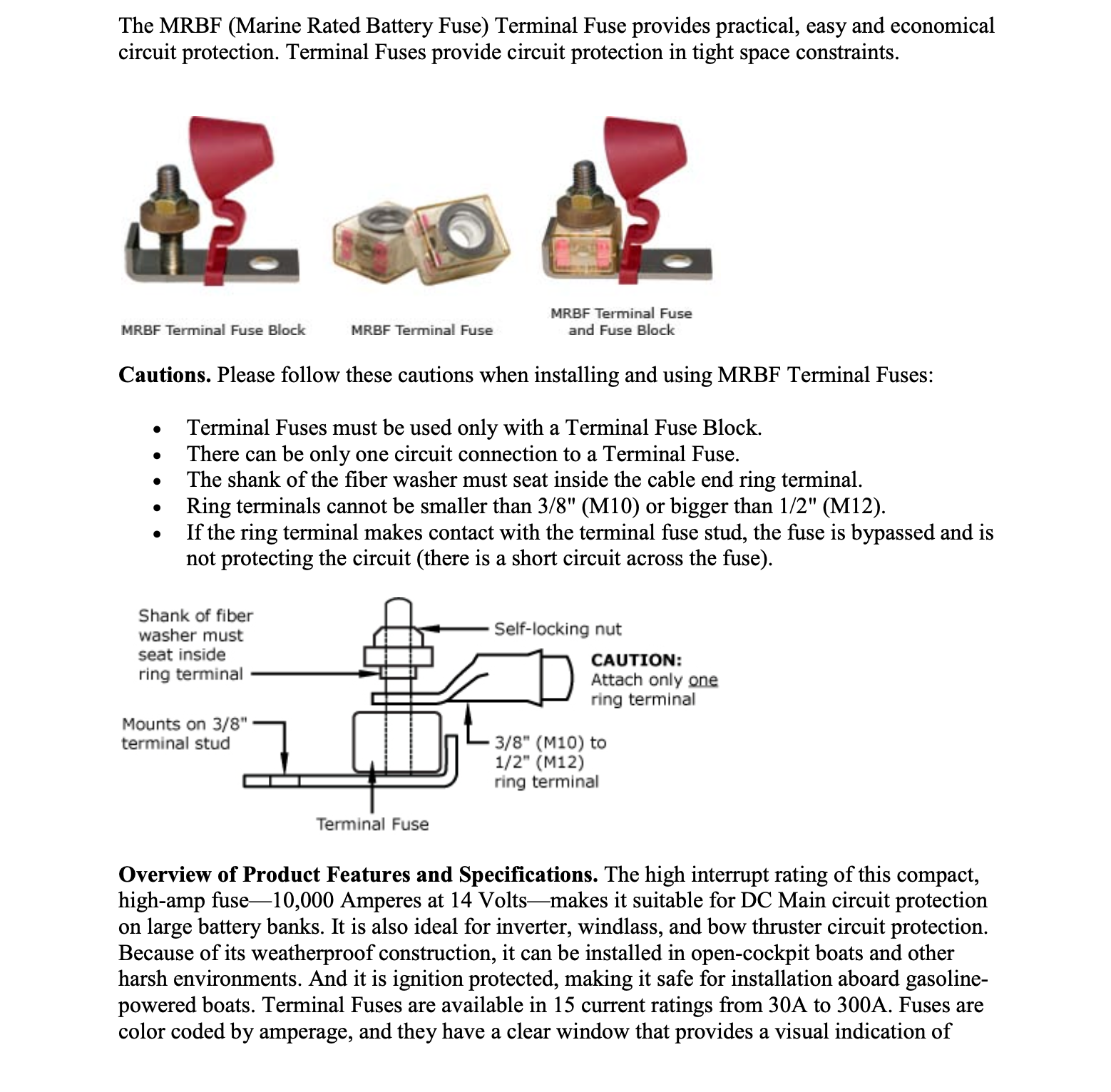

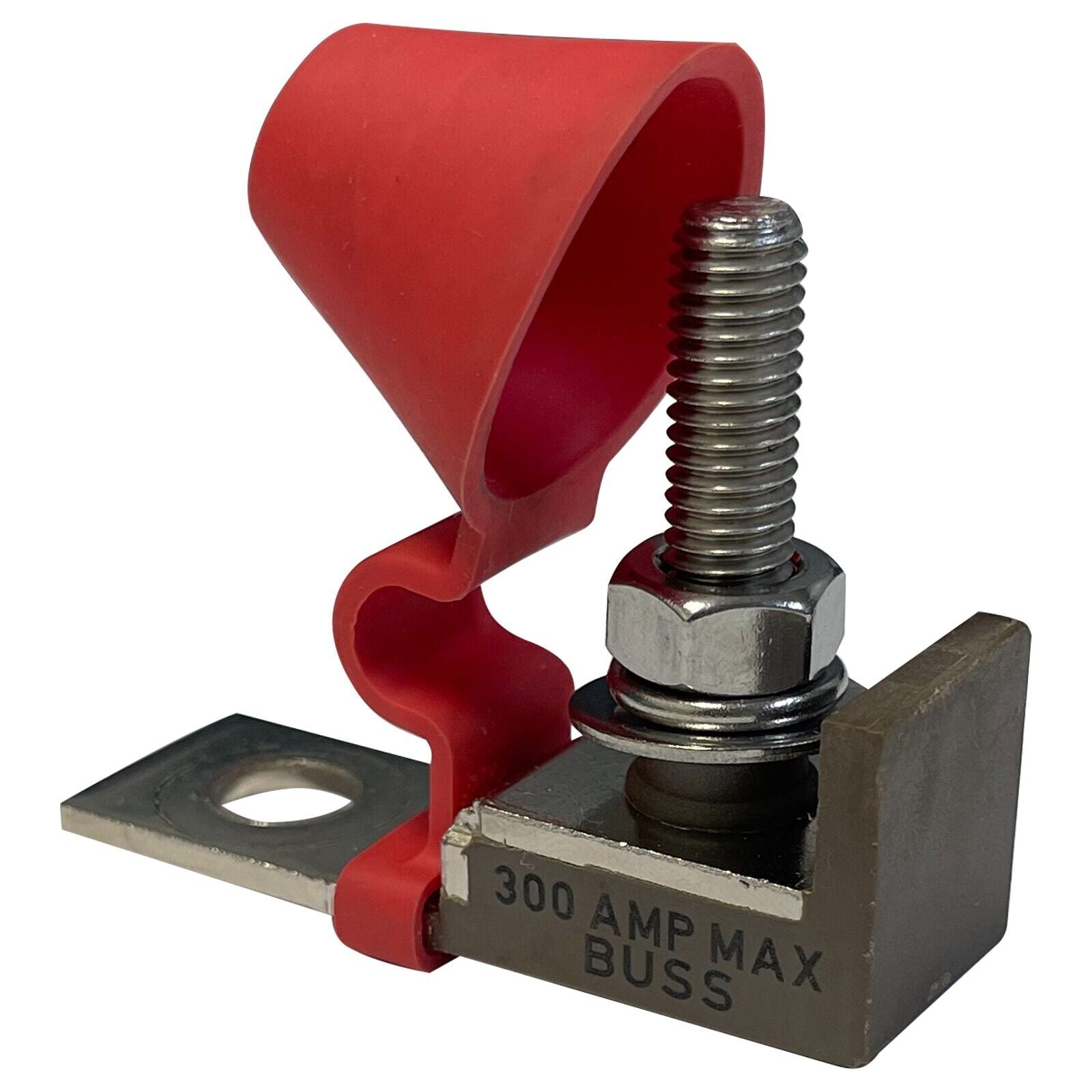

Space-saving ignition protected fuse for 30 to 300 Amp loads. Must use with terminal blocks SPC-5191, EFB-MRBF1, or EFB-MRBF2.
High interrupt rating 10000 Amps @ 14-V DC, 5000 Amps @ 32-V DC, 2000 Amps @ 58-V DC
Clear window - visual indication of blown condition, use for main or auxiliary circuits
Terminal Stud - M8 (5/16")
Weight - 0.16 lb (0.07 kg)
Marine rated battery fuses are designed to protect the main circuit on large battery banks. They are easy to install and have been built with longevity in mind. Each fuse slides onto the post of a marine rated battery fuse block. They are available in fuses amperages ranging from 30 amp all the way to 300 amp. Choosing the right marine rated battery fuse is not an easy task. Contact a Pacer expert today with any questions that you may have.
COMPLIANCES:
Meets IP66, SAE J1711
Satisfies ABYC requirements for DC main circuit protection on large battery banks
FEATURES:
Space-saving ignition protected fuse for 30 to 300 Amp loads. Must use with terminal blocks SPC-5191, EFB-MRBF1, or EFB-MRBF2.
High interrupt rating 10000 Amps @ 14-V DC, 5000 Amps @ 32-V DC, 2000 Amps @ 58-V DC
Clear window - visual indication of blown condition, use for main or auxiliary circuits
